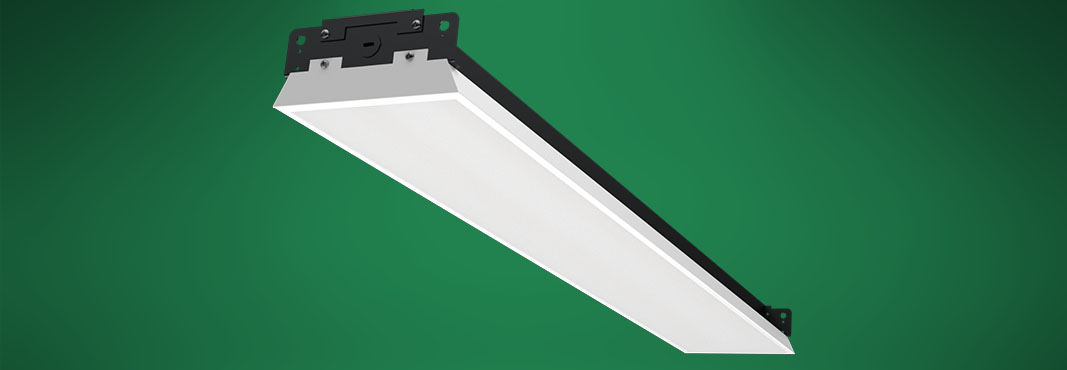

HARRIS LED PATRIOT SLIMLINE™ High Bay, Gen 1 | HBHS1

Features

• Lightweight aluminum body allows for optimal thermal management and ease of handling during installation
• 4’ and 8' narrow I-frame design
• Open design with optional acrylic frosted lens to reduce glare and enhance low bay applications
• Rigid and suspended mounting options
• Optional aisle illumination performance package: 95% reflectance polished aluminum

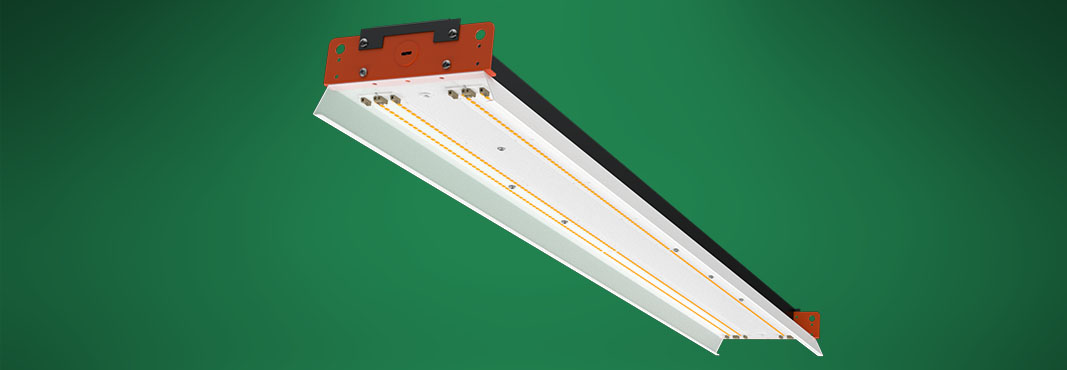

• Emergency fixture identifier option. Ends painted orange for easy identification from the floor. Primarily for use on fixtures with battery backup and fixtures connected to an emergency circuit

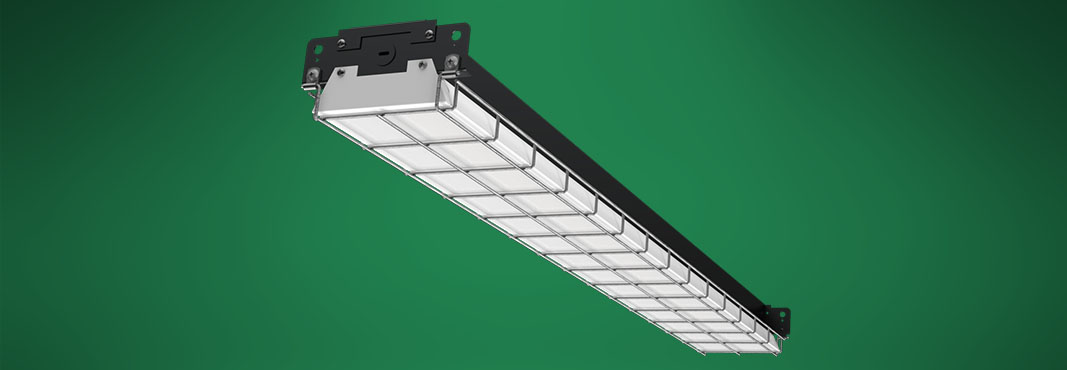

• Fixture wireguard available
• 10 kA surge protection available
• Factory installed end mounted controls available

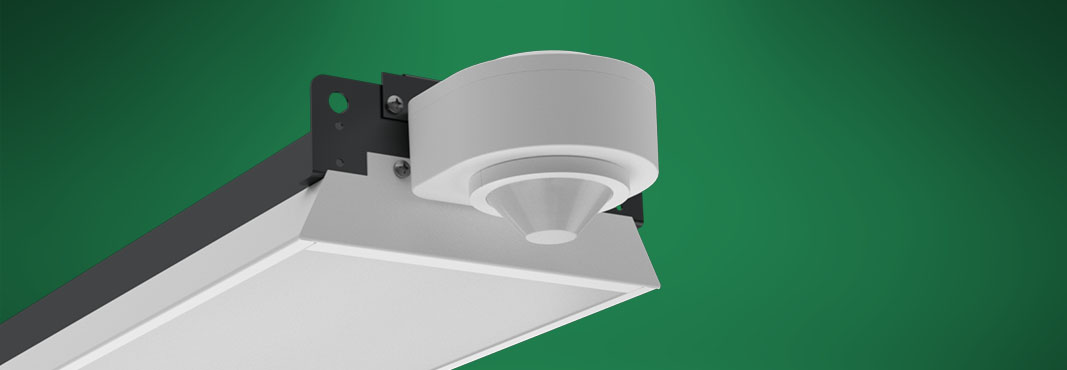

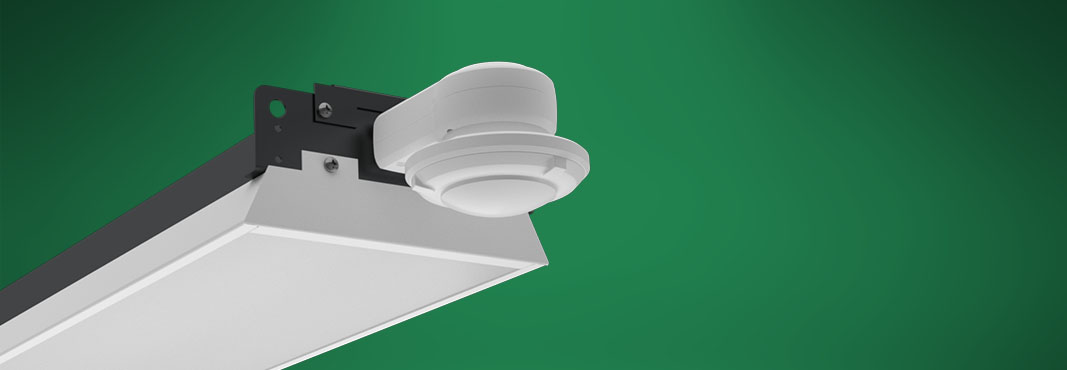

• Plug 'N Play end mounted field installed sensors available

Electrical

• Available in 120v-277v, 347v and 480v
• Factory wired for full dimming (0-10v) or ON/OFF applications

Operating Range

• Varies depending on type. See data sheet for more information.

Certifications & Listings

• UL/cUL listed for damp locations
• Buy American Act compliant

Rated Life

• Varies depending on type. See data sheet for more information.
