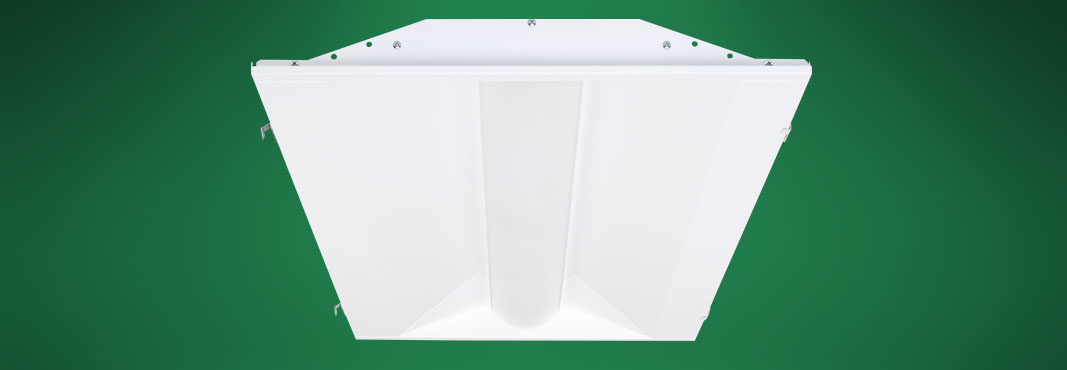

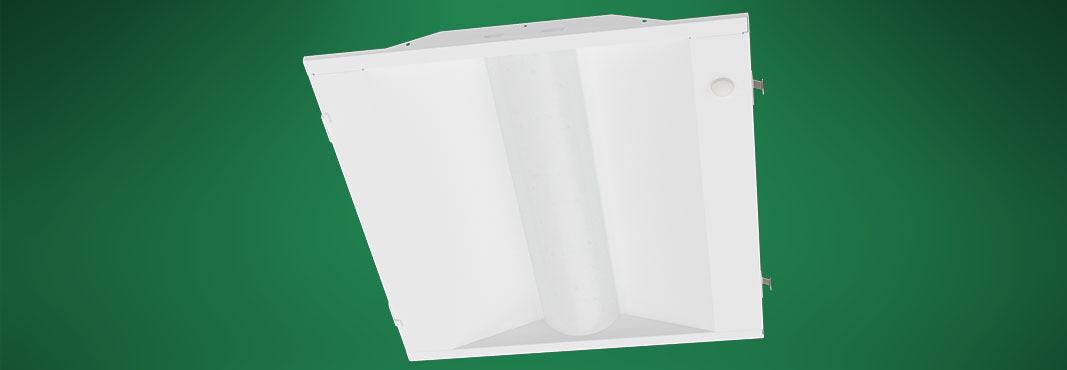

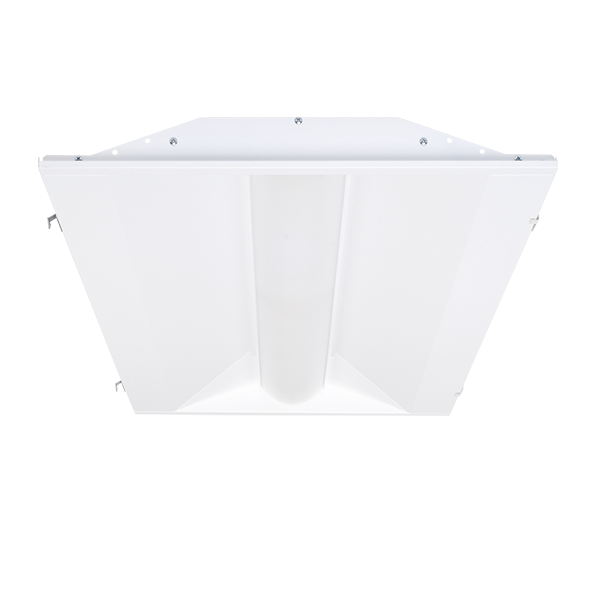

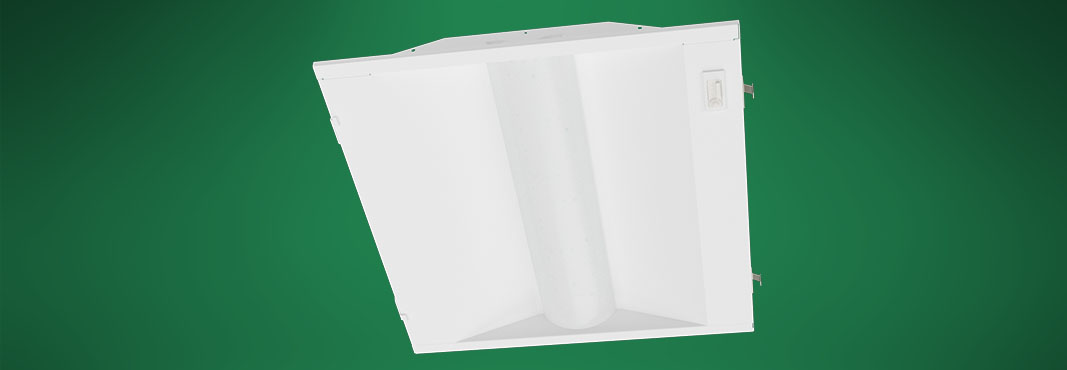

HARRIS LED LDR® Troffer Retrofit, Gen 2 | LDRE2

  • ARRA (Buy America Compliant)
  • DLC Premium
  • UL Listed

Overview

The industry’s first patented LED troffer retrofit contained within the door frame that installs in as little as a few minutes and with minimal disruption to the workplace. Retrofits existing 1' x 4', 2’ x 2’ and 2’ x 4’ T8/T12 fluorescent troffers.

Specifications

Features

• Ultra-light, highly efficient troffer retrofit solution
• Installs in a few minutes
• Low environmental impact due to energy efficiency
• Multiple bracket options to fit various application requirements
• Title 24 compliant seismic cable kit option
• Lightweight, white painted aluminum body for better thermal dissipation
• LDR® fits most existing fluorescent troffer fixtures with either prismatic lens or parabolic louvers
• Matte finish, acrylic contour lens diffuses glare in the work environment
• Various integrated controls offered

Electrical

• Available in 120v-277v and 347v
• Full dimming (0-10v) and step dimming available
• Lutron dimming drivers require an existing Lutron® Ecosystem

Operating Range

• 0°C - 45°C (32°F - 113°F)

Control & Sensor Options

• Factory installed control and sensor options
• Control and sensor options are available to be installed in the field
• Manual programming sensor
• Remote programming sensor
• Remote programming with zoning
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• Patented LDR® design
• UL classified
• Buy American Act compliant
• DesignLights Consortium™ Premium V5.0 qualified luminaire as of 6/30/22

Rated Life

• 100,000 hours L70
