HARRIS LED Troffer, Gen 1 | LTHE1

(This product is not currently available)
  • ARRA (Buy America Compliant)
  • UL Listed

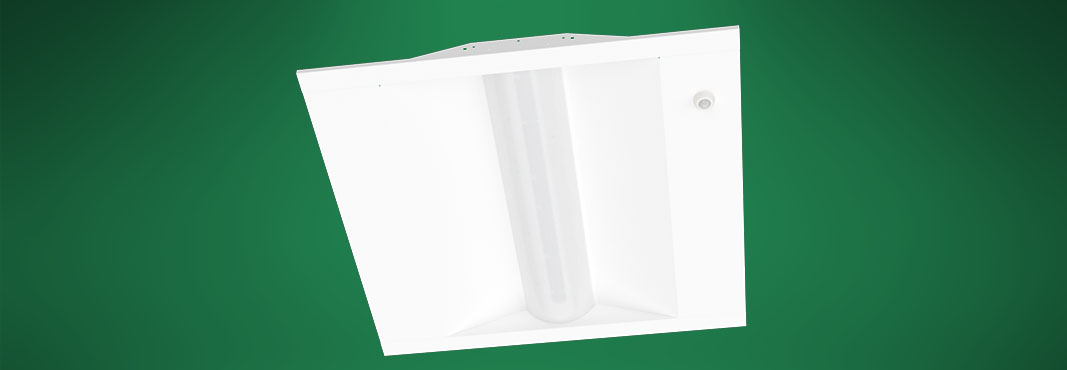

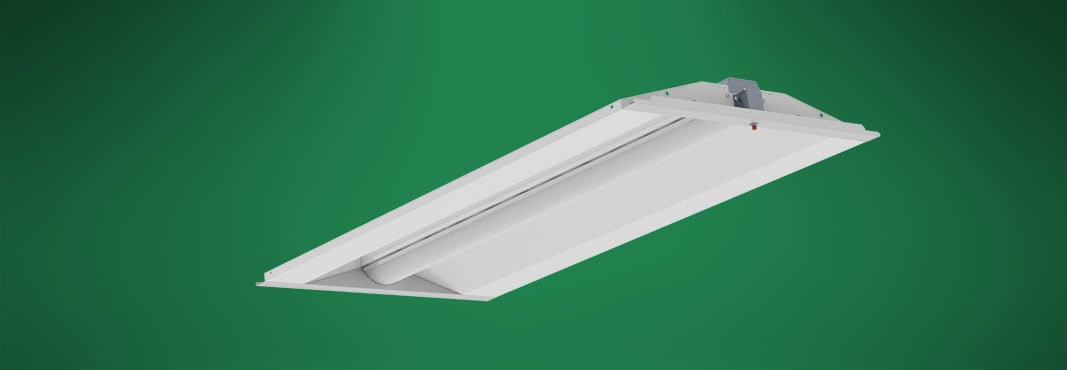

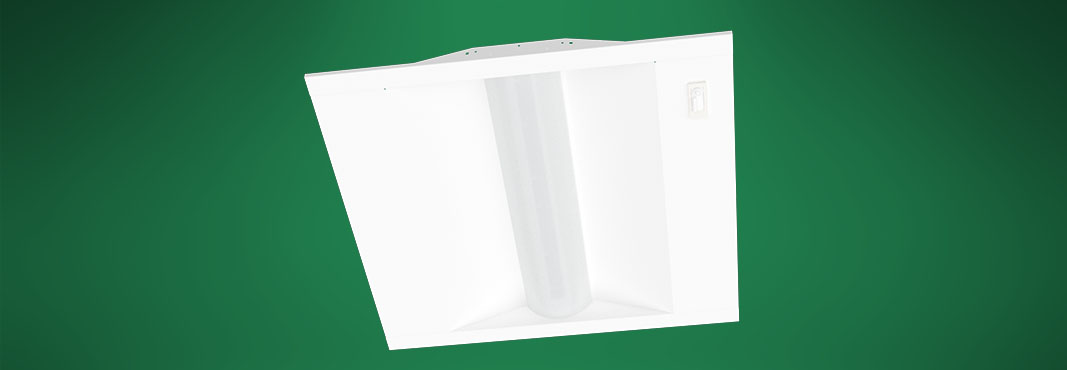

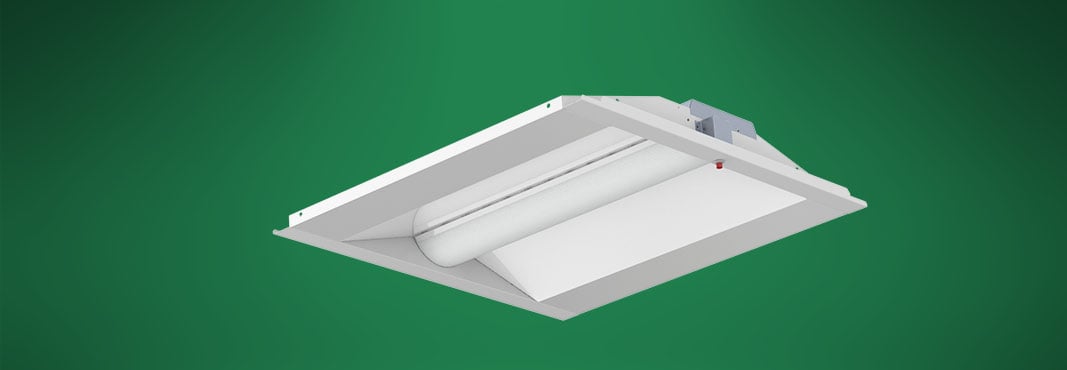

The HARRIS LTHE1 recessed LayIn Troffer is for use in commercial, office, retail, education, healthcare or anywhere T-Bar Lay-In Grid is found in 1' x 4', 2' x 2', and 2' x 4'. This luminaire has the same aesthetic as the LDRE1 troffer retrofit and can be used in the same space. The LTHE1 provides seven light distribution and improved energy savings over commonly used fluorescent troffers.



• Wide light distribution reduces wall and ceiling dark spaces
• Matte white finish fixture ends and acrylic contour lens diffuses glare in the work environment
• Antimicrobial Britex™ finish available option
• Integrated sensor option fully assembled at factory
• IoT ready fixture with various wireless sensor and control options
• Energy efficient with low environmental impact
• Title 24 compliant with seismic cable kit option


• Available in 120v-277v
• Hardwired fixture
• Full dimming (0-10v) and step dimming available
• Lutron® dimming drivers require an existing Lutron® control system

Operating Range

• 0°C to 45°C (32°F to 113°F)

Certifications & Listings

• UL/cUL listed for damp locations
• Buy American Act compliant
• DesignLights Consortium™ Standard V5.0 qualified luminaire as of 6/30/22

Rated Life

• 100,000 hours L70
