HARRIS LED Multipurpose Linear | MPHL1

  • ARRA (Buy America Compliant)
  • UL Listed

Overview

The HARRIS MPHL1 fixture is ideal for low bay, assembly line, strip, surface mount, continuous run or task options in warehouse and retail environments where linear lighting is needed.

Specifications

Features

• Innovative design and order logic allows for a continuous run. Wire harness option provides left, right, and center electrical connection for continuous run fixtures and provides "quick connect system" between fixtures for labor savings and ease of installation
• Contour frosted lens available to reduce glare and spread light evenly
• White heavy gauge cold rolled steel body and end caps standard
• Plastic end caps available
• Fixture can be surface mounted or suspended mounted

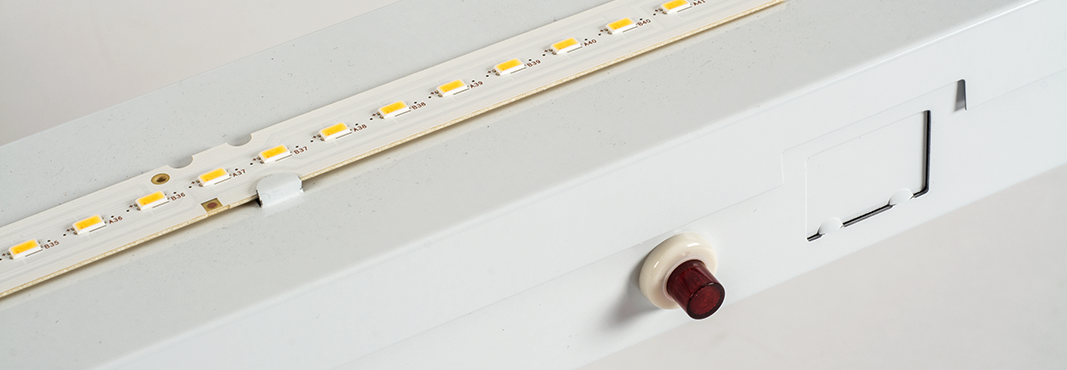

• Battery backup available • Field installed wireguard kit available
• Single or bulk packaging available to suit job installation needs
• 10 kA surge protection available

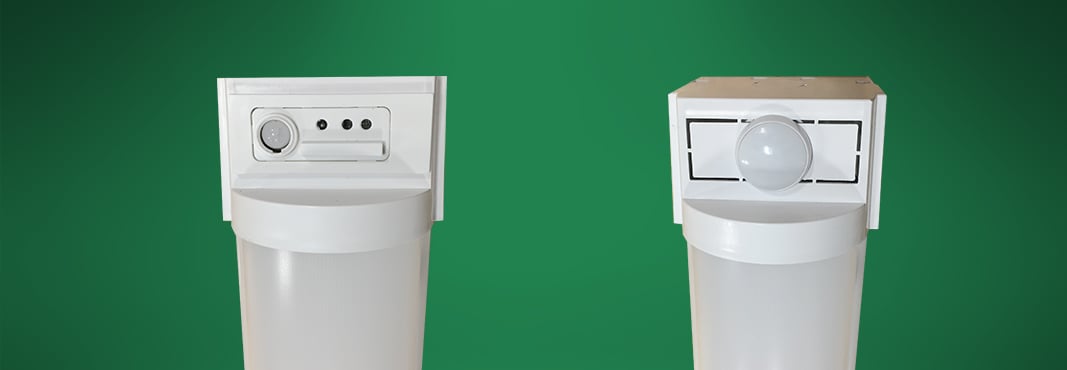

• Factory or field installed controls available

Electrical

• Available in 120v-277v
• Full Dimming (0-10v) drivers

Operating Range

Operating Range: • Varies depending on type. See data sheet for more information.

Control & Sensor Options

• Manual programming sensors
• Remote programming sensors
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• UL/cUL Listed for damp locations
• Buy American Act compliant
• DesignLights Consortium™ Standard qualified luminaire V5.0 qualified luminaire as of 6/30/22

Rated Life

• 100,000 hours L70
