HARRIS LED Strip Luminaire, Gen 1 | SFHC1

  • ARRA (Buy America Compliant)
  • UL Listed


The HARRIS SFHC1 is an ideal luminaire for new construction and retrofit applications. For use in areas such as manufacturing, distribution, warehouse, and retail settings.



• Available in 3’, 4’ and 8’ fixture lengths that can connect in tandem to create electrical raceway
• Various lumen packages available

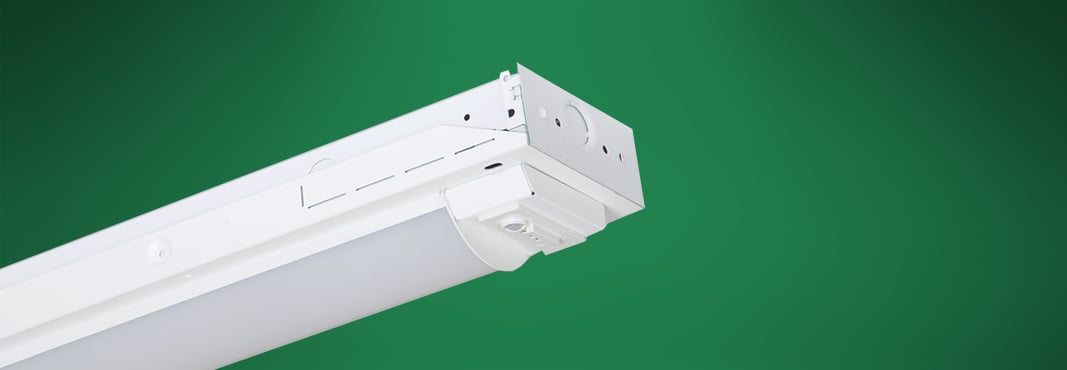

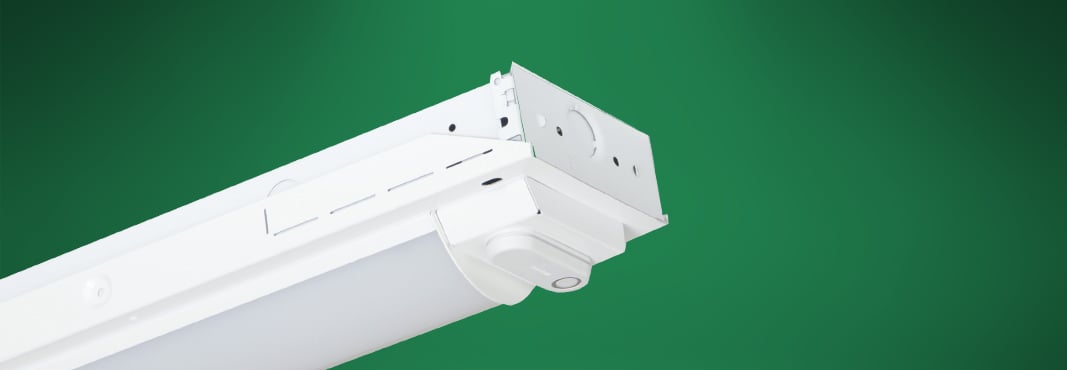

• Factory installed integrated sensors or field installed end mounted sensors available
• Field installed wireguard kit options available
• Fixture comes with tethers to hold cover, enables one-person installation
• Optional frosted acrylic matte contoured lens provides glare diffusion in task application
• Single pack and bulk pack available
• LED light engine is made of lightweight aluminum with pre-coated white finish for better thermal dissipation
• Fixture is designed with various knock outs for ease of connection to electrical power
• Design allows for an easy surface or suspended mount installation of fixture


• Available in 120v-277v
• Full dimming driver (0-10v)

Operating Range

• -20°C to 40°C (-4°F to 104°F)

Control & Sensor Options

• Manual programming sensor
• Remote programming sensor
• Remote programming sensor with zoning
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• UL/cUL listed for damp locations
• Buy American Act compliant

Rated Life

• Varies depending on type. See data sheet for more information.
