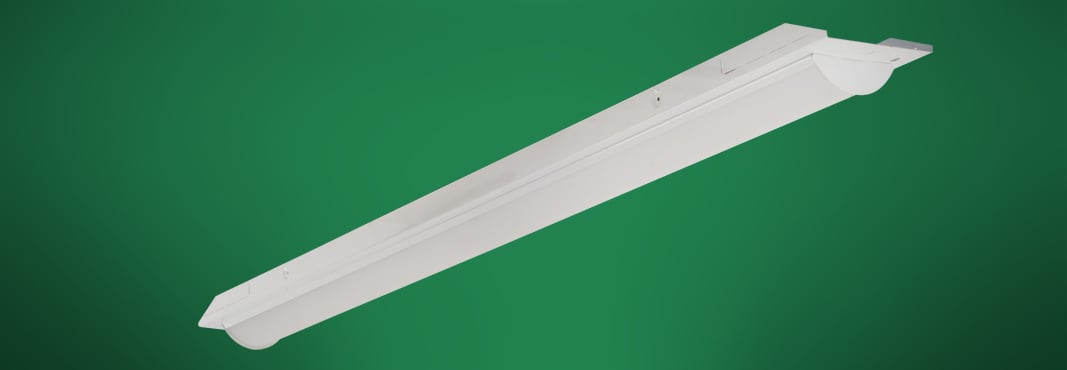

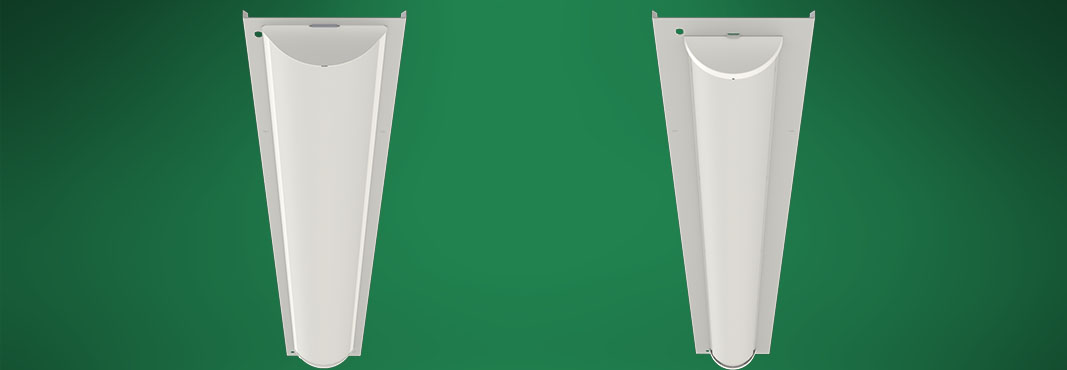

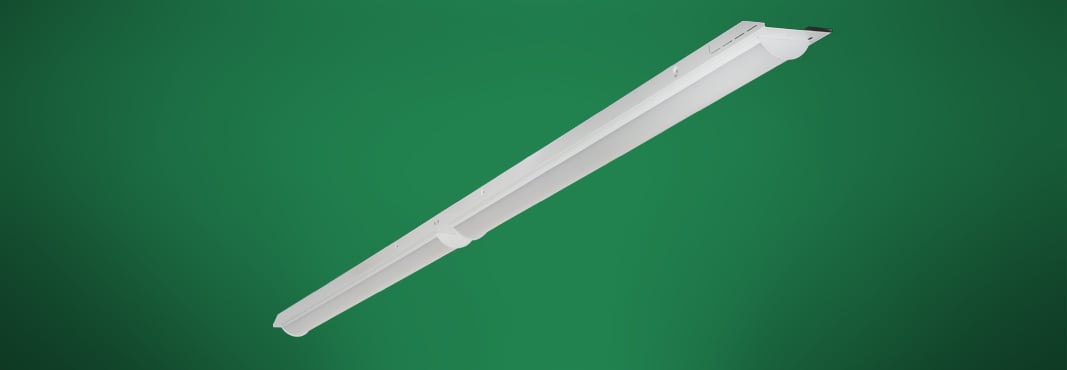

HARRIS LED Strip Retrofit, Gen 1 | SFHR1

  • ARRA (Buy America Compliant)
  • UL Listed

Overview

The HARRIS SFHR1 is ideal for retrofitting existing linear fluorescent strip fixtures to LED. For use in areas such as manufacturing, distribution, warehouse, and retail settings.

Specifications

Features

• Available in 3’, 4’ and 8’ fixture lengths and 4.25” and 5.00” widths
• Various lumen packages available

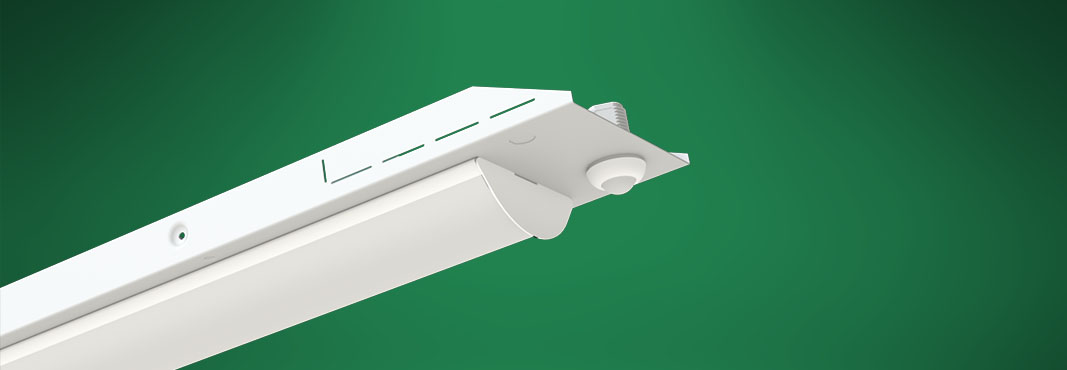

• Factory installed integrated sensors or field installed end mounted sensors available
• Field installed wireguard kit options available
• Fixture comes with tethers to hold cover, enables one-person installation
• Optional frosted acrylic matte contoured lens provides glare diffusion in task application
• Single pack and bulk pack available
• LED light engine is made of lightweight aluminum, with pre-coated white finish for better thermal dissipation

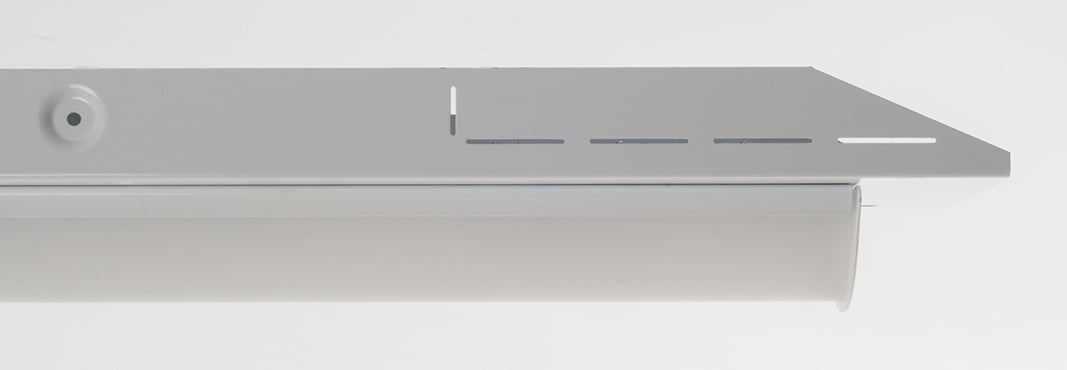

• Retrofit light engine is designed to fit over existing linear fluorescent strip fixture channel with various locations on cover to secure to existing channel

Electrical

• Available in 120v-277v
• Full dimming driver (0-10v)

Operating Range

• Varies based on type. See data sheet for more information.

Certifications & Listings

• UL/cUL Listed for damp locations
• Buy American Act compliant

Rated Life

• Varies based on type. See data sheet for more information.
