APOLLO® LED VaporTight Wide Body, Gen 1 | VTOD1
(This product is not currently available)
Overview
Specifications
Features
• Multiple mounting methods for compatibility in most environments
• Various lumen outputs to meet required light levels
• Offered in both 2' and 4' lengths

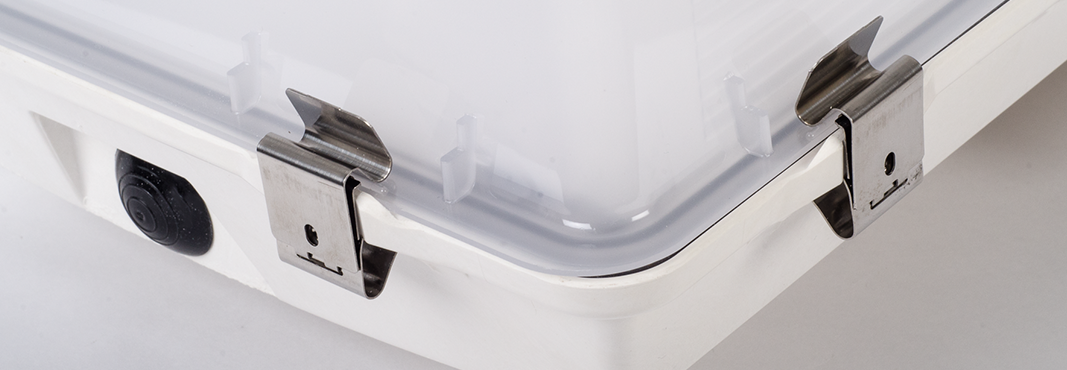

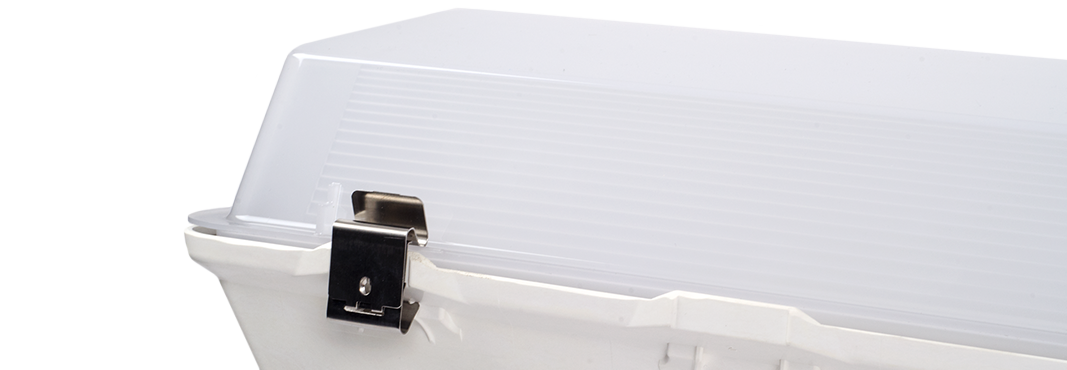

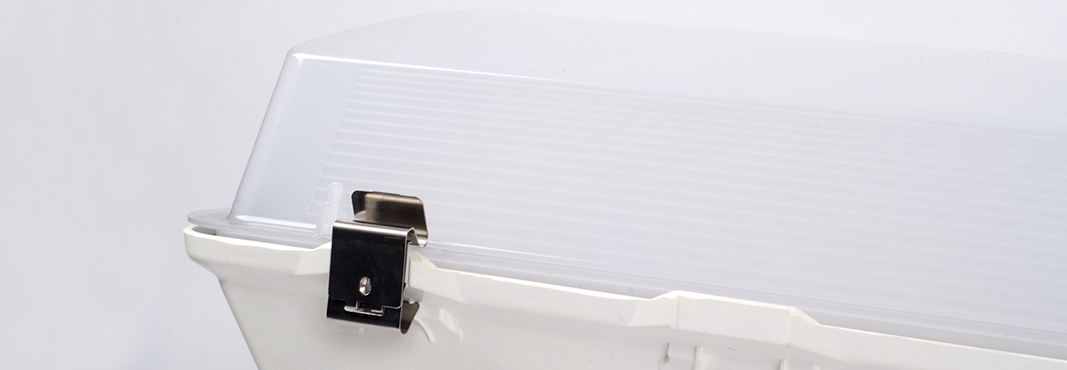

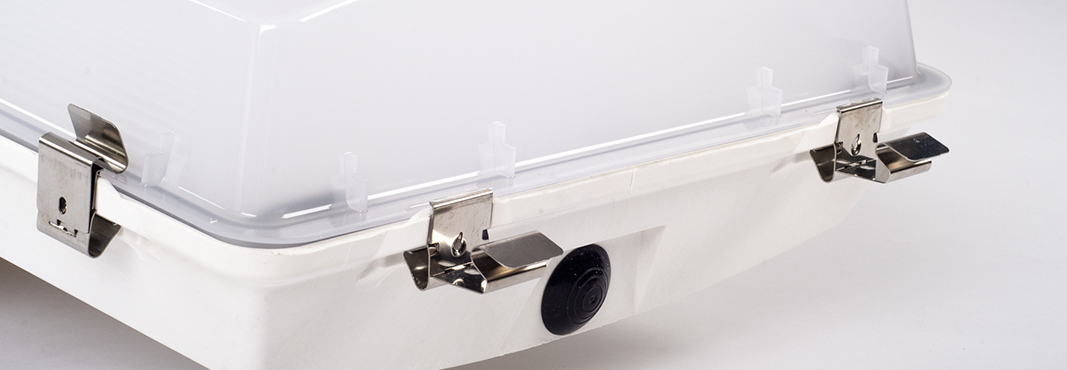

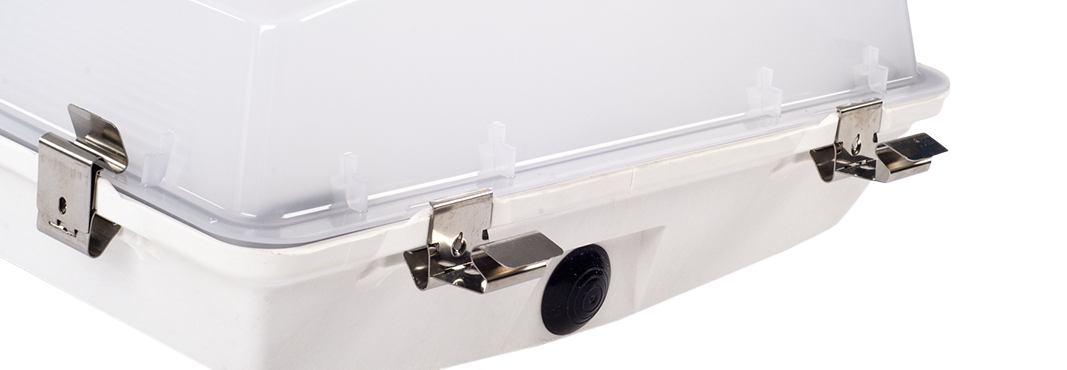

• Stainless steel 316 marine grade latches are standard, stainless steel mounting brackets included with fixture
• Durable, lightweight, white, UL 5VA (f1) reinforced fiberglass body
• Acrylic, impact resistant, shallow ribbed frosted lens
• 10 kA surge protection available
Electrical
• Hardwired power connection standard
• Available in 120v-277v, 347v and 480v
• Factory wired for full dimming (0-10v) or ON/OFF applications
Operating Range
• Varies based on type. See data sheet for more information.
Control & Sensor Options
• Manual programming sensors
• Remote programming sensors
• On site network programming
• Internet/Cloud based network programming
Certifications & Listings
• UL/cUL listed for wet locations • UL 5VA (f1) fiberglass housing
• IP67 rated for 4' fixtures
• IP69 rated for 2' fixtures
• IP66 when using WSxx and WBxx sensors
• IP65 when using WWxx sensor
• NEMA 4X housing
• High pressure wash down up to 1500 PSI
Rated Life
• Varies depending on type. See data sheet for more information.
