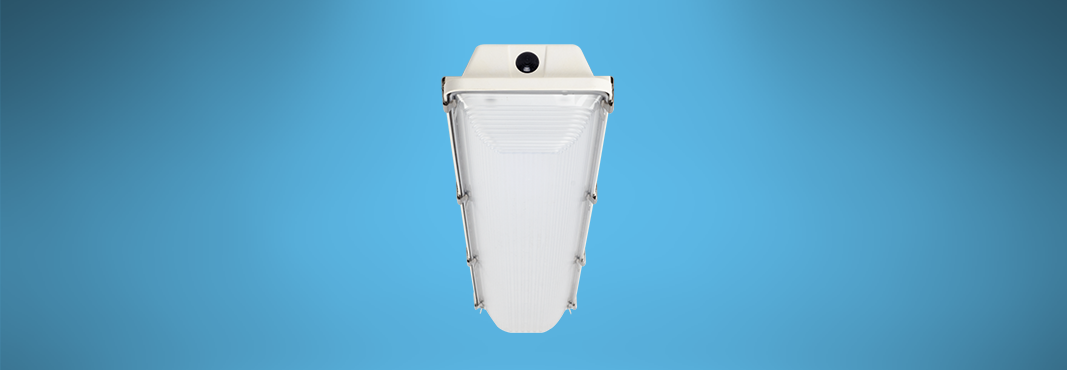

APOLLO® LED VaporTight Narrow Body, Gen 1 | VTON1

  • ARRA (Buy America Compliant)
  • IP65
  • IP66
  • IP67
  • UL Listed

Overview

Durable, versatile high bay fixture suitable for demanding environments that require a watertight seal such as food-processing facilities, milking parlor, wash down applications, and cooler/freezer environments.

Specifications

Features

• Multiple mounting methods for compatibility in most environments
• Various lumen outputs to meet required light levels
• Durable, lightweight, white UL 5VA reinforced fiberglass body

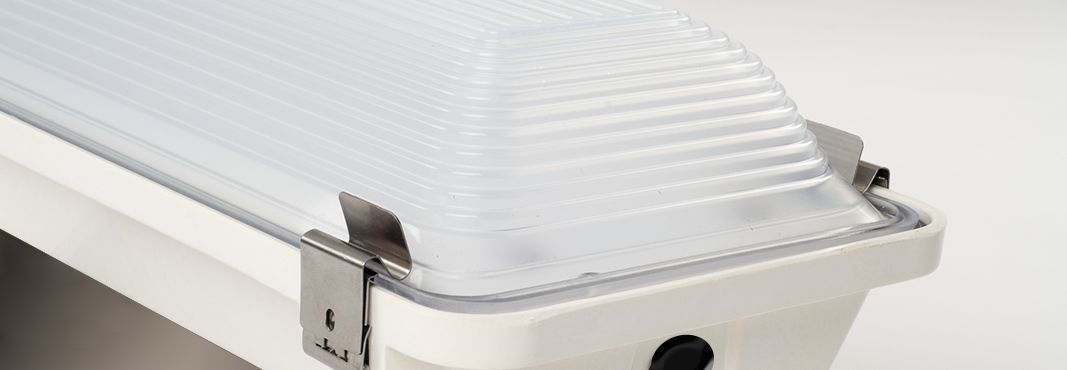

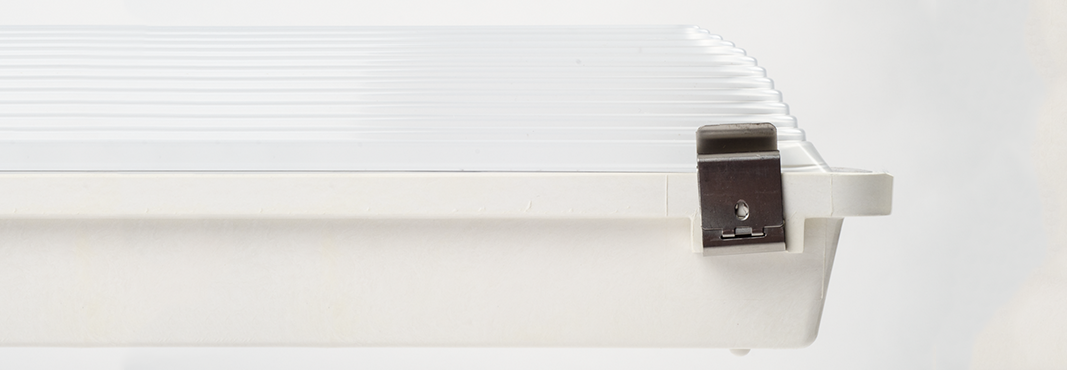

• Stainless steel 316 marine grade latches are standard, stainless steel mounting brackets included with fixture purchase. Additional mounting brackets and hangers available
• Available in 4’ and 8’
• Acrylic, impact resistant, linear ribbed frosted lens
• 10 kA surge protection available

Electrical

• Hardwire power connection standard
• Available in 120v-277v, 347v, and 480v

Operating Range

• Varies based on type. See data sheet for more information.

Control & Sensor Options

• Manual programming sensors
• Remote programming sensors
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• UL/cUL Listed for wet locations
• UL 5VA (f1) fiberglass housing
• IP67 rated
• IP66 when using WSxx and WBxx sensors
• IP65 when using WWxx sensor
• NEMA 4X housing
• High pressure washdown up to 1500 PSI

Rated Life

• Varies depending on type. See data sheet for more information.
