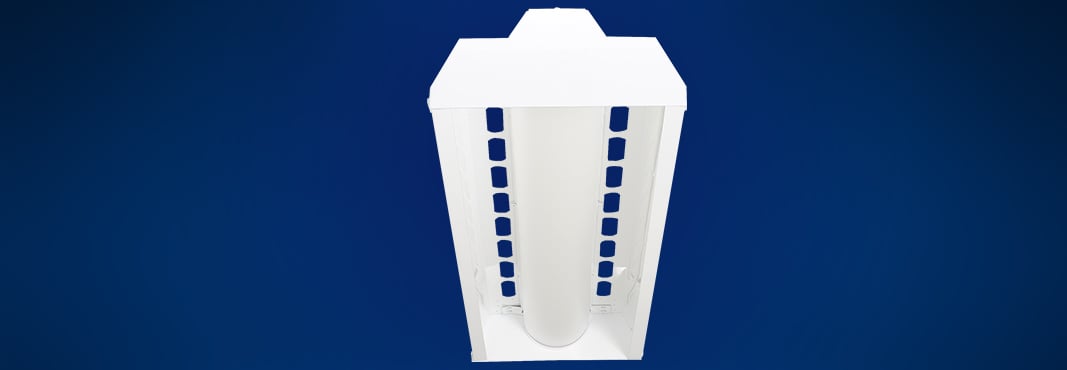

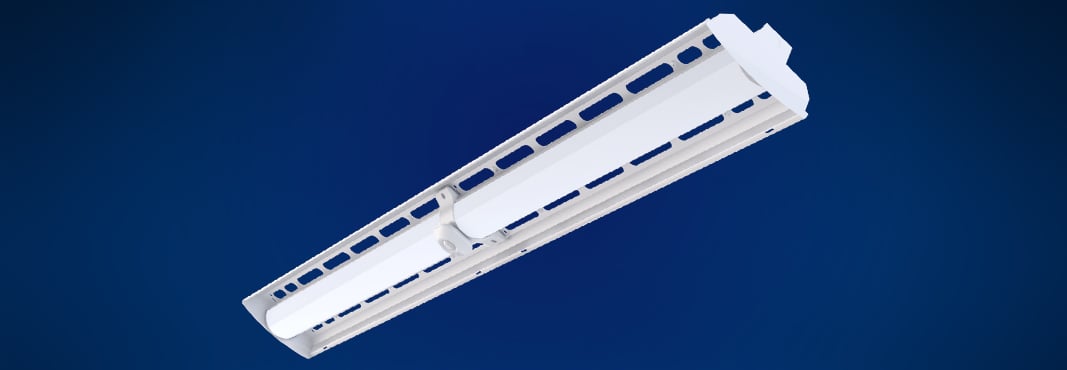

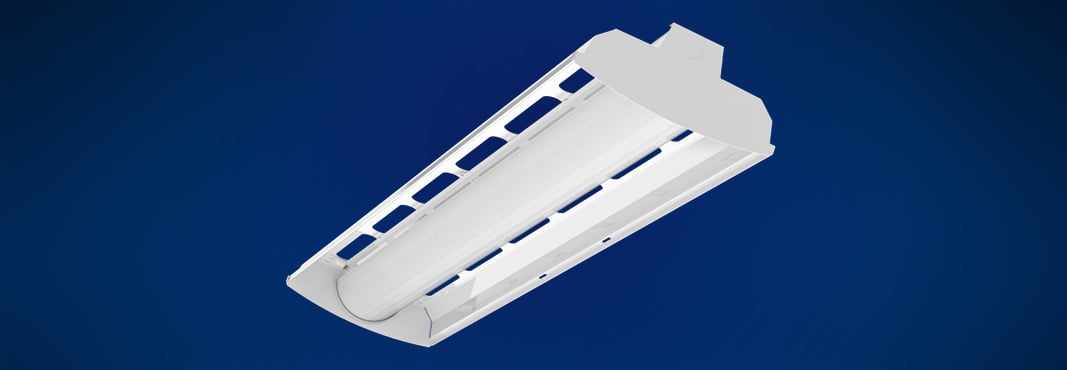

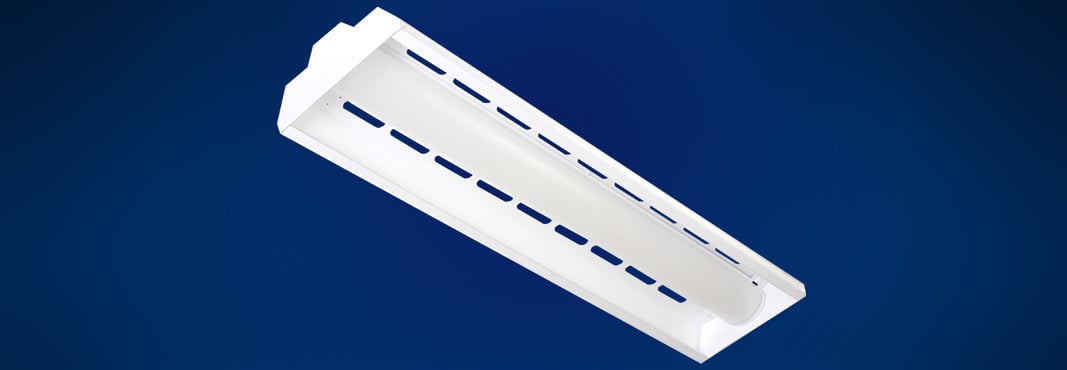

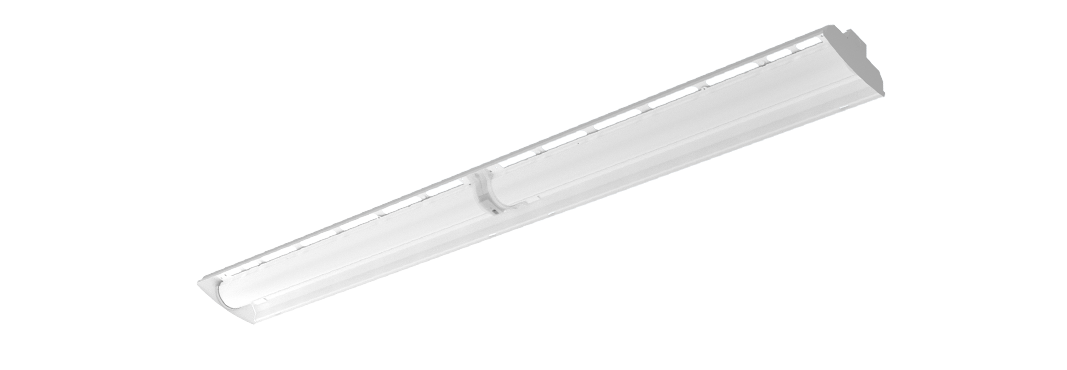

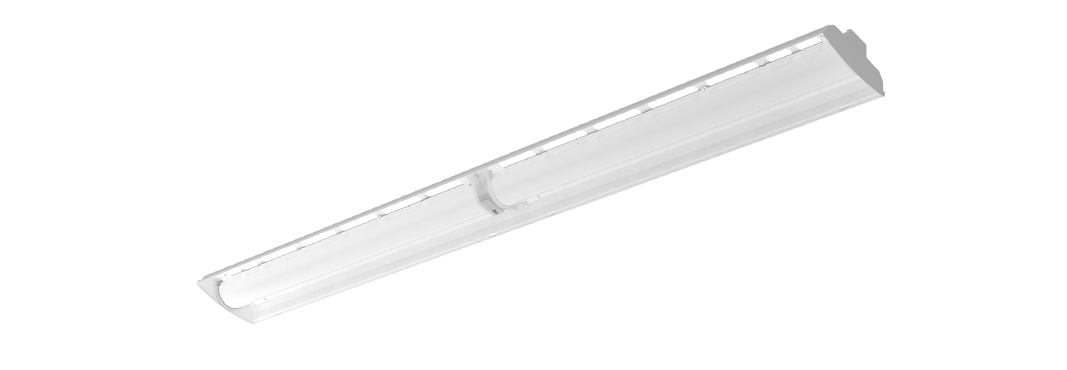

ISON™ Linear LED High Bay Fixture, Gen 2 | LMAF2
Overview
The ISON™ LMAF2 is ideal for use in low bay and high bay applications that require a suspended mounted fixture such as retail, manufacturing, distribution, and warehouses facilities. The low profile design of this LED fixture offers energy savings and low maintenance.
Specifications
Features
• Available in 4' and 8' length fixtures
• Traditional low profile housing design
• Frosted acrylic matte contoured lens available
• Lightweight aluminum body, with pre-coated white finish for better thermal dissipation
• Bulk packaging standard, single pack available
Electrical
• Available in 120v-277v, 374 and 480v
• Standard 0-10v dimming driver
• Power factor >0.9*
• Total harmonic distortion <20%*
*Note: Varies based on option
Operating Range
• -20°C to 45°C (-4°F to 113°F)
Control & Sensor Options
• Factory installed control and sensor options
• On-site network programming
• Internet/Cloud based network programming
Certifications & Listings
• Buy American Act compliant
• UL/cUL listed
• UL damp listed
Rated Life
• Varies depending on type. See data sheet for more information.
