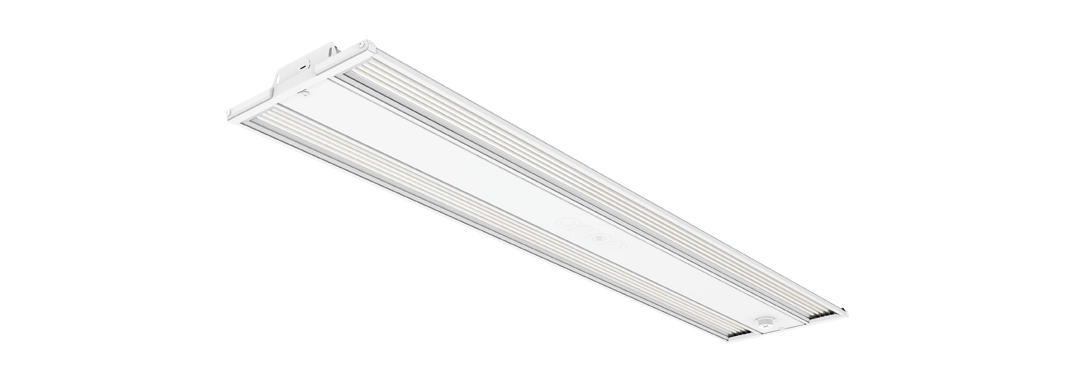

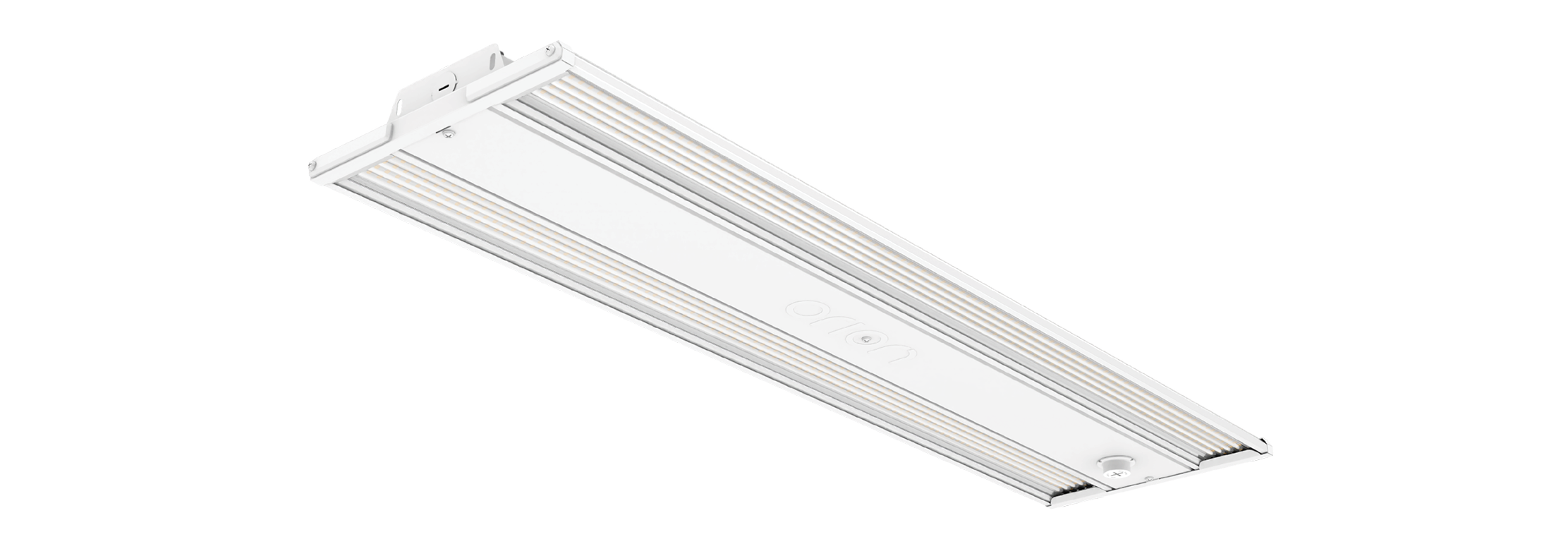

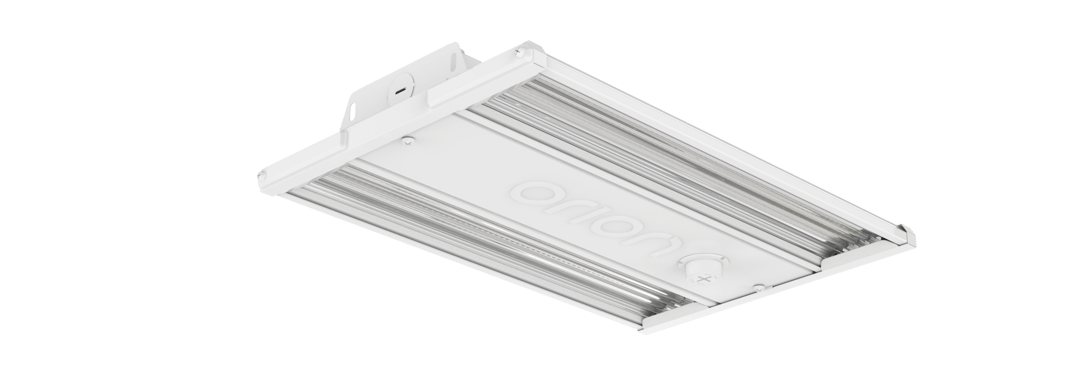

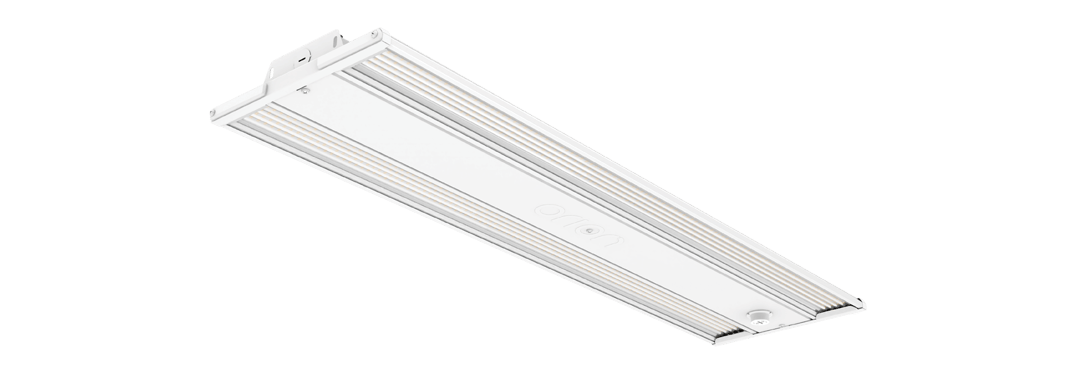

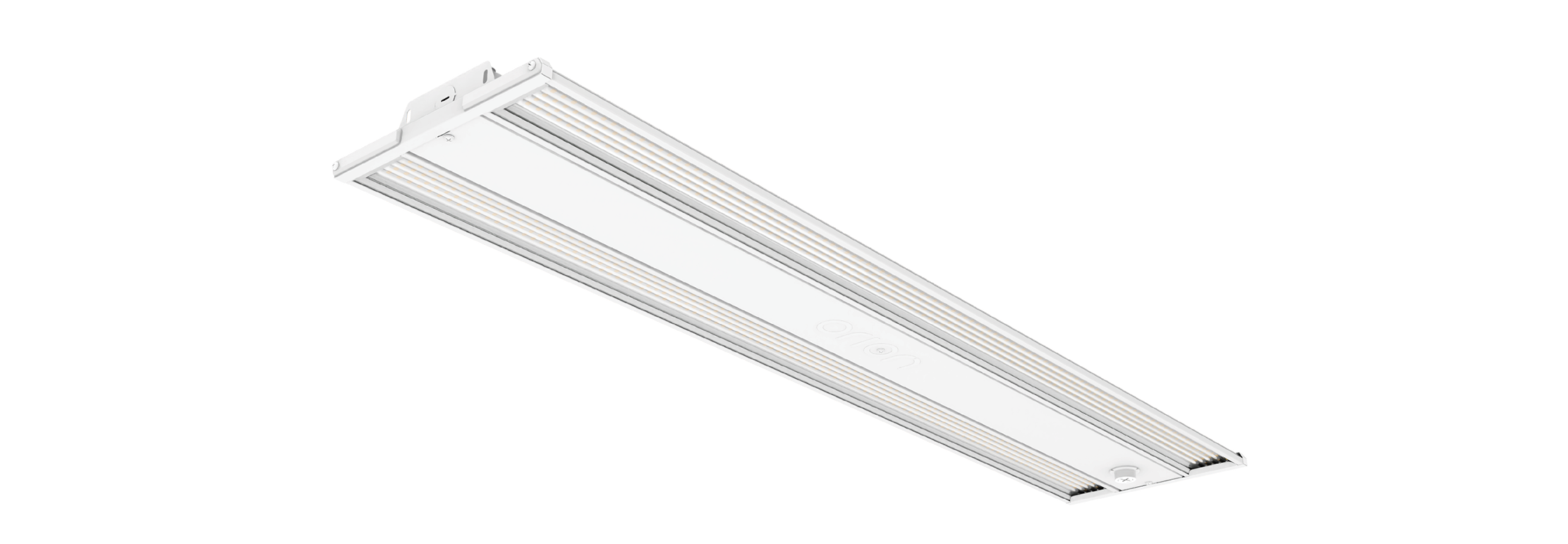

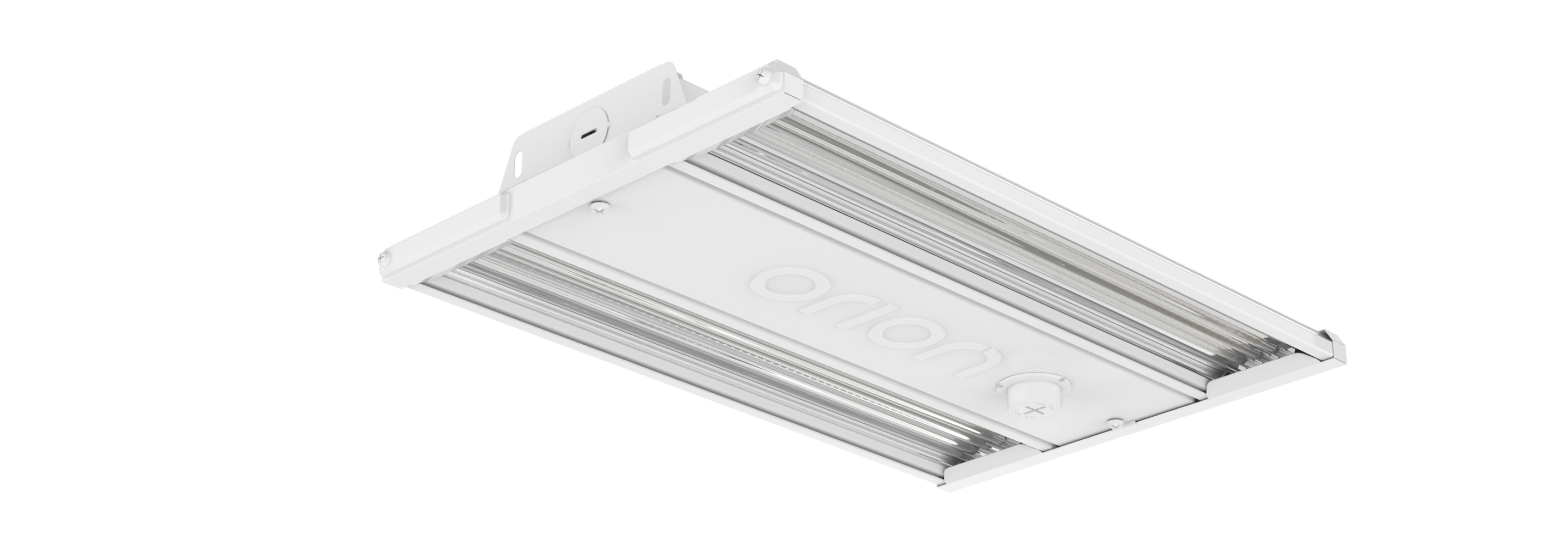

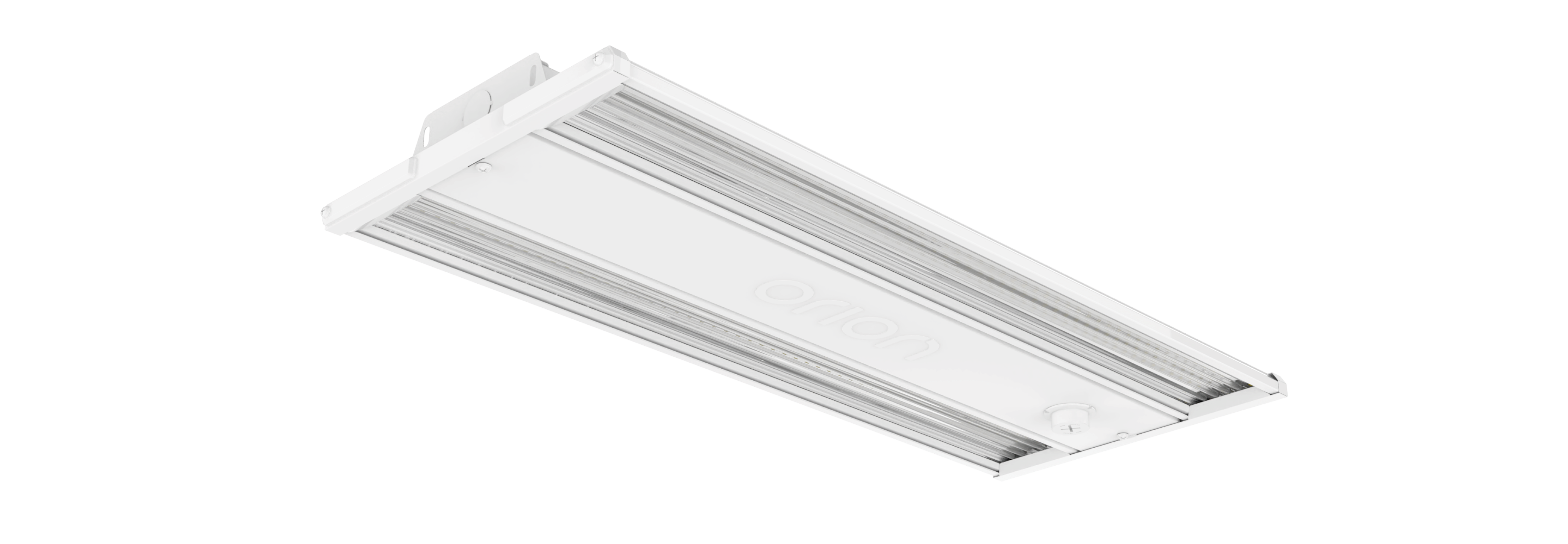

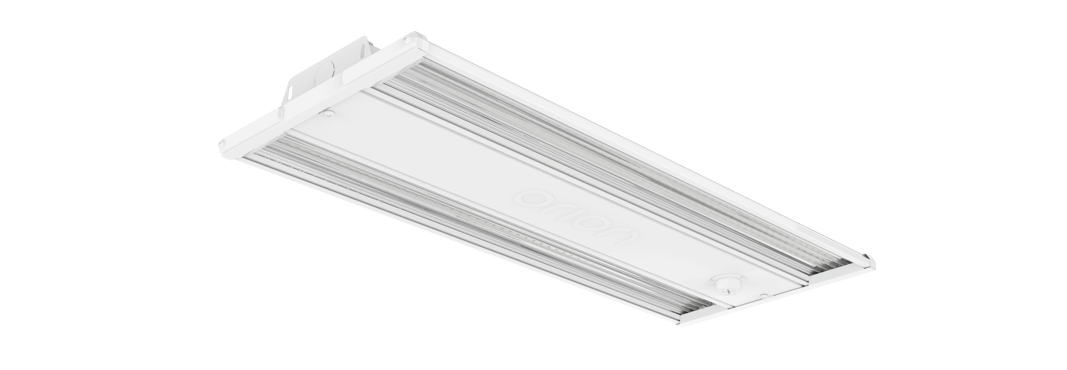

TritonPro® Compact Linear High Bay, Gen 2 | MLHB2
Overview
The MLHB2 is a compact high bay designed to provide a cost-effective solution for new construction or retrofit projects.

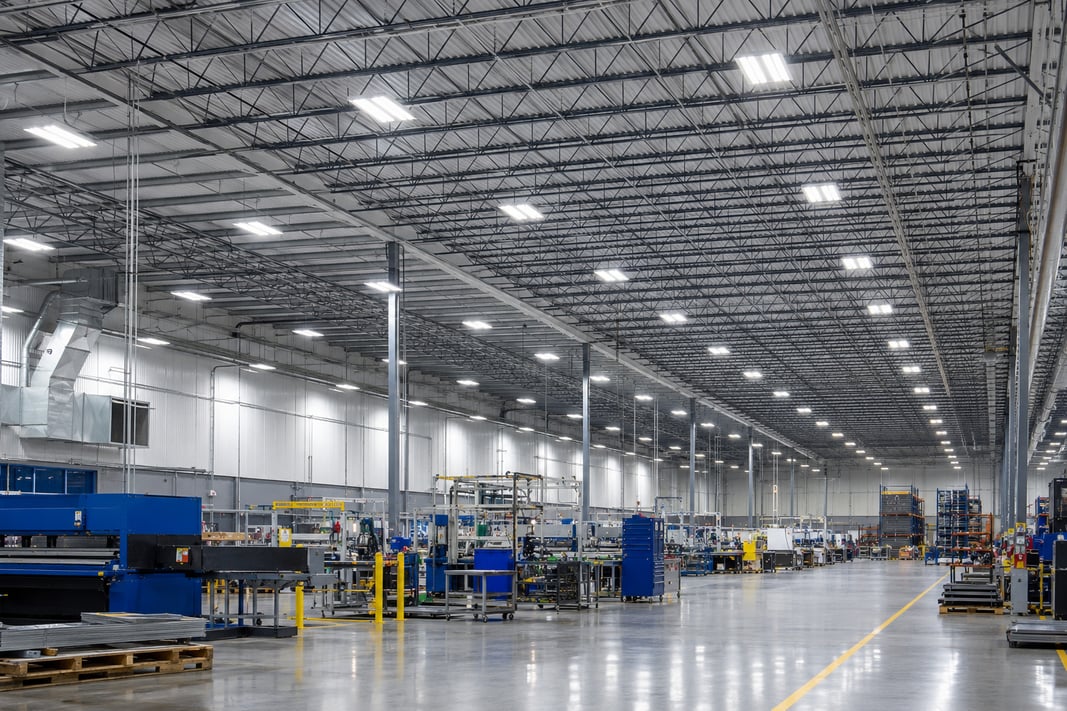

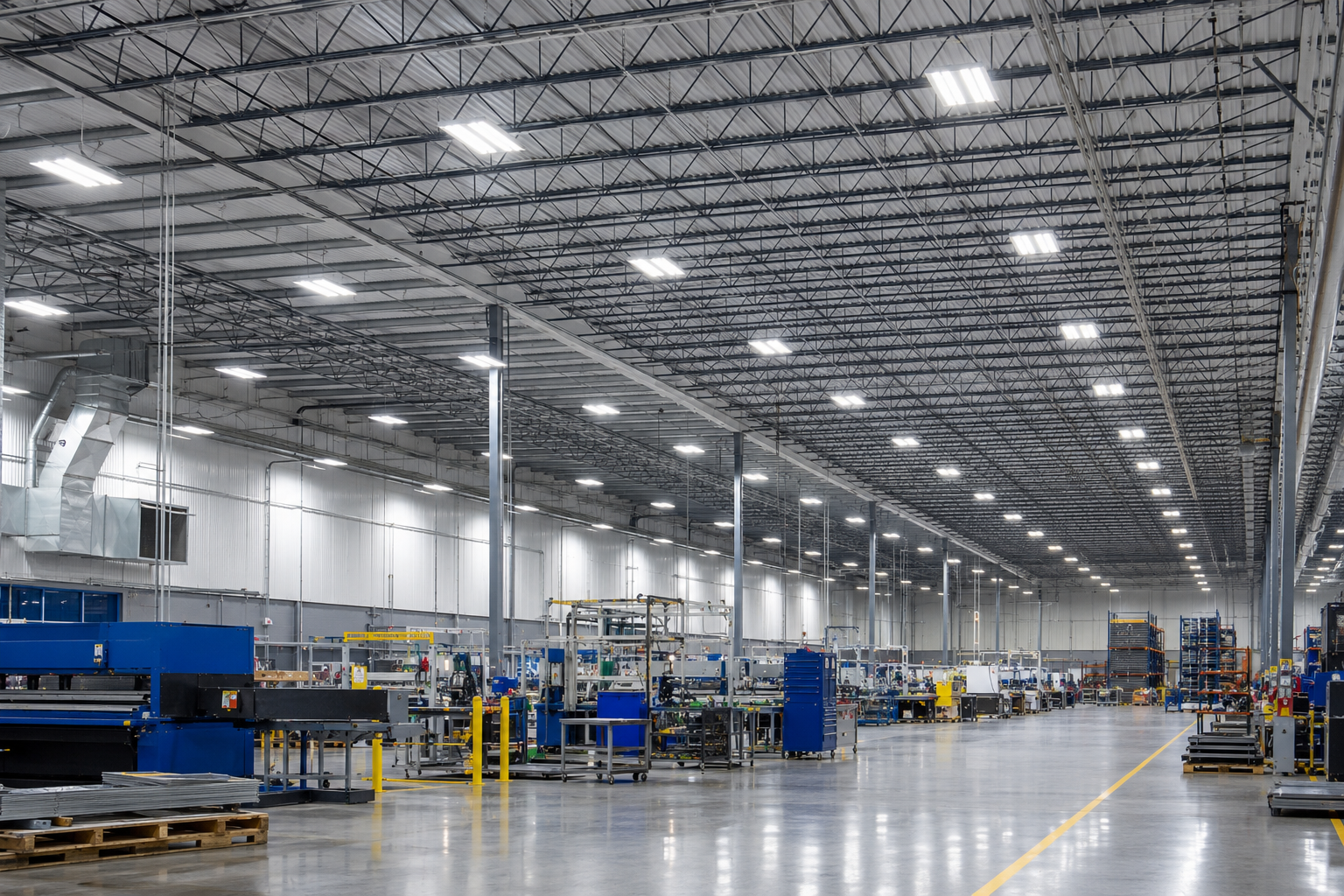

The design and performance of the MLHB2 offer both installation and energy savings for low or high-bay settings in industrial, commercial, and retail applications.
Efficacy up to 170LPW for significant energy savings.
Specifications
Construction
• Narrow lightweight steel body, along with aluminum extrusions, allows for optimal thermal performance in ambient temperatures up to 60ºC, as well as ease of handling during installation
• Impact‑resistant polycarbonate lenses are offered in wide, medium (reduced glare), and narrow (aisle) distributions
• End cap design supports quick lens changes to modify beam distributions or replace damaged lenses
Electrical
• 120v-277v and 277v-480v driver options come standard with 0-10V dimming
• 6kV/3kA surge protection per ANSI C82.77-5-2015 recommendations
• Field selectable CCT between 4000K and 5000K
Controls & Sensor Options
Additional Options
• Factory and field installable battery backup available
Installation
• Engineered and qualified for use in ambient temperatures up to 60ºC when suspended 18" below the ceiling or for use in ambient temperatures up to 55ºC when surface mounted. Reference operating temperature table on page 7 for specific information.
Fixture Certifications & Listings
• UL/cUL Listed
• UL Damp Listed
• FCC Compliant
• DesignLights Consortium™ premium qualified luminaire
• Not all MLHB2 models are DLC Premium qualified. Visit the DLC QPL for listed classification
