ISON™ LED VaporTight Wide Body NSF/ANSI Standard 2 Certified, Gen 2 | VTOD2

  • BAA Compliant
  • DLC Standard
  • IP67
  • IP69
  • NSF
  • UL Listed
  • UL Wet Location

Overview

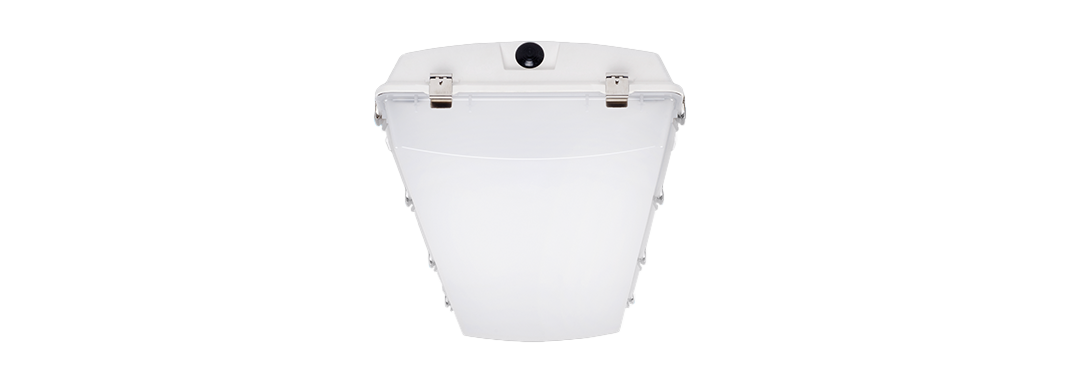

An NSF/ANSI Standard 2 product, this vaportight fixture is durable and versatile best suited for demanding environments that require a watertight seal such as food-processing facilities, milking parlor, wash down applications and cooler/freezer environments.

Specifications

Features

• Offered in both 2' and 4' lengths

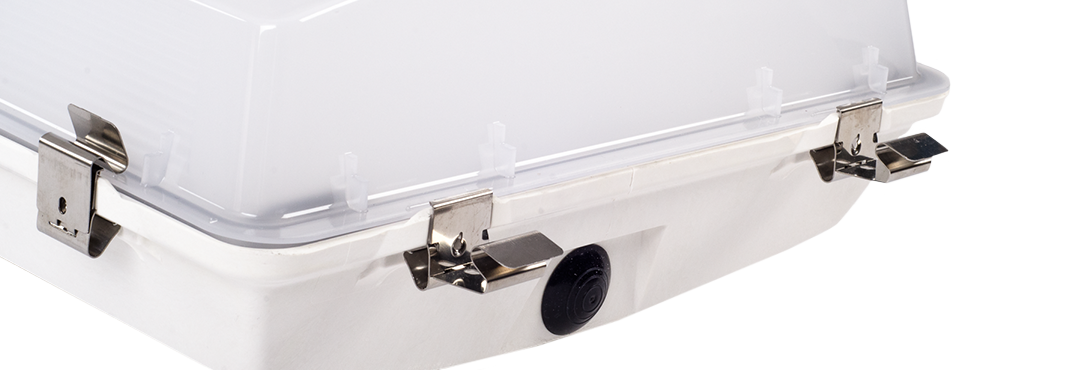

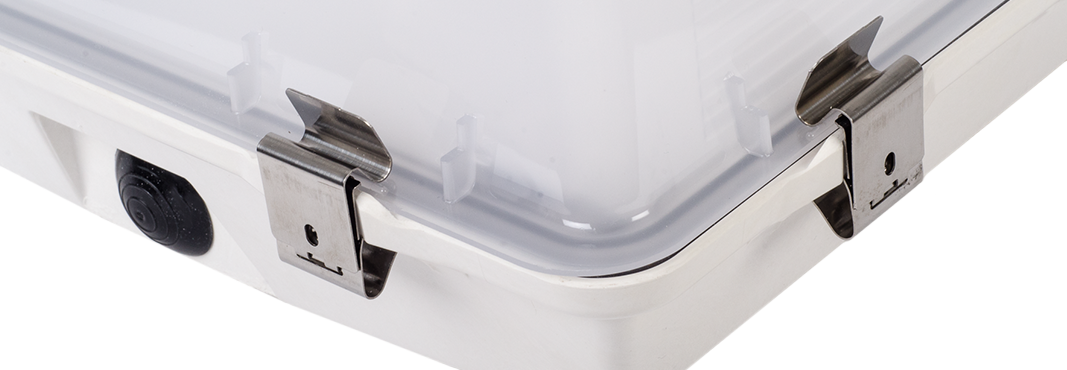

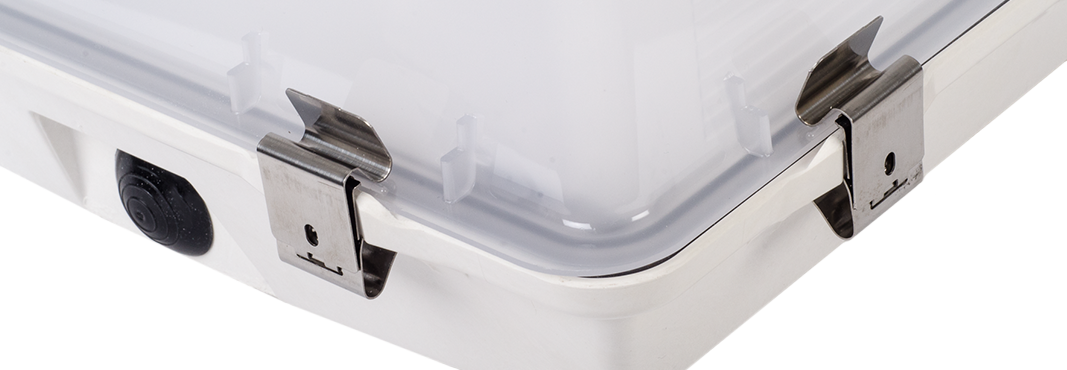

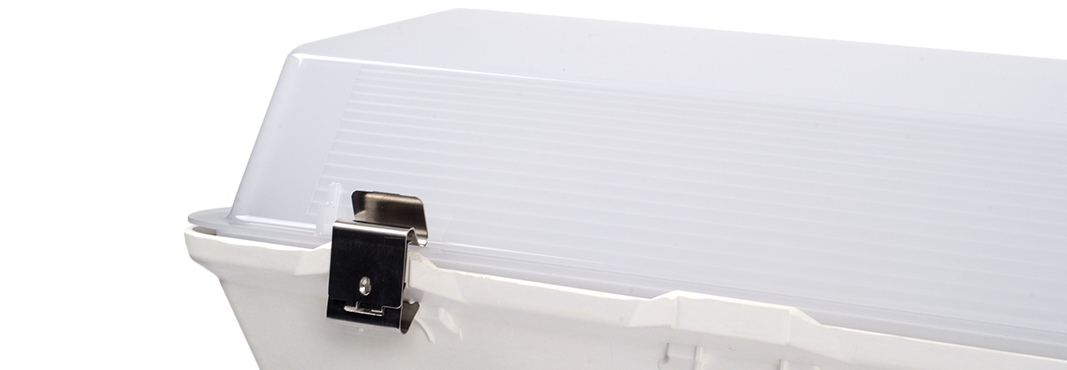

• Stainless steel 316 marine grade latches are standard, stainless steel mounting brackets included with fixture
• Durable, lightweight, white, UL 5VA (f1) reinforced fiberglass body
• Acrylic, impact resistant, shallow ribbed frosted lens
• Various lumen outputs to meet required light levels
• Cold Temperature option
• Factory installed Battery Back Up available in 10w and 20w, certified in CA Title 20

Electrical

• Available in 120v-277v, 347v and 480v
• Factory wired for full dimming (0-10v) or ON/OFF applications
• 6kV/3kA surge protection standard. 20kV/10kA surge protection available
• Power factor > .90*
• Total harmonic distortion < 20%*
*Note: Varies based on option

Operating Range

• Varies based on type. See data sheet for more information.

Certifications & Listings

• NSF/ANSI Standard 2
• UL/cUL listed for wet locations
• UL 5VA (f1) fiberglass housing
• IP67 rated for 4' fixtures
• IP69 rated for 2' fixtures
• NEMA 4X housing
• High pressure wash down up to 1500 PSI
• DesignLights Consortium™ qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
