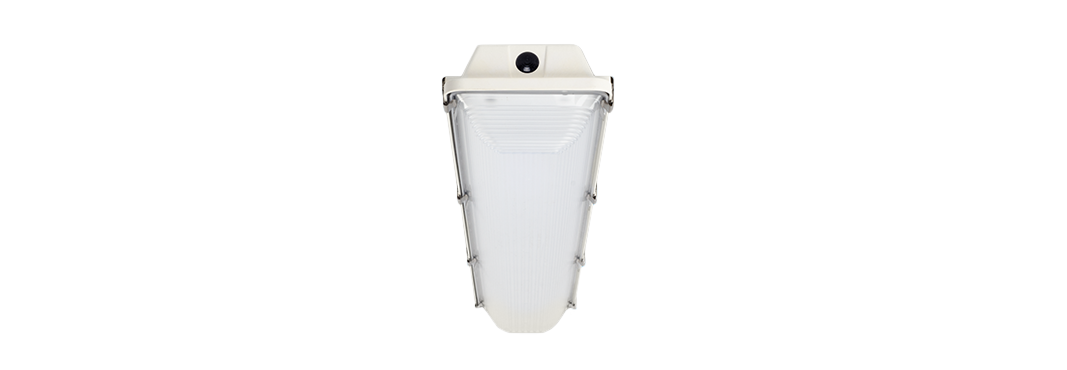

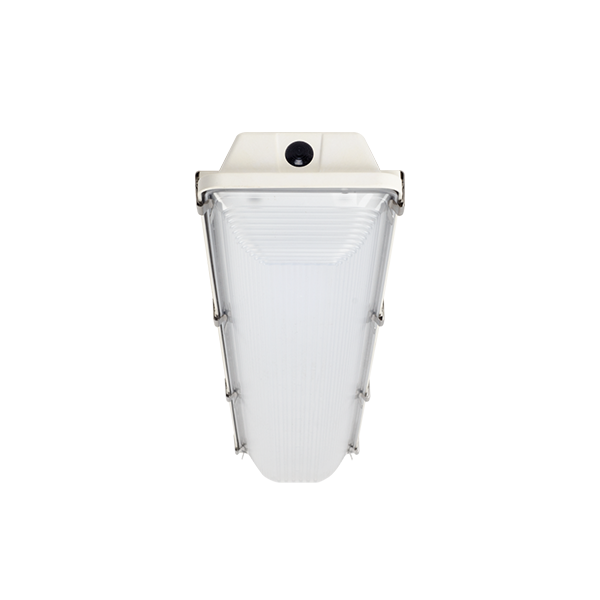

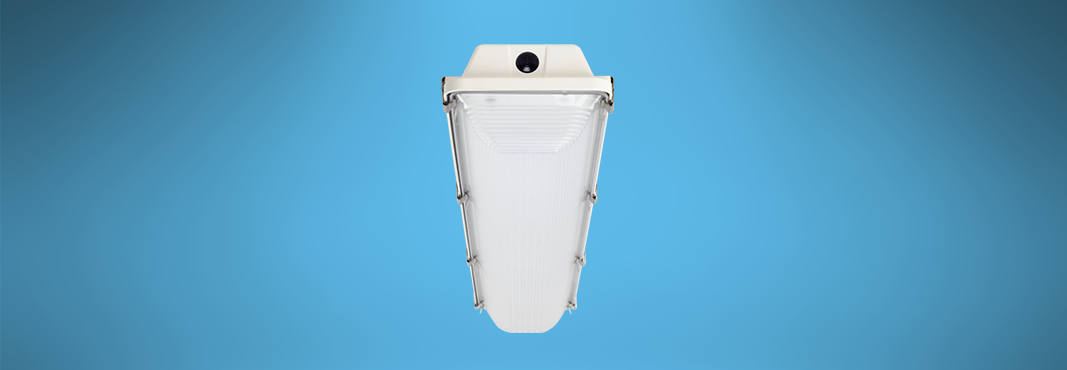

ISON™ LED VaporTight Narrow Body, Gen 2 | VTON2

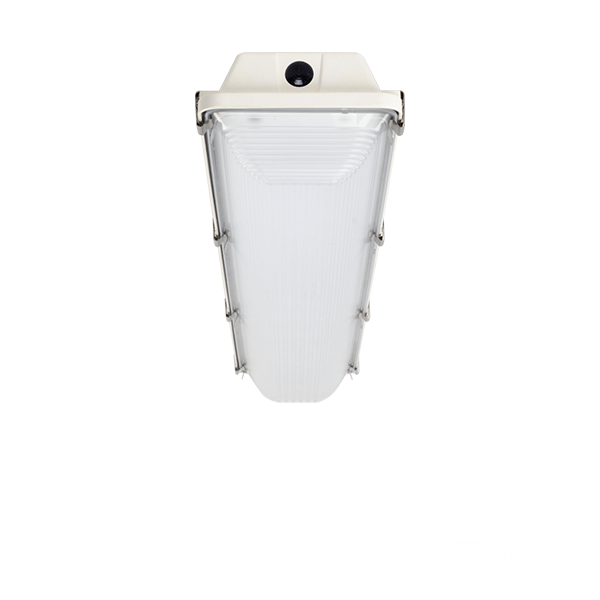

  • BAA Compliant
  • DLC Standard
  • IP65
  • IP66
  • IP67
  • UL Listed
  • UL Wet Location
  • BABA Compliant


Durable, versatile high bay fixture suitable for demanding environments that require a watertight seal such as food processing facilities, milking parlor, wash down applications, and cooler/freezer environments.



• Durable, lightweight, white UL 5VA reinforced fiberglass body

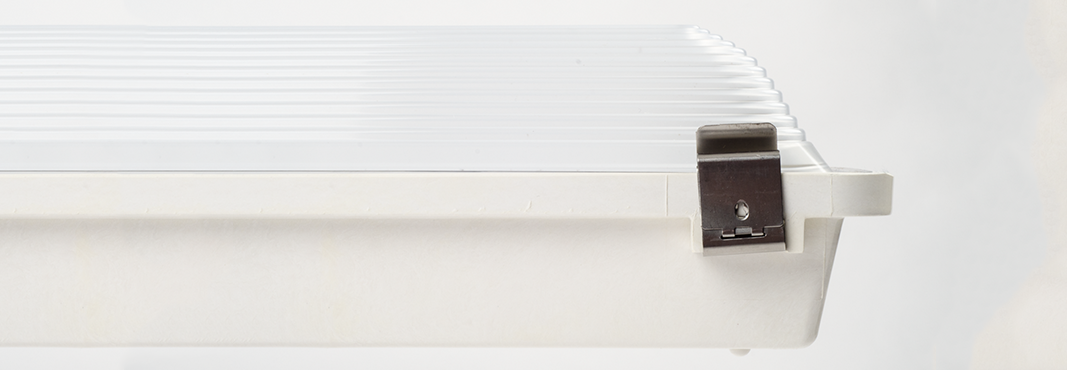

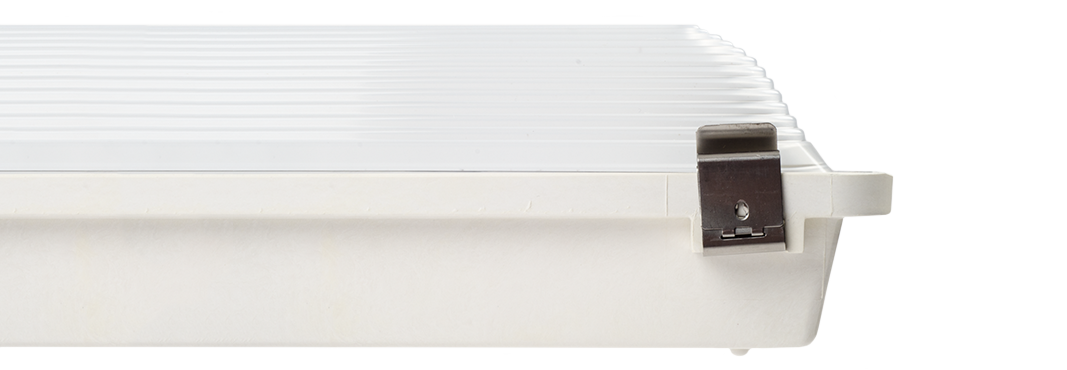

• Stainless steel 316 marine grade latches are standard, stainless steel mounting brackets included with fixture purchase
• Available in 4’ and 8’

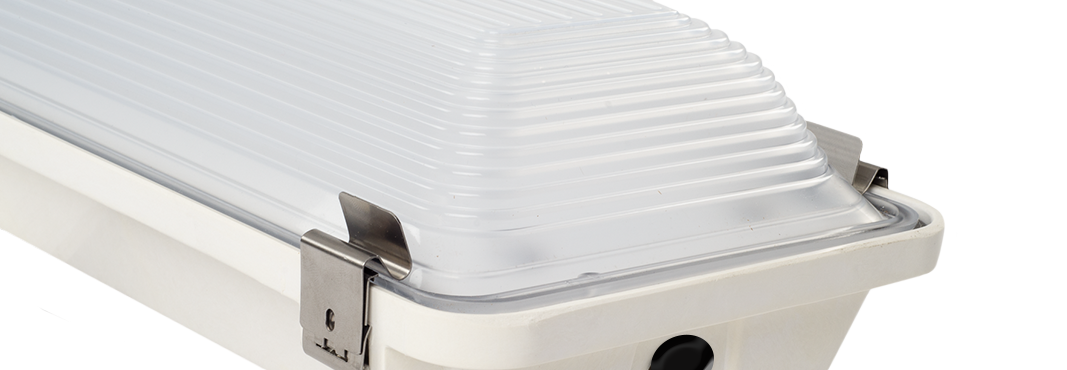

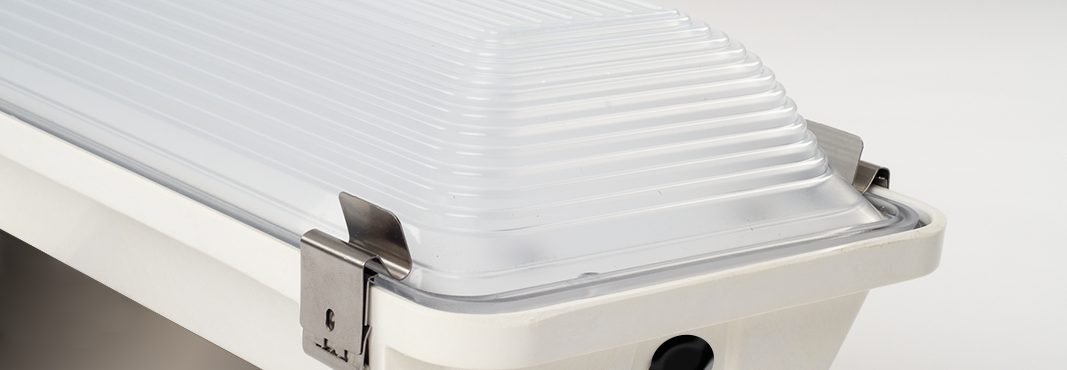

• Acrylic, impact resistant, linear ribbed frosted lens
• Various lumen outputs to meet required light levels
• Cold Temperature option available
• Multiple mounting methods for compatibility in most environments
• Factory installed Battery Back Up available in 10w and 20w, Certified in CA Title 20


• Available in 120v-277v, 347v, and 480v
• Hardwire power connection standard with other power connections available
• 20kV/10kA surge protection available
• Power factor > .90*
• Total harmonic distortion < 20%*
*Note: Varies based on option

Operating Range

• Varies based on type. See data sheet for more information.

Control & Sensor Options

• Factory installed control and sensor options
• Manual programming sensors
• Remote programming sensors

Certifications & Listings

• UL/cUL listed for wet locations
• UL 5VA (f1) fiberglass housing
• IP67 rated • IP66 when using WSxx and WBxx sensors
• IP65 when using WWxx sensor
• NEMA 4X housing
• High pressure washdown up to 1500 PSI
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
