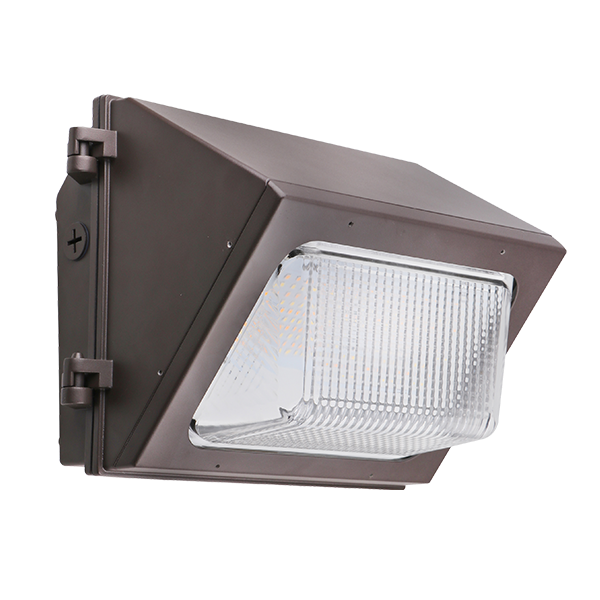

HARRIS Lumen Select Wall Pack Full Cutoff | LSWF1
Overview
Specifications
Features
• Die-cast aluminum housing with powder coat finish for harsh outdoor environments. Bronze fixture housing color is standard. White and black housing colors available
• Heat and impact resistant borosilicate glass lens
• Three fixture sizes with selectable power/lumens between 3,000-18,000 lumen outputs provide flexibility to adjust in the field
• 80 CRI minimum; CCT selectable between 3000K, 4000K or 5000K
• Back plated design with template to mount directly over a standard recessed junction box or for surface mounting
• Integrated photocell standard
• PIR and microwave sensor options
Electrical
• Available in 120v-277v
• 0-10v continuous dimming
• Power factor >0.90
• Total harmonic distortion < 20%
• 10kV/5kA surge protection standard
Operating Range
• -40ºC to 50ºC (-40ºF to 122ºF)
Certifications & Listings
• cUL/cULus listed
• UL wet listed
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models
Rated Life
• Varies based on type. See data sheet for more information.
