TritonPro® Flat Panel Backlit Selectable, Gen 1 | FPBS1
Overview
The FPBS1 recessed Lay-In Panel is ideal for commercial, office, retail, education, healthcare or anywhere T-Bar Lay-In Grid is found in 1' x 4', 2' x 2', and 2' x 4'. The FPBS1 cost-efficient panel provides even light distribution and improved energy savings over commonly used fluorescent troffer fixtures.
Specifications
Construction
• Easily accessible dip switches allow the user to select CCT and lumen output in the field providing flexibility to adapt to different work environment dynamics; 9 different configurations per unit
• Field adjustable CCT (3500K/4000K/5000K)

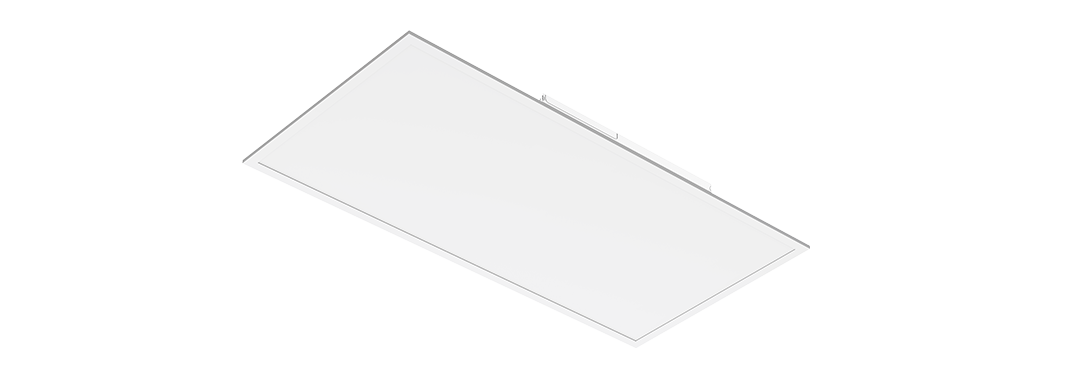

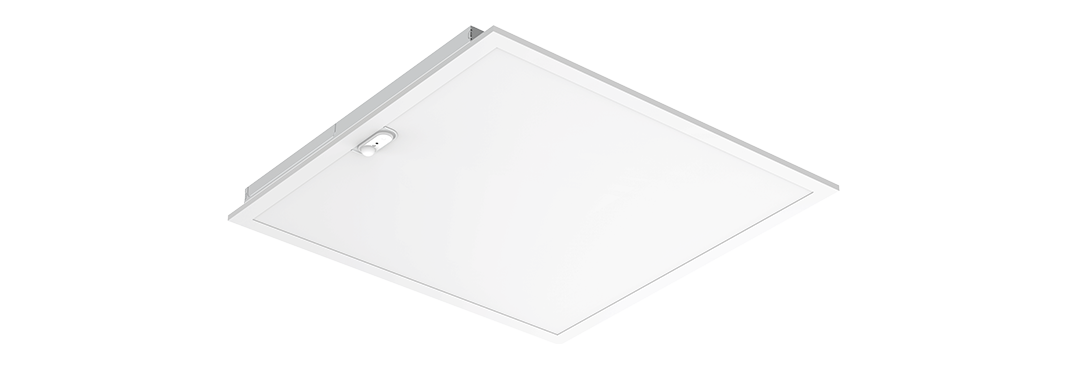

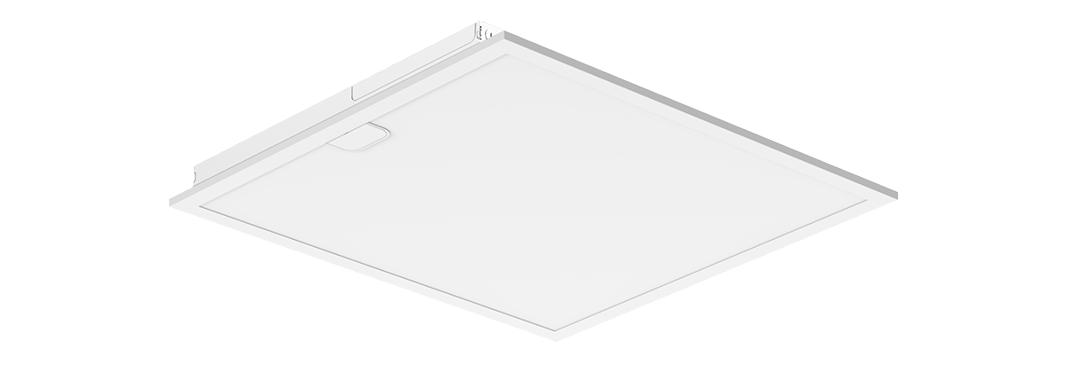

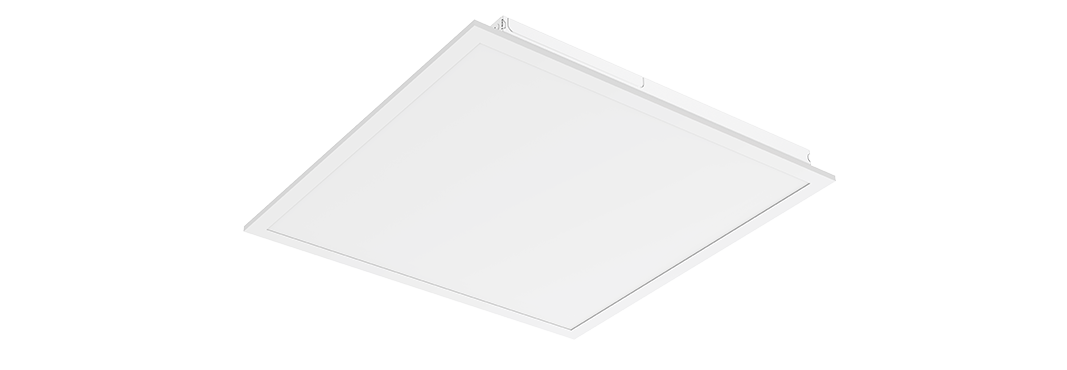

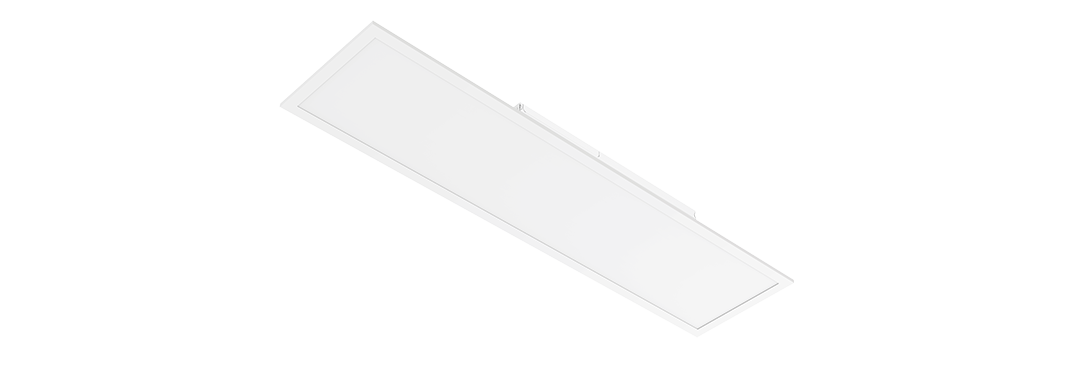

• 1' x 4', 2' x 2', or 2' x 4' sizes available
• Uniform light distribution across the lens provides better visual comfort for users
• PMMA optical lens with precise distribution pattern
• Efficacy of up to 140 LPW
• Minimum 80 CRIs
Electrical
• Available in 120v-277v
• Standard 0-10v dimming drivers with 12v auxiliary output
• Power Factor > .90*
• Total Harmonic Distortion < 20%
*Note: Varies based on option
Control and Sensor Options
• Control ready option allows for fast and easy installation of sensors in the field
Additional Options
• Field installed Battery Backup available in 8w
Lumen Maintenance*
• L90 - 43,000 hours
• L80 - 90,000 hours
• L70 - 144,000 hours
*Note: At 45C ambient
Fixture Certifications & Listings
• UL/cUL Listed
• Suitable for Damp Locations
• TAA Compliant
• RoHS Compliant
• Certified for Insulated Plenums (Type IC)
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models
