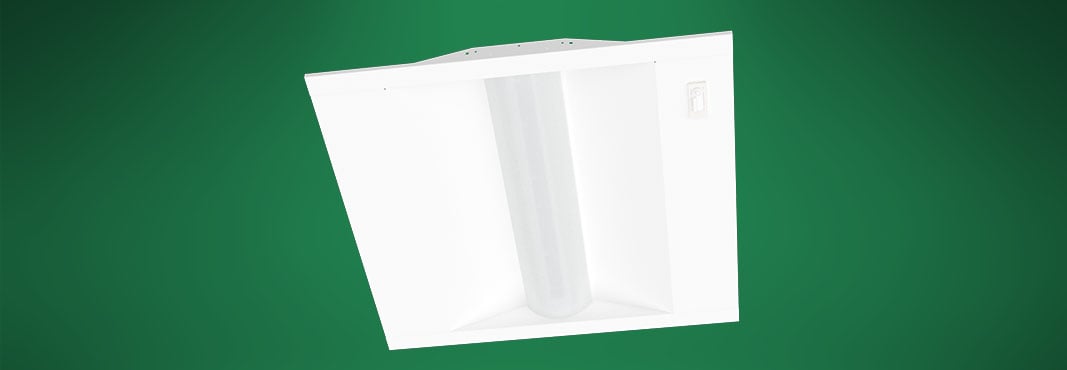

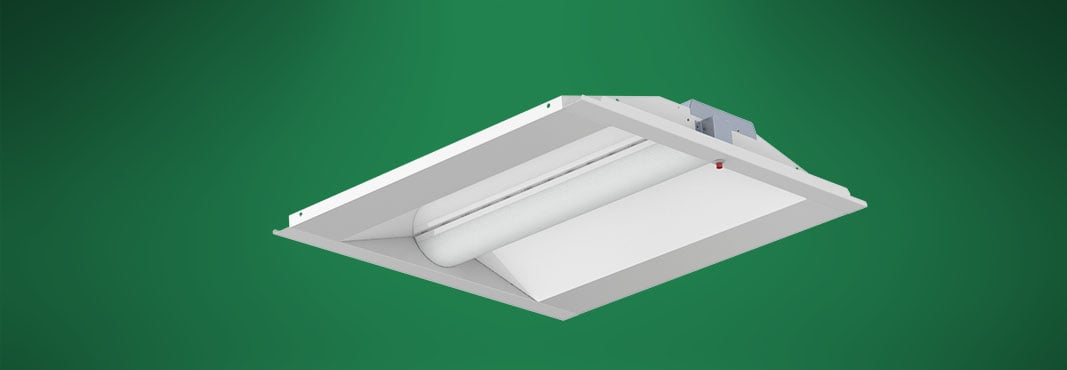

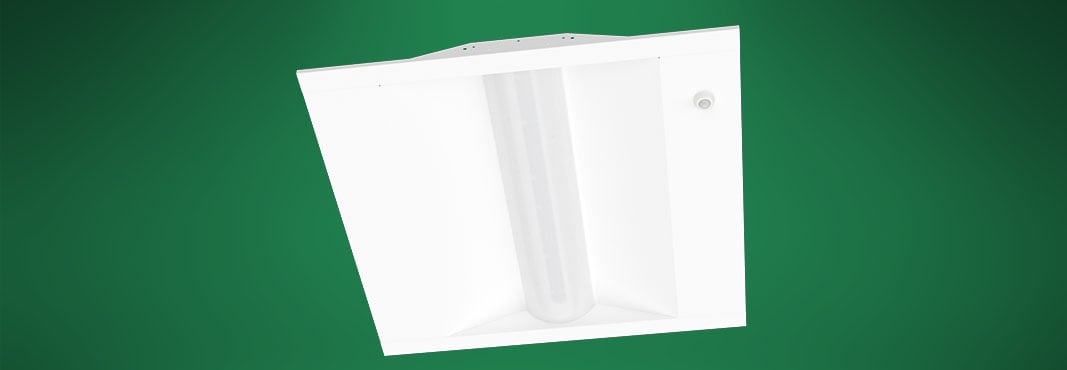

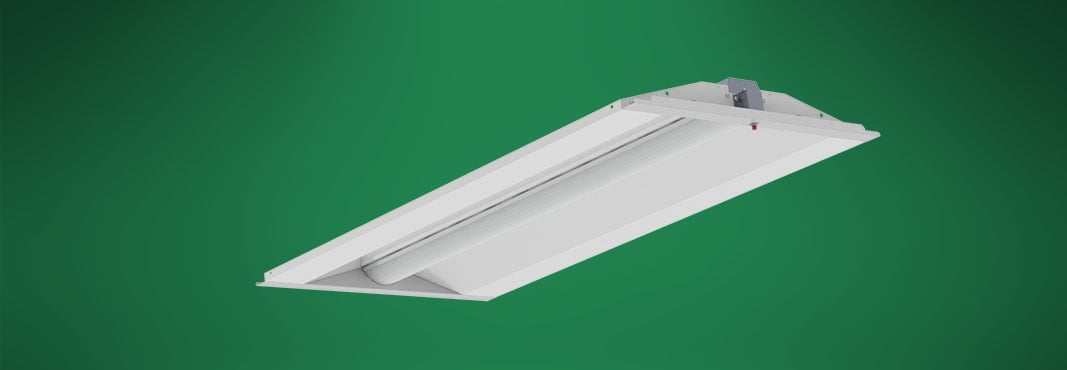

HARRIS LED Troffer, Gen 2 | LTHE2

  • BAA Compliant
  • DLC Standard
  • UL Listed
  • BABA Compliant


The HARRIS LTHE2 recessed Lay-In Troffer is for use in commercial, office, retail, education, healthcare or anywhere T-Bar Lay-In Grid is found in 1' x 4', 2' x 2', and 2' x 4'. This Luminaire has the same aesthetic as the LDRE3 troffer retrofit and can be used in the same space. The LTHE2 provides even light distribution and improved energy savings over commonly used fluorescent troffers.



• Wide light distribution reduces wall and ceiling dark spaces
• Matte white finish fixture ends and acrylic contour lens diffuses LEDs in the work environment
• Energy efficient with low environmental impact
• Title 24 compliant seismic cable kit option
• Antimicrobial Britex™ finish available
• Field or factory installed Battery Back Up available in 10w, Certified in CA Title 20
• Dial dimmer available for field adjustment of power and lumen output


• Available in 120v-277v and 347v
• Hardwired connection to power
• Standard 0-10v dimming drivers
• Step dimming drivers available
• Lutron® dimming drivers available. Requires an existing Lutron control system
• Power factor >0.9*
• Total harmonic distortion < 20%*
*Note: Varies based on option

Operating Range

• 0°C to 55°C (32°F to 131°F)

Control & Sensor Options

• Factory installed control and sensor options
• Manual programming sensors
• Remote programming sensors
• Onsite network programming
• Internet/Cloud based network programming

Certifications & Listings

• UL/cUL listed for Damp Locations
• Buy American Act Compliant
• Type IC Rated for insulation
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies based on type. See data sheet for more information.
