HARRIS LED High Bay Star Line High Efficacy, Gen 2 | HHSL2 HE

  • BAA Compliant
  • DLC Standard
  • DLC Premium
  • UL Listed

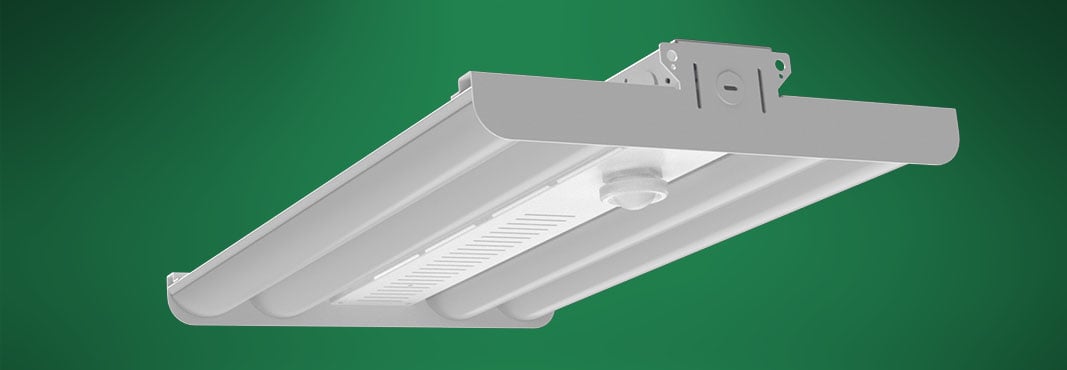

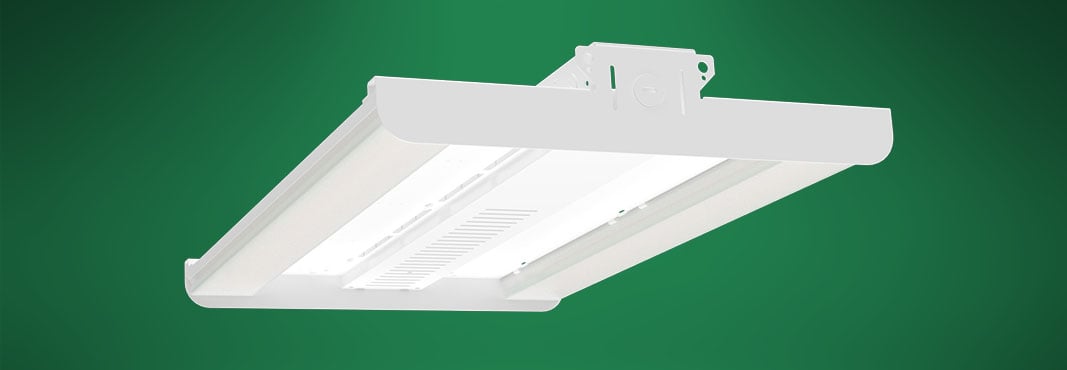

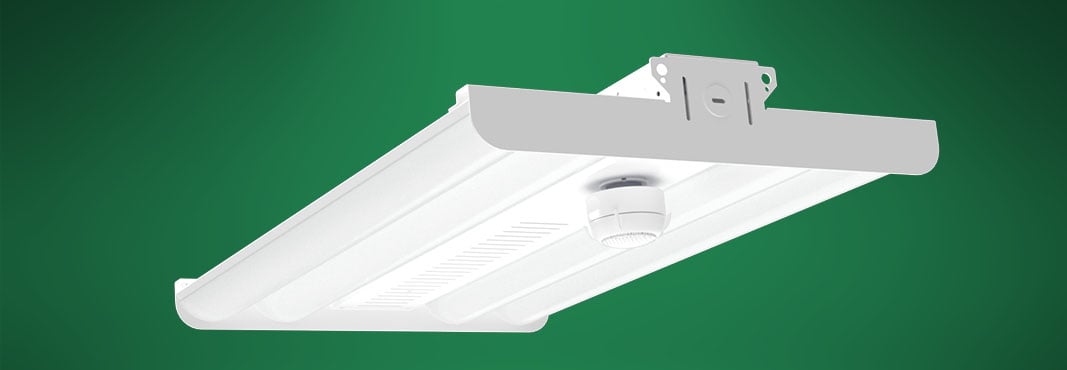

The HARRIS HHSL2 HE is an innovative high bay and is industry leading with up to 198 LPW at 80 CRI. The low profile design offers energy savings, low maintenance, and control options for low or high bay settings in industrial, commercial, and retail applications.



• Narrow lightweight 2' and 4' aluminum body allows for optimal thermal management and ease of handling during installation
• Available with five different light distribution types: No lens, acrylic frosted general lens, acrylic frosted narrow lens, acrylic glare reduction lens, and acrylic clear focus lens
• Rigid and suspended mounting options
• Field installed precision fit fixture wireguard available for 2' and 4' fixture lengths
• Field or factory installed Battery Back Up available in 10w or 20w, Certified in CA Title 20
• Single or bulk pack available
• More available, see factory and field installed fixture options


• Available in 120v-277v, 347v and 480v
• Standard 0-10v dimming driver
• 6 kV/3 kA surge protection standard, 20 kV/10 kA surge protection available
• Power Factor >0.9*
• Total Harmonic Distortion < 20%*
*Note: Varies based on option

Operating Range

• High ambient operating range up to 65°C

Control & Sensor Options

• Factory installed control and sensor options
• Control and sensor options are available to be installed in the field
• Manual programming sensors
• Remote programming sensors
• Onsite network programming
• Internet/Cloud based network programming

Certifications & Listings

• Buy American Act Compliant
• UL/cUL Listed
• UL Damp Listed
• UL 1598 65°C

Rated Life

• Varies depending on type. See data sheet for more information.
