HARRIS LED PATRIOT SLIMLINE™ High Bay, Gen 2 | HBHS2

  • BAA Compliant
  • DLC Standard
  • UL Listed

Overview

The updated HARRIS Patriot Slimline, Gen 2 high bay fixture provides a sleek new construction or retrofit solution. The low profile design offers energy savings, low maintenance, and control options for high and low bay settings in industrial, commercial, and retail applications.

Specifications

Features

• Lightweight aluminum body allows for optimal thermal management and ease of handling during installation
• 4’ Narrow I-frame design

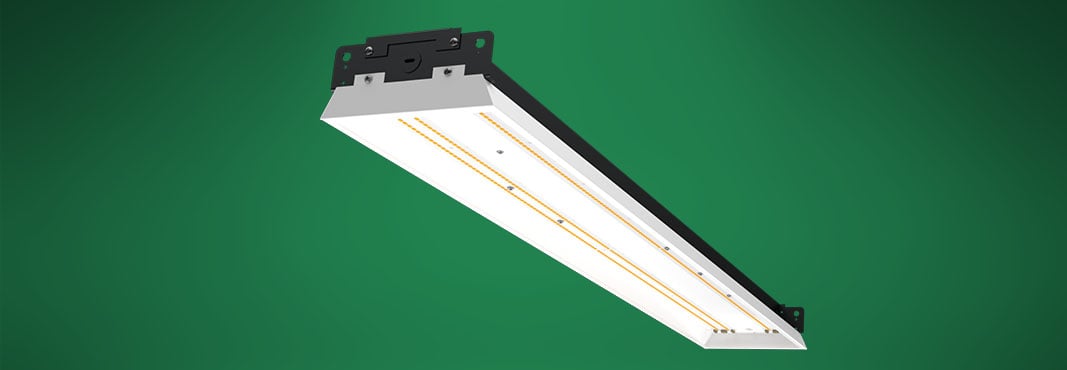

• Open design with optional acrylic frosted lens to diffuse LEDs and enhance low bay applications

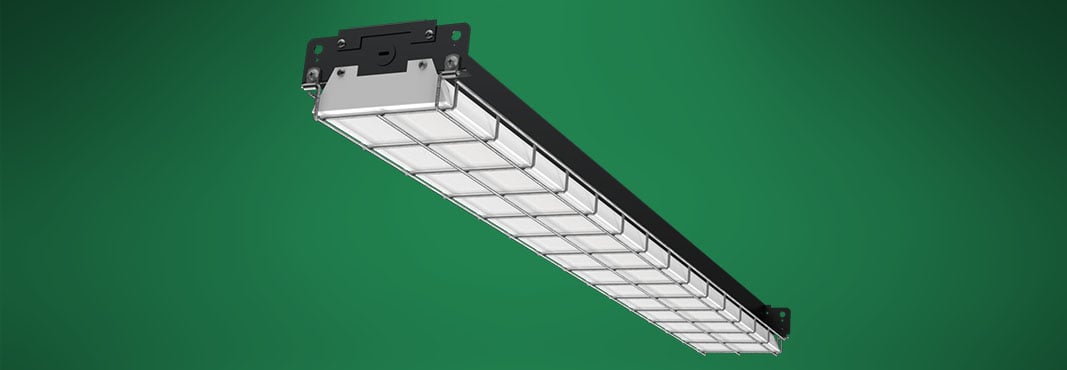

• Fixture wireguard available
• Battery Back Up available in 10w or 20w, Certified in CA Title 20

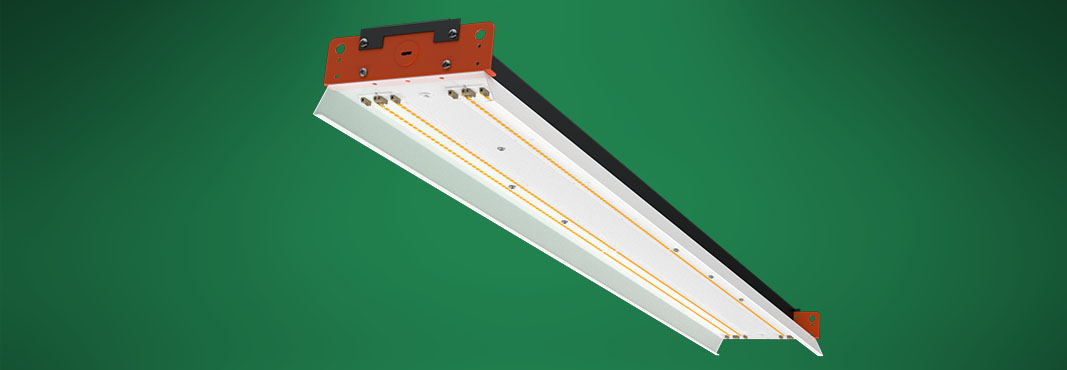

• Emergency fixture identifier option available where fixture ends are painted orange for easy identification from the floor. Primarily used on fixtures with battery back up and fixtures connected to an emergency circuit
• Configurable power connections
• Rigid and suspended mounting options

Electrical

• Available in 120v-277v, 347v and 480v
• Standard 0-10v dimming drivers
• 20kV/10kA surge protection available
• Power factor >0.9*
• Total harmonic distortion < 20%*
Note: varies based on option

Operating Range

Operating Range: • -20°C to 45°C (-4°F to 113°F)

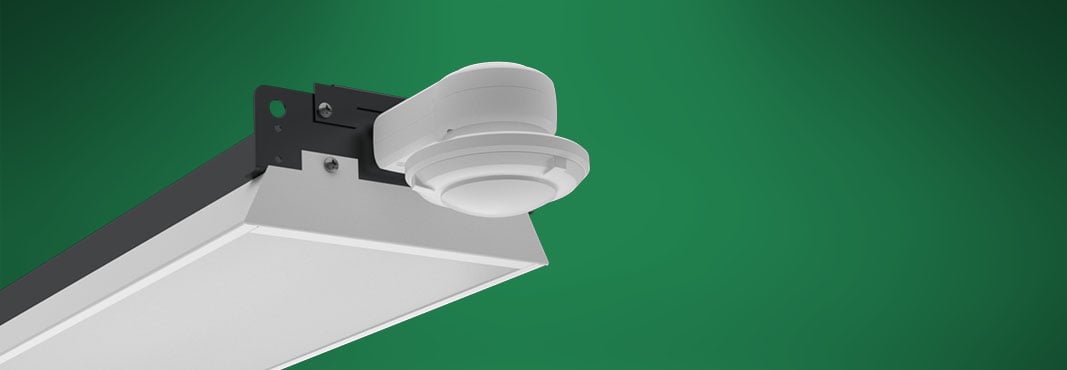

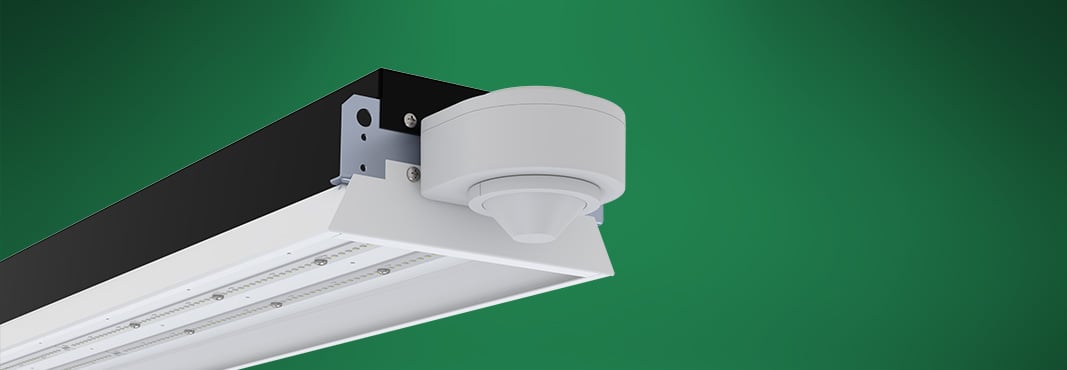

Control & Sensor Options

• Factory installed control and sensor options
• Control and sensor options are available to be installed in the field with plug-n-play connection
• Manual programming sensors
• Remote programming sensors
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• UL/cUL listed for damp locations
• Buy American Act compliant
• DesignLights Consortium™ Premium qualified luminaire
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
