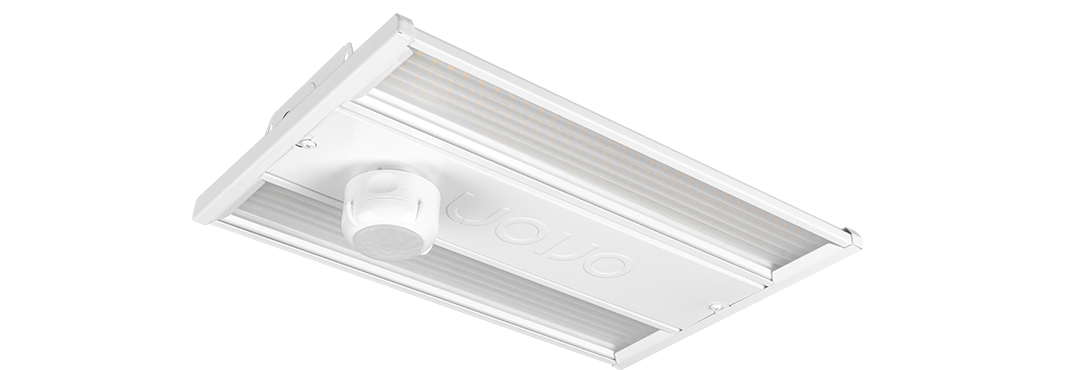

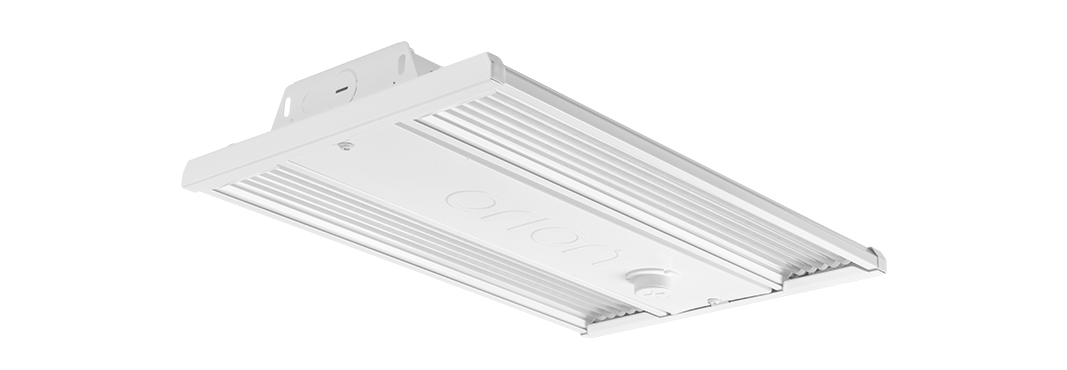

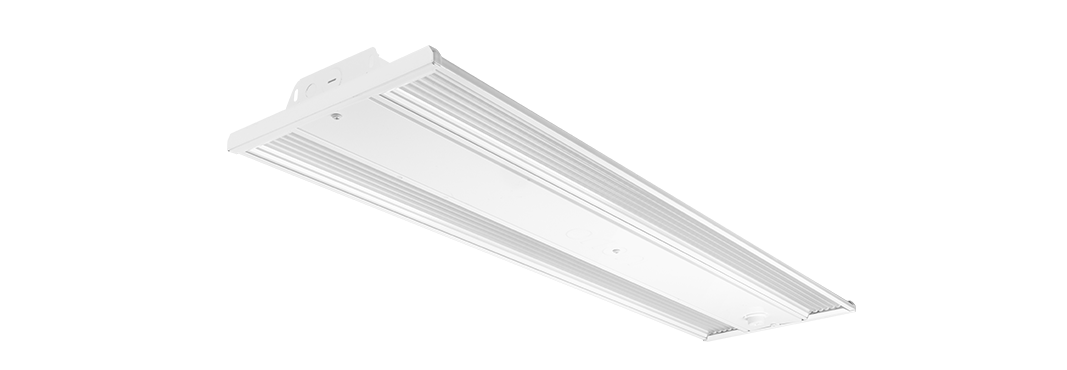

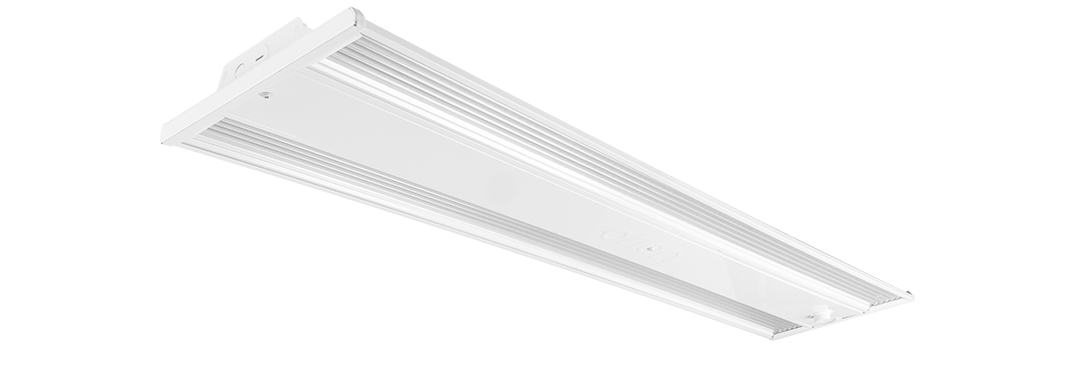

TritonPro™ Compact Linear High Bay, Gen 1 | MLHB1

  • DLC Standard
  • DLC Premium
  • UL Listed


Compact high bay designed to provide a cost effective solution for new construction or retrofit projects. The design and performance of the MLHB1 provides both installation and energy savings for low or high settings in industrial, commercial, and retail applications.



• Narrow lightweight 1', 2', 3'
and 4' steel body along with
aluminum extrusions allow for
optimal thermal performance as
well as ease of handling during
• Impact resistant polycarbonate
lenses available in three light
distribution types. Medium
distribution meets UGR
requirements for DLC 5.1
(excluding the 09L)
• Field selectable CCT between
4000K or 5000K


• Available in 120v-277v, 277v-480v
• Standard 0-10v dimming driver
• 6kV/3kA surge protection standard
• Power factor > .90
• THD < 20%

Operating Range

• -30°C to 55°C (-22°F to 131°F)

Control & Sensor Options

• Fixture comes sensor ready for field installed sensor options
• Remote Programming Sensors

Certifications & Listings

• UL/cUL Listed
• UL damp listed
• DesignLights Consortium™ Standard qualified luminaire
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies based on type. See data sheet for more information.
