HARRIS Star Line Freezer High Bay | HSLF1

  • BAA Compliant
  • DLC Premium
  • UL Listed
  • Freezer Friendly

Overview

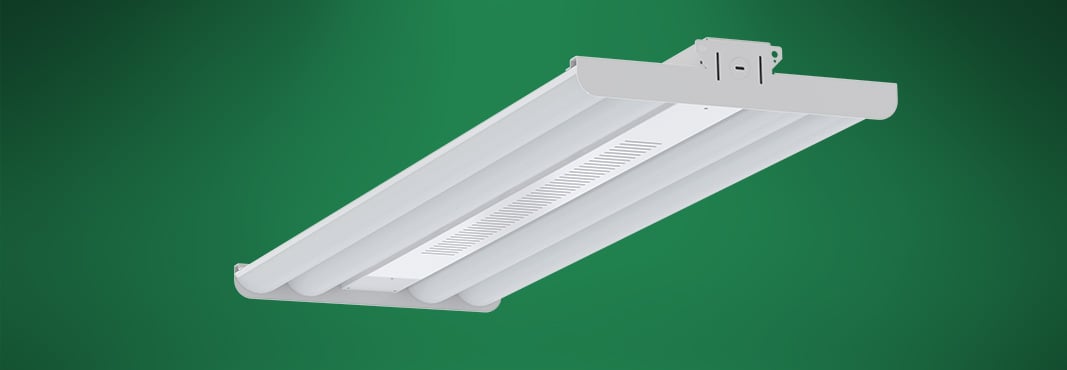

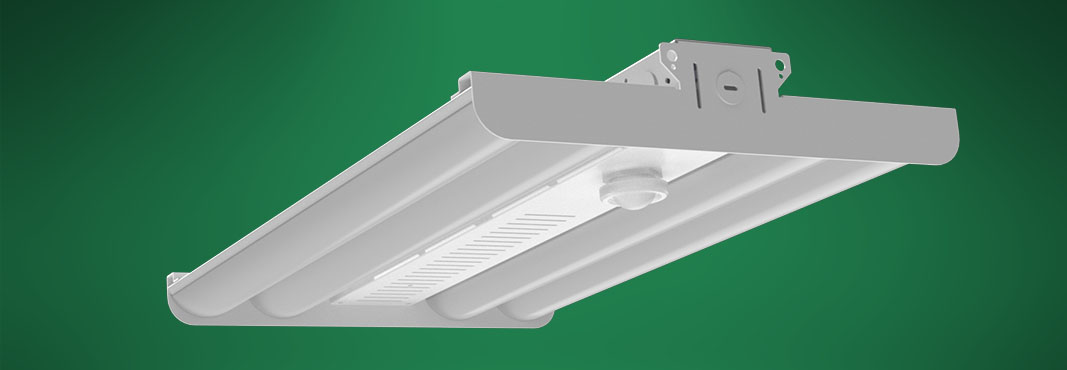

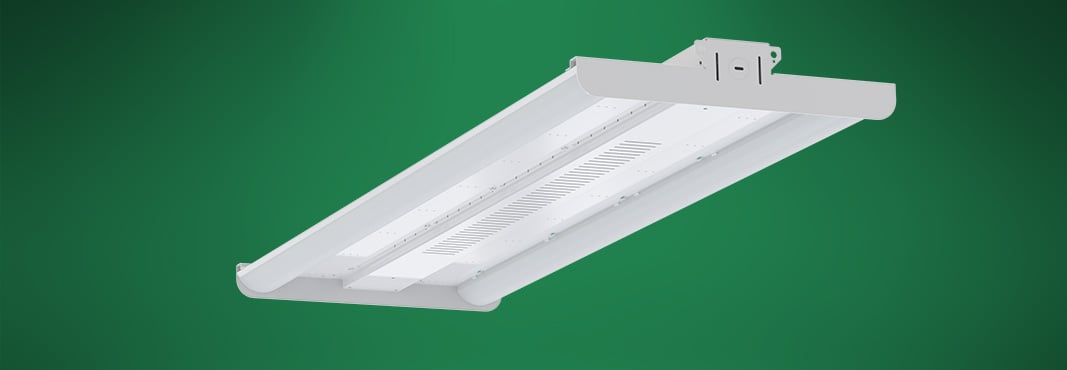

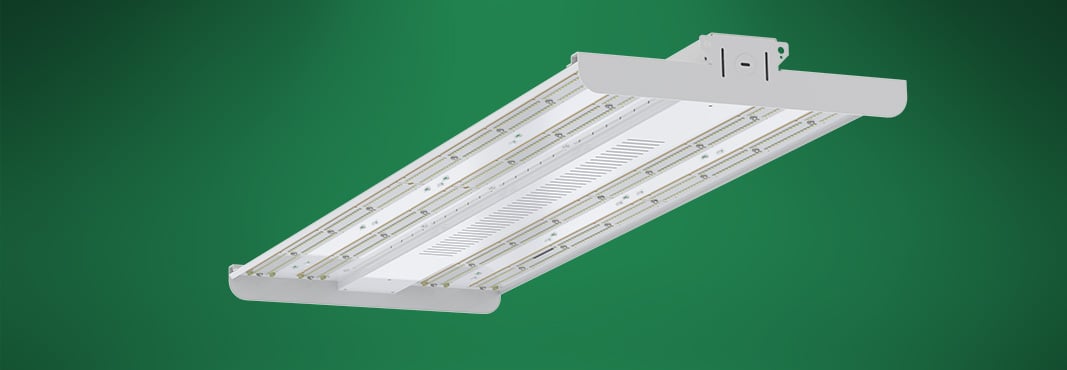

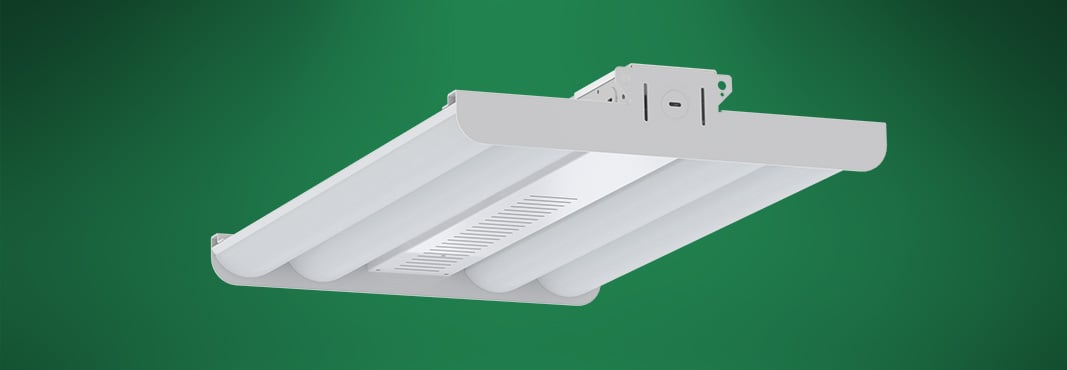

The HARRIS HSLF1 is an innovative high bay designed specifically for freezer environments in new construction or retrofit applications. The low profile design offers energy savings, low maintenance, and control options for low or high bay settings in industrial and commercial applications.

Specifications

Features

• Robust electronic components designed for freezer temperatures
• Narrow lightweight 2' and 4' I-Frame aluminum body allows for optimal thermal management and ease of handling during installation
• Available with four different light distribution types: No lens, acrylic frosted general lens, acrylic frosted narrow lens, and acrylic clear focus lens
• Rigid and suspended mounting options
• 6 kV/3 kA surge protection standard, 20 kV/10 kA surge protection available
• Field installed precision fit fixture wireguard available for 2' and 4' fixture lengths

Electrical

• Available in 120v-277v, 347v and 480v
• Factory wired for full dimming (0- 10v) or ON/OFF applications

Operating Range

• -40ºC to 50ºC (-40ºF to 122ºF)

Certifications & Listings

• Buy American Act Compliant
• UL/cUL Listed
• UL Damp Listed
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
