TritonPro™ LED Troffer Retrofit Selectable, Gen 4 | LDRES4

Intended Use

The TritonPro™ LED Troffer Retrofit Selectable, Gen 4 is designed for swift and seamless installation, taking only a few minutes and causing minimal disruption to the workplace. It effortlessly fits into existing 1' x 4', 2’ x 2’ and 2’ x 4’ fluorescent troffer housings, transforming your lighting system with ease. Enjoy the benefits of enhanced energy efficiency, longer lifespan, and improved lighting quality with this innovative retrofit solution.

Construction

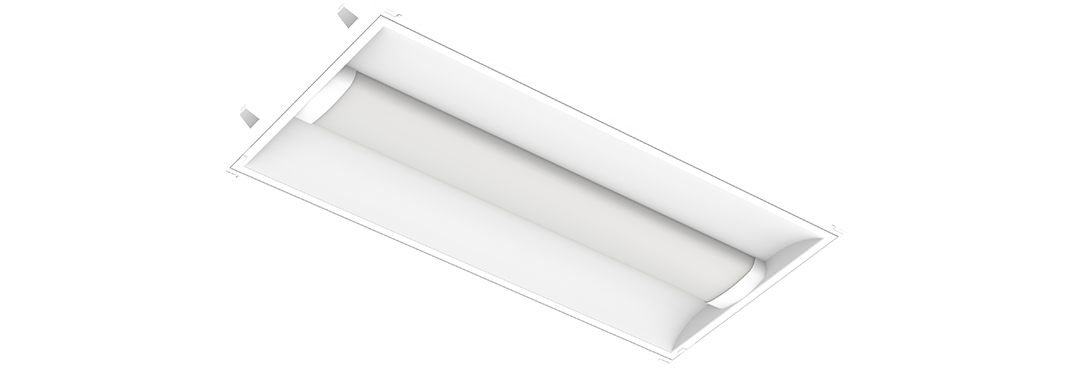

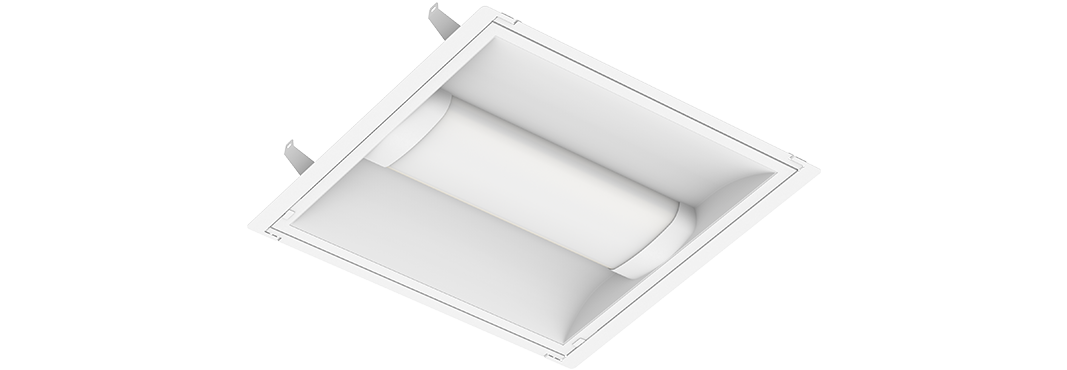

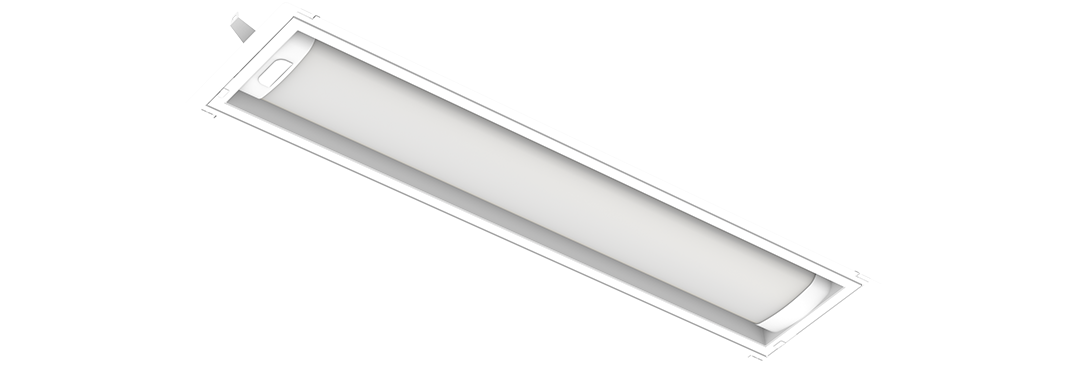

• Available in 1’ x 4’, 2’ x 2’, and 2’ x 4’ sizes.
• Bracket system ships standard with fixture and allows for quick installation in the field.
• The bracket systems allow the LDRES4 to fit most of the existing fluorescent troffer fixtures with either prismatic or parabolic louvers.
• Easily accessible dip switches allow the user to select CCT and lumen output in the field providing flexibility to adapt to different work environment dynamics.
• Low profile steel construction design with powder coat.
• Uniform light distribution across the lens provides better visual comfort for users.

Electrical

• L70 at 144,000 hours at 25ºC (see page 3 for lumen maintenance table).
• 120v-277v Standard with 0-10V dimming drivers.
• Field adjustable wattage.
• Field selectable CCT between 3500K, 4000K and 5000K.

Controls and Sensor Options

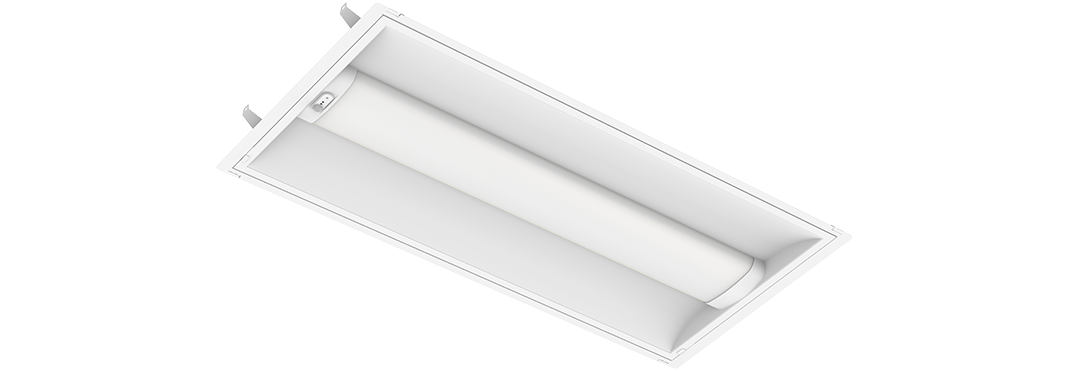

• Fixture available with sensor base for field-installed standalone and Bluetooth Mesh controls.

Additional Options

• Factory and field installable battery backup available.

Installation

• LDRES4 fits most existing fluorescent troffer fixtures with either prismatic lens or parabolic louvers.
• Mounting brackets ship standard with the fixture from the factory.

Fixture Certifications & Listings

• UL/cUL Listed for Damp Locations
• Certified for insulated plenums (type IC)
• FCC Certified
• RoHS Compliant
• TAA Compliant
• DesignLights Consortium Standard qualified luminaire; Visit DLC QPL for listed models
