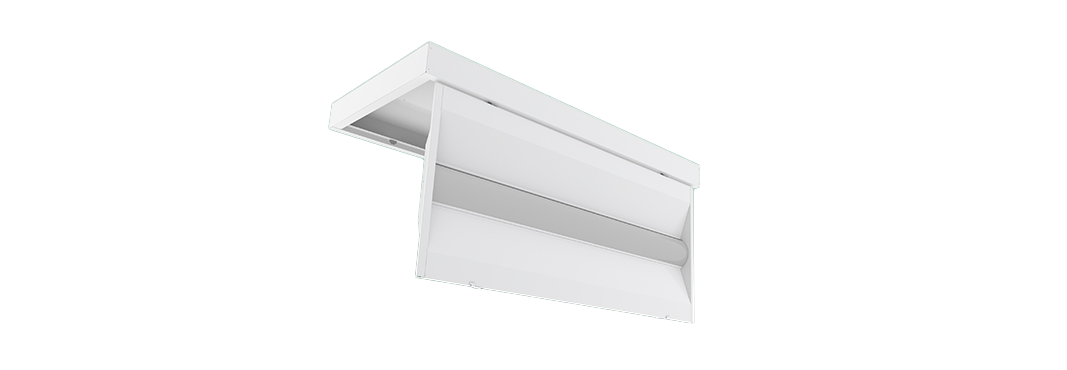

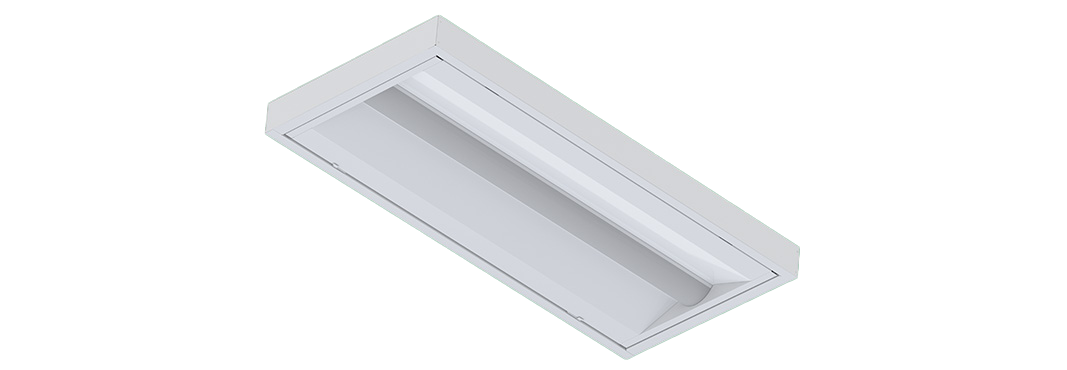

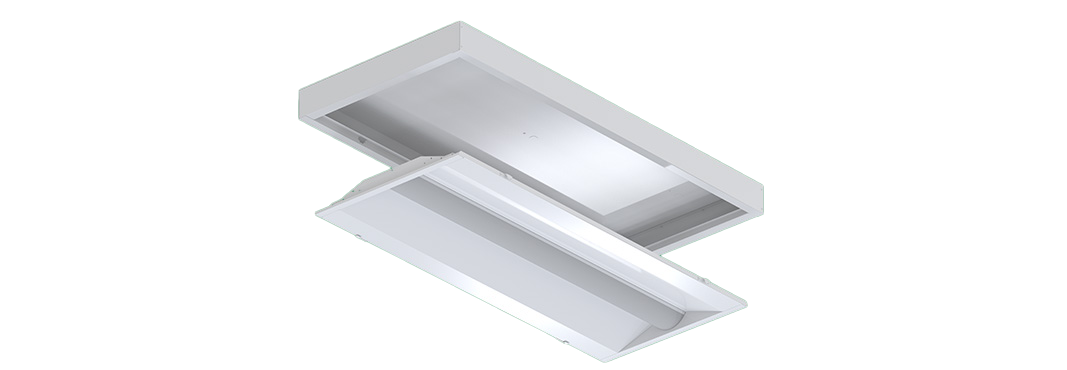

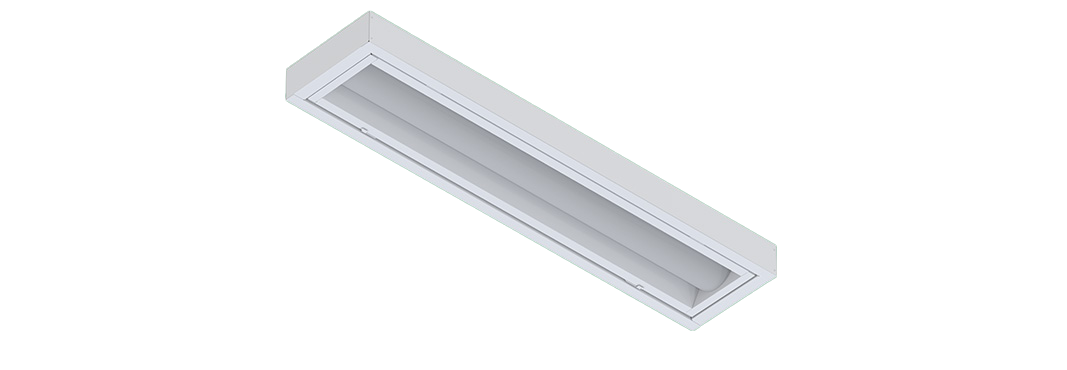

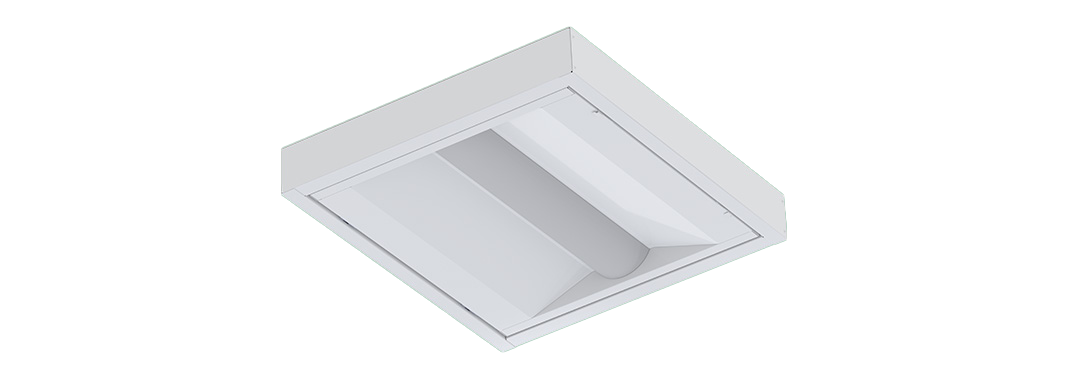

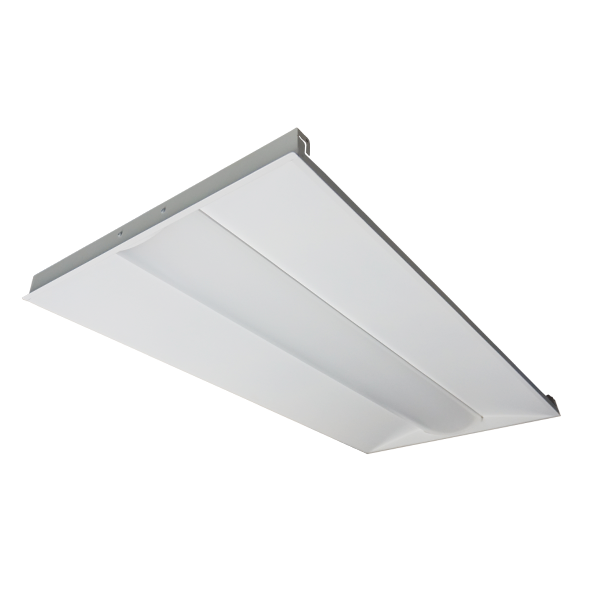

HARRIS LED Surface Mount Troffer, Gen 3 | LSME3

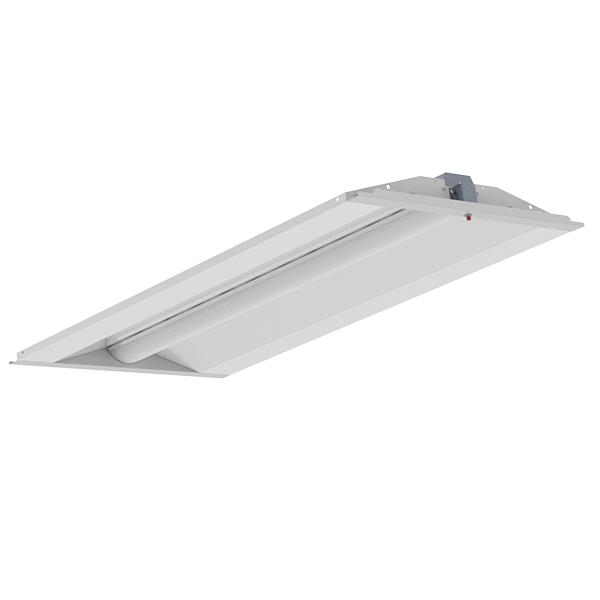

  • BAA Compliant
  • UL Listed


Surface mount troffer solution available in multiple configurations to fit your environment. The low profile design is ideal for retail, commercial and hospitality settings.



• Highly efficient surface mount
• Low environmental impact due to
energy efficiency
• White painted aluminum body
for better thermal dissipation.
Aluminum pan for surface
mounting is provided and ships
• Matte finish, acrylic contour
lens diffuses glare in the work
• Available in 1' x 4', 2' x 2' and 2' x 4'
fixture models
• Door frame design allows for ease
of maintenance


• Available in 120v-277v and 347v
• Standard 0-10v dimming driver, step dimming and Lutron drivers available
• Power factor > .90
• THD < 20%

Operating Range

• 0°C to 45°C (32°F to 113°F)

Control & Sensor Options

• Factory installed control and sensor options
• Manual Programming Sensors
• Remote Programming Sensors
• Onsite Network Programming
• Internet/Cloud Based Network Programming

Certifications & Listings

• Buy American Act Compliant
 • UL/cUL Listed

Rated Life

• Varies based on type. See data sheet for more information.
