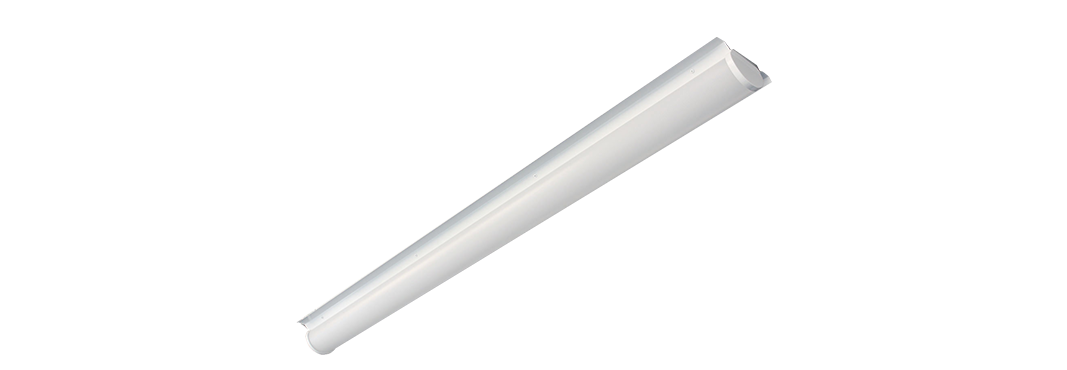

TritonPro™ LED Lumen Select Strip Retrofit, Gen 2 | LSSR2

  • DLC Standard
  • UL Listed

Overview

The ultimate flexible strip retrofit with lumen output and color temperature selection at the point of installation. A cost-effective solution to retrofit existing T8/T12 fluorescent strips to LED technology. The pre-wired assembly design provides quick and easy install in existing housings resulting in labor and energy savings. For use in commercial, manufacturing, warehouse and retail applications.

Specifications

Features

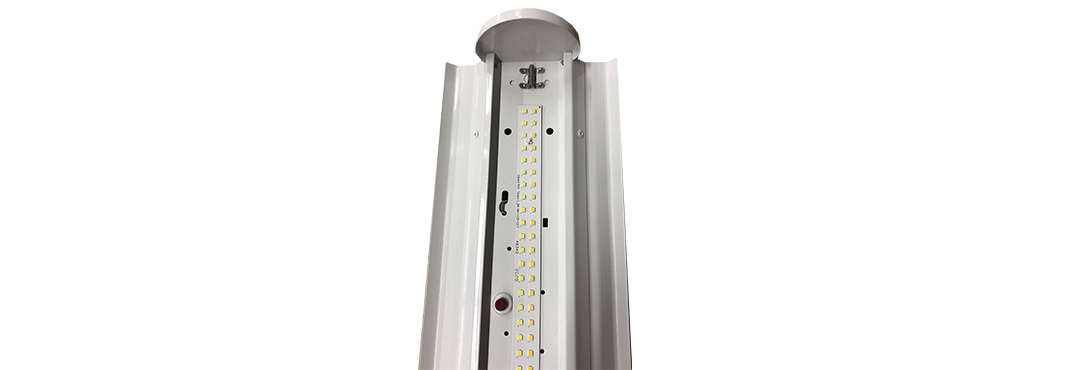

• Easily accessible dip switches
allow the user to select CCT and
lumen output in the field providing
flexibility to adapt to different
work environment dynamics
Select between three CCT
(3500K/4000K/5000K) and three
lumen outputs
• Retrofit is designed to fit over
existing 4.25"-5.25" wide
fluorescent strips
• Retrofits 4' and 8' lengths using
4' sections. 4' fixture ships 2 per
pack and must be ordered in
quantities of 2
• Quick and easy install provides
labor savings. Safety cables and
hardware come standard
• Polycarbonate frosted contour
lens reduces glare in the work
environment
• Steel construction with white
powder coat finish
• Minimum 80 CRI

Electrical

• Available in 120v-277v
• Standard 0-10v dimming driver
• Power factor > .90
• THD < 20%

Operating Range

• -20°C to 45°C (-4°F to 113°F)

Control & Sensor Options

• Field installed control and sensor options
• Wireless handheld configuration tool

Certifications & Listings

• UL/cUL Listed
• UL damp listed
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies based on type. See data sheet for more information.
