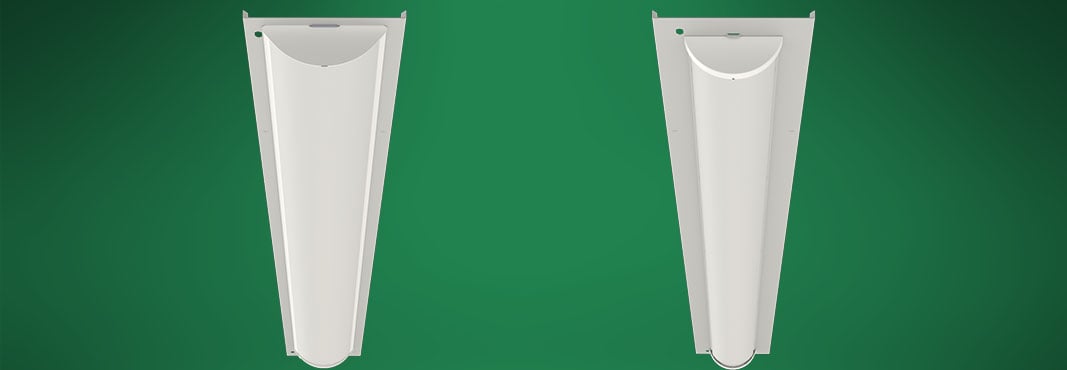

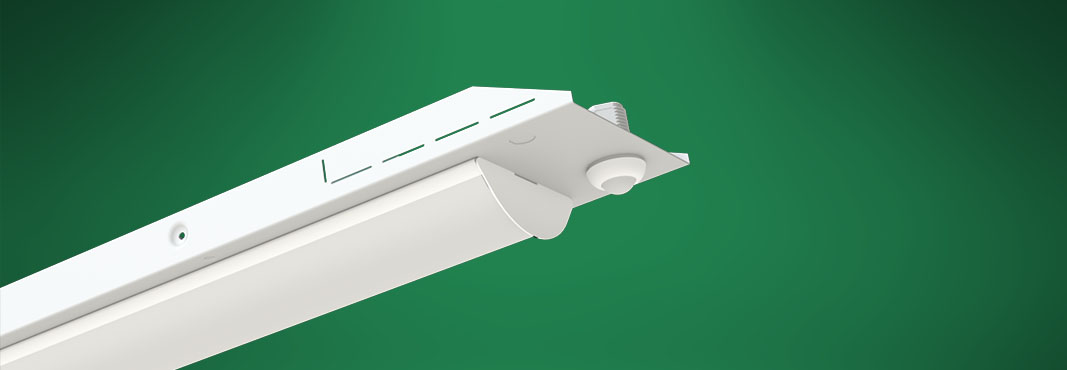

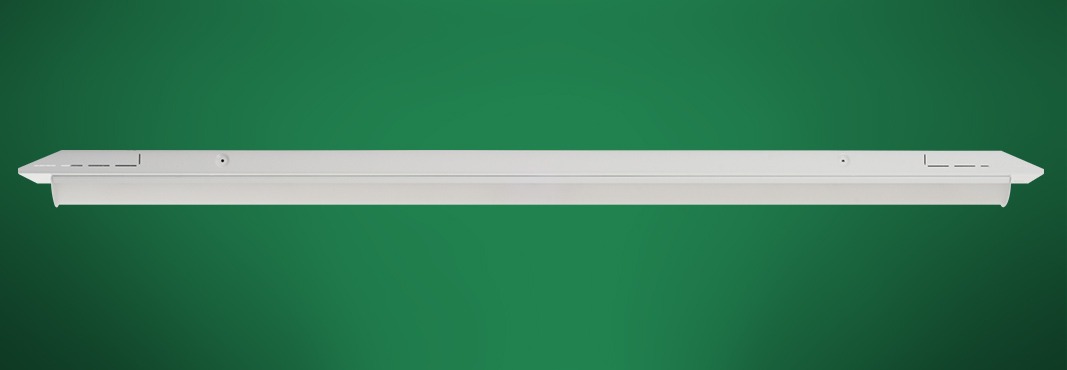

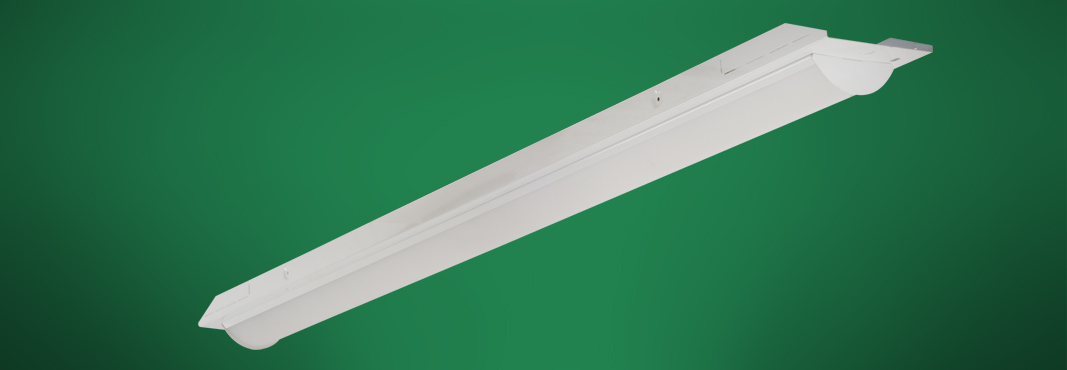

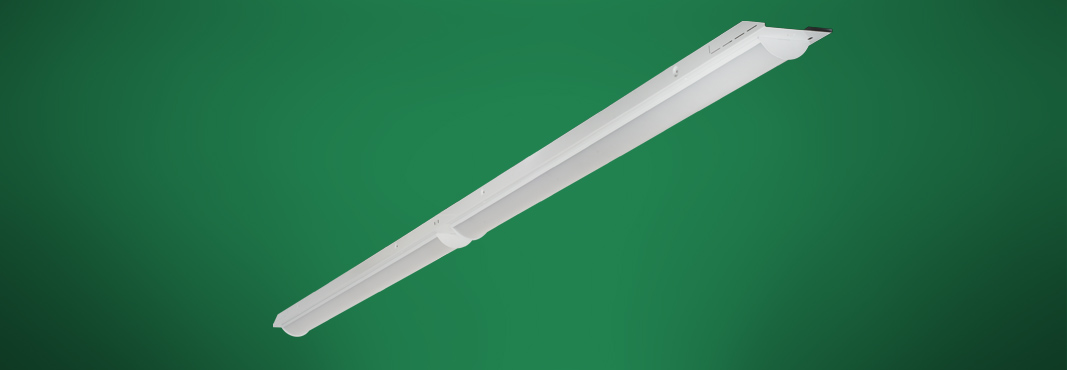

HARRIS LED Strip Retrofit, Gen 2 | SFHR2

  • BAA Compliant
  • DLC Standard
  • UL Listed
  • BABA Compliant


The HARRIS SFHR2 is ideal for retrofitting existing traditional linear fluorescent strip fixtures to LED. For use in areas such as manufacturing, distribution, warehouse, and retail settings.



• Available in 4’ and 8’ fixture lengths and traditional 4.25” and 5.00” widths

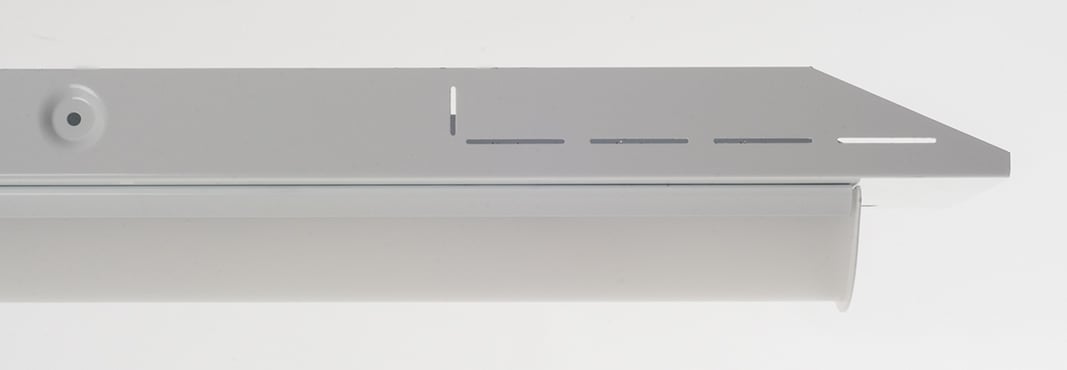

• Retrofit light engine is designed to fit over existing linear fluorescent strip fixture channel with various locations on cover to secure to existing channel
• Fixture comes with tethers to hold cover, enables one-person installation
• LED light engine is made of lightweight aluminum, with pre-coated white finish for better thermal dissipation
• Field installed wireguard kit options available
• Optional frosted acrylic matte contoured lens provides LED diffusion in task application
• Single pack and bulk pack available
• Battery Back Up available in 10w, Certified in CA Title 20


• Available in 120v-277v
• Standard 0-10v dimming drivers
• Power factor >0.9
• Total harmonic distortion < 20%*
*Note: Varies based on option

Operating Range

• -20°C to 55°C (-4°F to 131°F)

Control & Sensor Options

• Factory installed control and sensor options
• Control and sensor options are available to be installed in the field
• Manual programming sensor
• Remote programming sensor
• Remote programming with zoning
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• UL/cUL Listed for damp locations
• Buy American Act compliant
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies based on type. See data sheet for more information.
