HARRIS LED Multipurpose Linear, Gen 2 | MPHL2
Overview

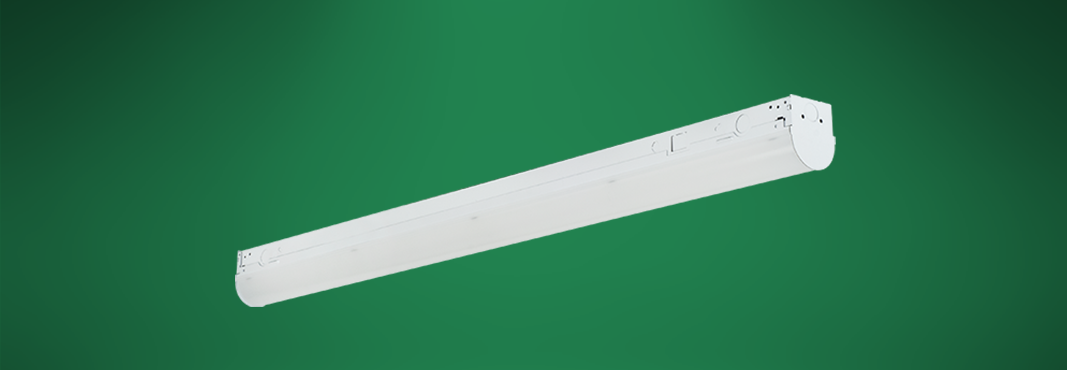

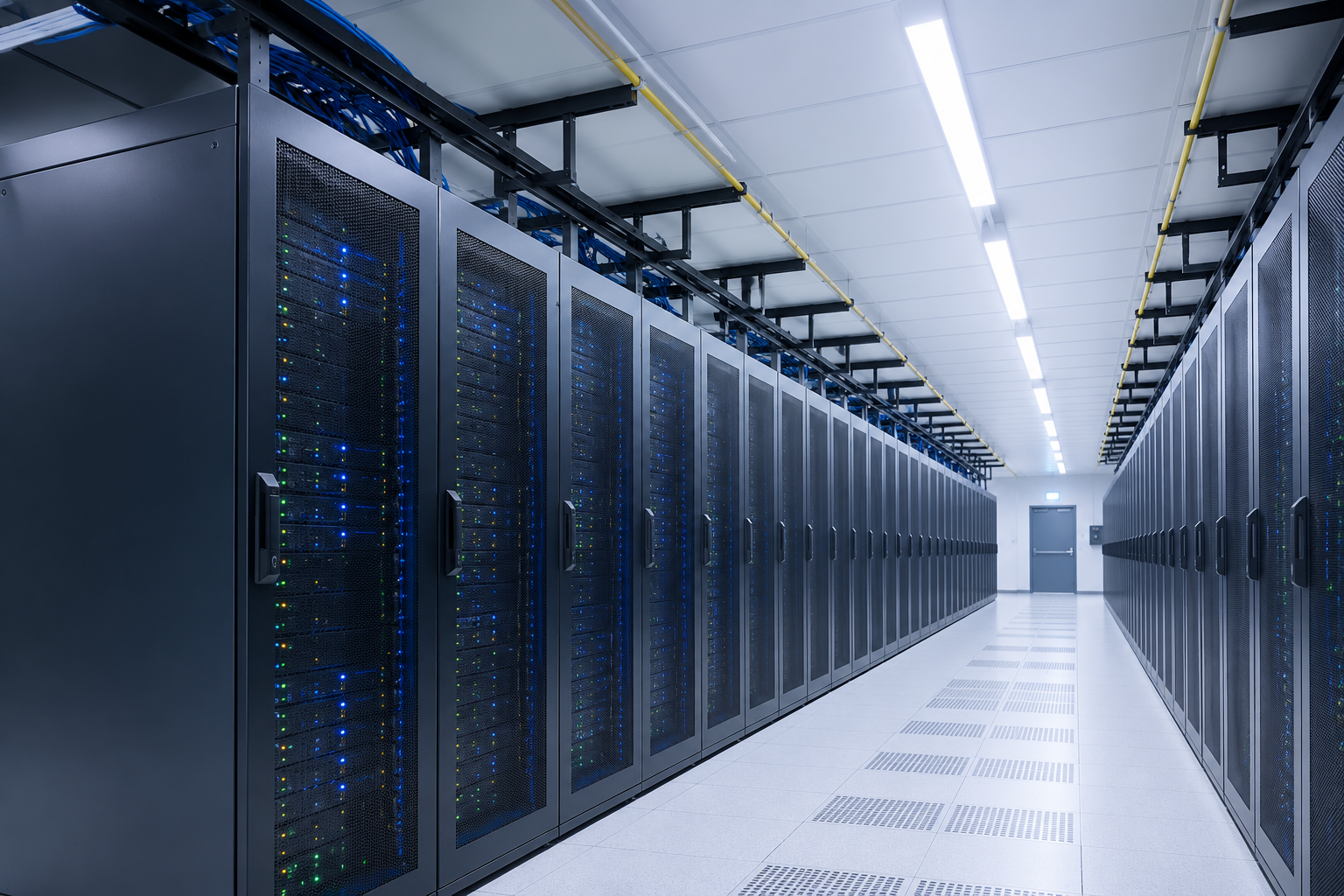

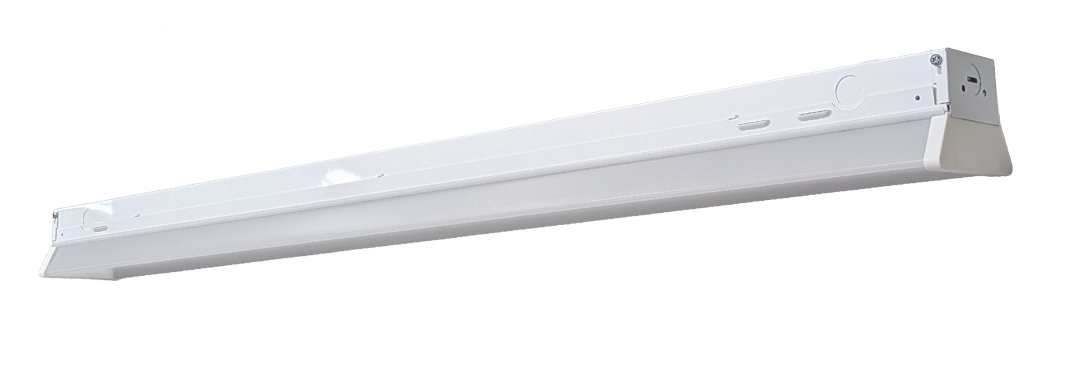

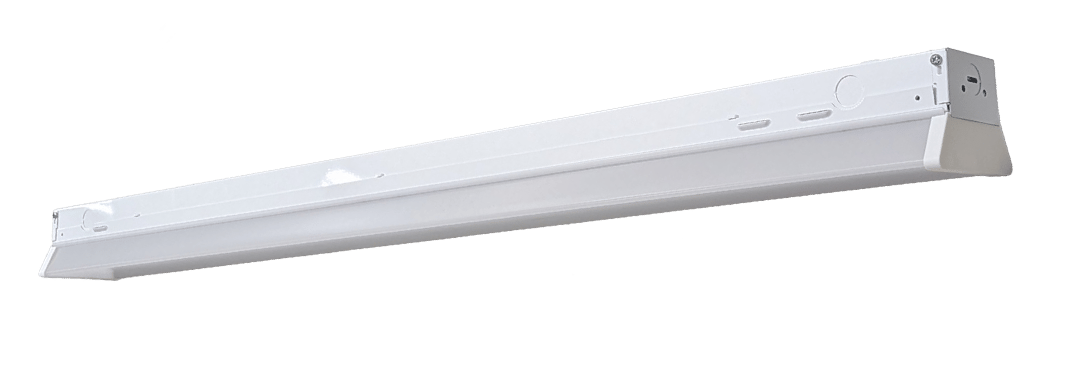

The HARRIS MPHL2 multipurpose linear fixture is ideal for low bay, suspended, or surface mount, continuous run, or task options in warehouse, commercial, retail, education, and data center environments where linear lighting is needed.
Specifications
Construction
• Manufactured in the USA

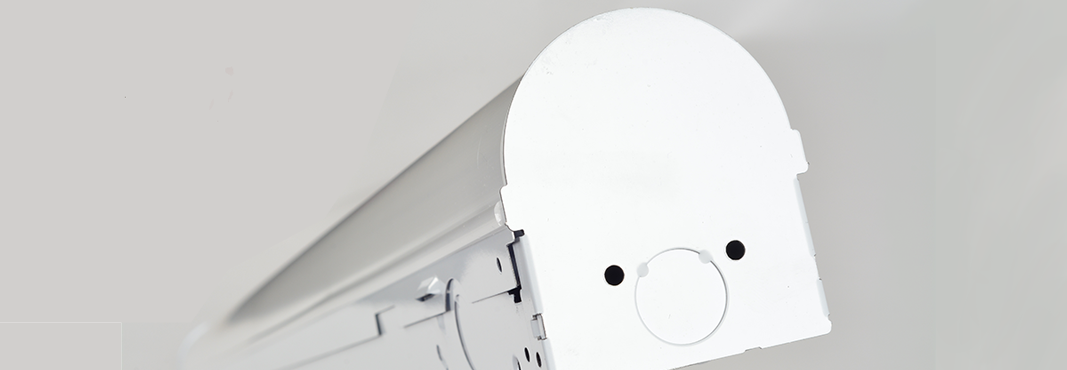

• Injection-molded plastic end caps available
• Acrylic frosted contour and triangular lenses available
• The triangular lens provides up to 17% uplight
• Operates in ambient temperatures between -20°C and 50°C
Electrical
• Available with 120-277v and 347v input integral drivers
• Full dimming (0-10v) drivers
• 20kV/10kA additional surge protection available
• Power Factor >0.9
• Total Harmonic Distortion <20%
• 3500K, 4000K, or 5000K
• 80CRI or 90CRI
• L70 up to 238,000 hours at 25C (See page 4 for lumen maintenance table)
Controls

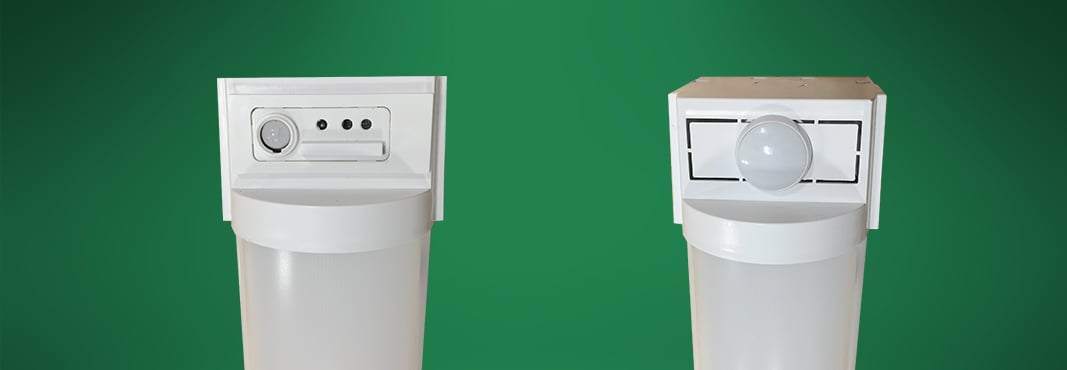

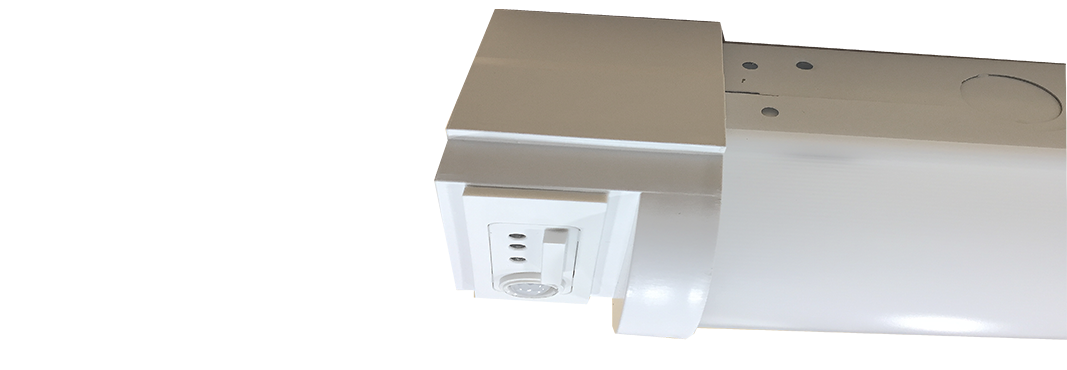

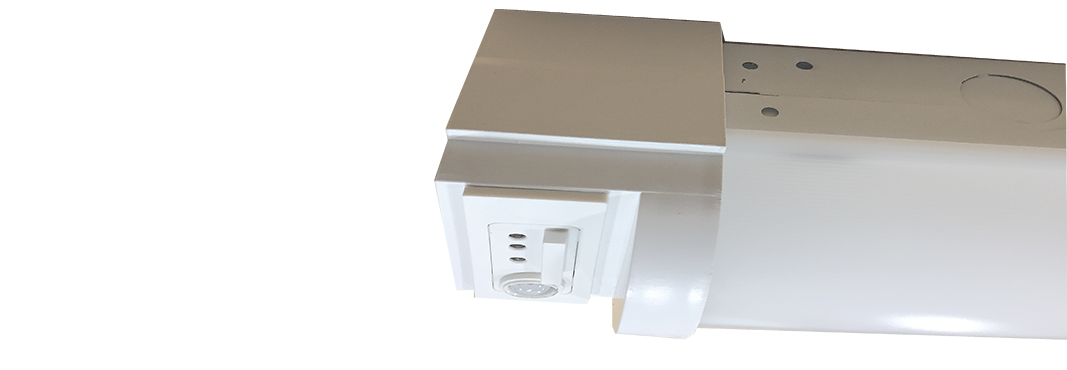

Standalone and Bluetooth control options allow luminaire controllability, contributing to additional energy savings. Refer to page 5 for more information.
Additional Options

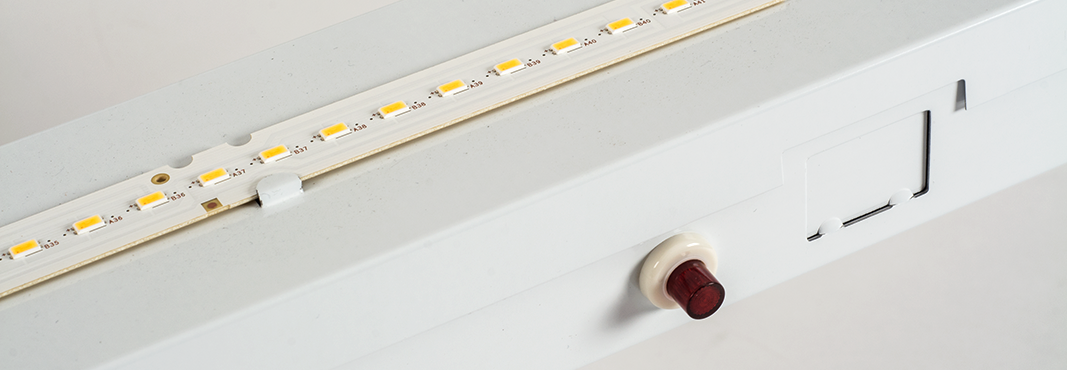

• CEC Title 20 Compliant factory and field installable battery backup options available
• Field-installed wireguard kit available
• Single or bulk packaging available to suit job installation needs
Installation
• Surface and suspended mounting options

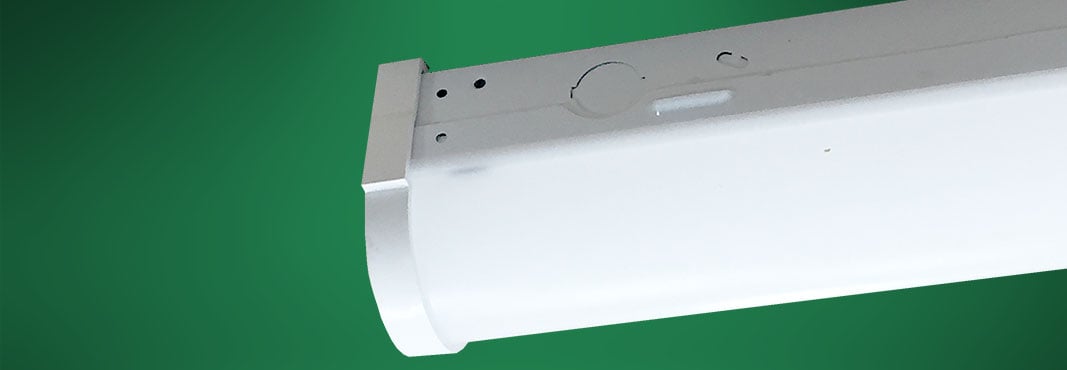

• Constructions allow for a continuous run. Wire harness option offers left, right, and center electrical connections for continuous run fixtures and provides a "quick connect system" between fixtures for labor savings and ease of installation
Certifications & Listings
• cULus Listed
• Suitable for Damp Locations
• DesignLights Consortium Standard qualified luminaire; Visit DLC QPL for listed models
• BAA (Buy American Act) Compliant
• BABA (Build America Buy America) Compliant
