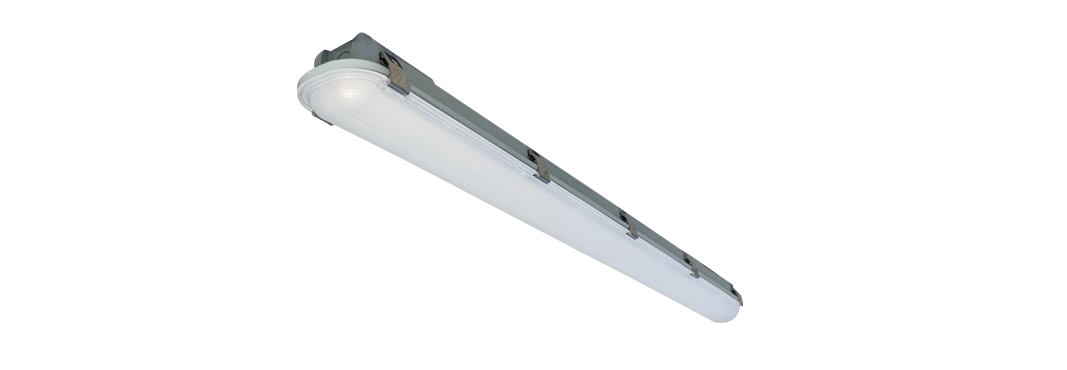

TritonPro™ LED Slimline Lumen Select Vaportight, Gen 1 | VTSS1
Overview
Multi-purpose, cost-effective linear LED fixture. Ideal for replacing linear fixtures in demanding environments to prevent corrosion from water intrusion and damage from impact. The narrow width, light-weight and low profile design is suitable for many indoor and outdoor applications.
Specifications
Features
•Easily accessible dip switchesallow the user to select CCT and
lumen output in the field providing
flexibility to adapt to different
work environment dynamics.
Select between three CCT
(3500K/4000K/5000K) and three
lumen output
•Durable, narrow, lightweight 4'
construction
• Stainless steel latches
• Stainless steel surface or
suspended mounting brackets
come standard with the fixture
•Impact resistant polycarbonate
lens withstands rugged
applications
•Minimum 80 CRI
Electrical
• Available in 120v-277v• Standard 0-10v dimming drivers
• Power factor >0.9*
• Total harmonic distortion < 20%*
*Note: Varies based on option
Operating Range
• -40ºC to 40ºC (-40ºF to 104ºF)
Certifications & Listings
• cULus Listed
• UL wet rated
• IP66 rated
• IK10 Impact Rating
• NEMA4X
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models
Rated Life
• Varies depending on type. See data sheet for more information.
