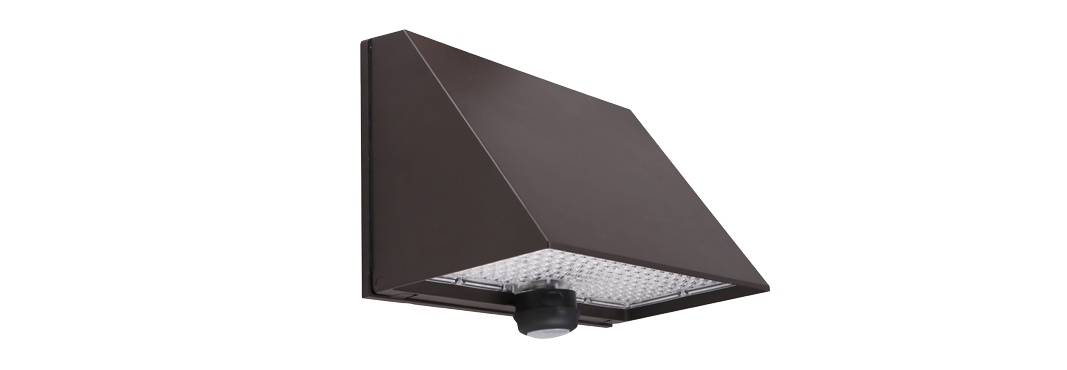

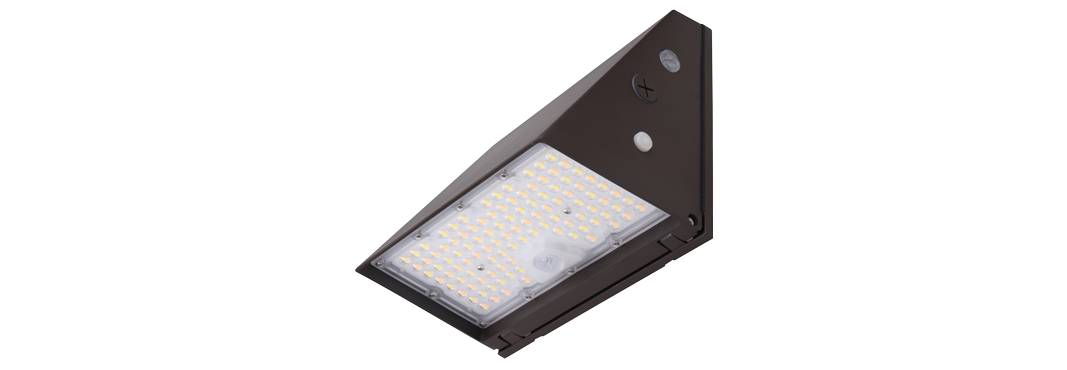

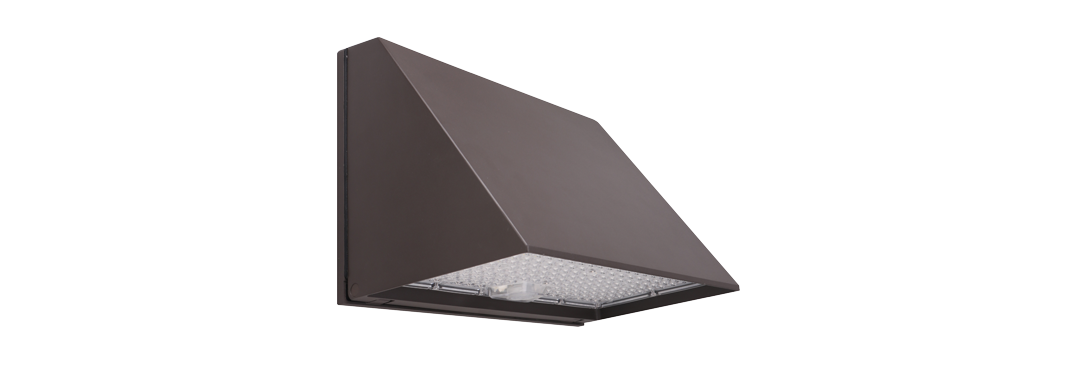

HARRIS Lumen Select Wall Pack Full Cutoff, Gen 2 | LSWF2

Intended Use

The HARRIS LSWF2 is the ideal full cutoff light output for exterior walls, entrance ways, pathways and steps. The HARRIS LSWF2 delivers energy savings and reduced maintenance costs while effortlessly integrating in any exterior application with its sleek design. It is the ultimate flexible wall pack fixture with lumen output and color temperature selection at the point of installation.

Construction

• Die-cast aluminum housing with UV stabilized powder coat finish for harsh outdoor environments. Bronze fixture housing color is standard
• UV resistant polycarbonate lens
• Full cutoff Type III light distribution
• Meets full cutoff requirements at 90º horizontal

Electrical

• Available in 120v-277v
• Standard 0-10v Dimming Drivers
• Power Factor >0.90*
• 10kV/5kA Surge Protection Standard
• Total Harmonic Distortion < 20%*
*Note: Varies based on option

Control and Sensor Options

• Integrated photocell standard
• Field installed control and sensor options

Additional Options

• Factory or field installed battery back up available in 8w. Certified in CA Title 20

Installation

• Back plated design with template to mount directly over a standard recessed junction box or for surface mounting
• Accessible dip switches from the outside allow the user to select CCT and lumen output in the field providing flexibility to adapt to different environment dynamics
• Three different options deliver between 3,000 and 19,000 lumen outputs. Efficacy up to 165 LPW
• Field adjustable CCT between 3000K, 4000K, and 5000K
• Latest generation of LED technology enables fixture to run at lower wattages resulting in additional energy savings
• 80 CRI Minimum

Fixture Certifications & Listings

• cUL/cULus Listed
• UL Wet Listed
• Dark Sky Compliant. DRK order option must be selected to meet Dark Sky International approval criteria of 3000K
• IP65 Rated
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models
