HARRIS Lumen Select Wall Pack Semi-Cutoff, Gen 2 | LSWS2
Overview
Specifications
Intended Use

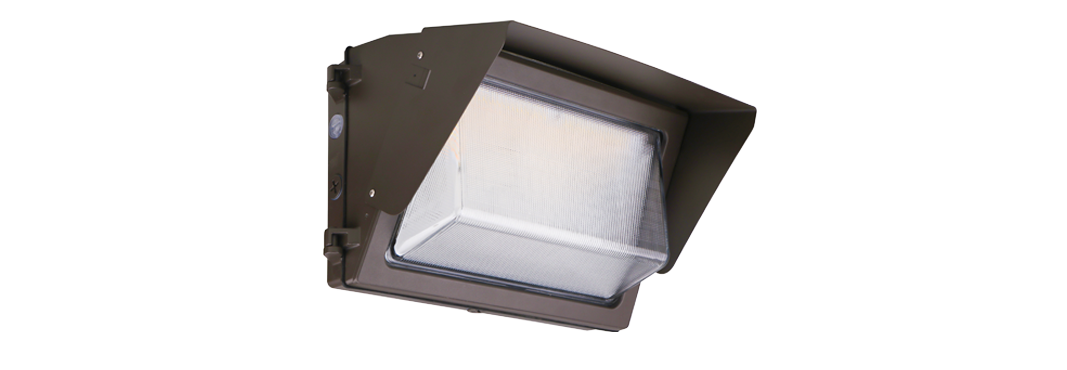

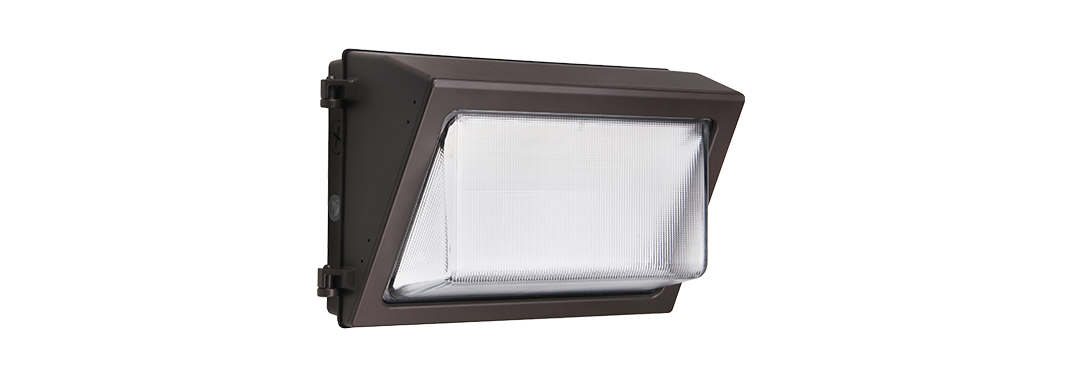

The HARRIS LSWS2 is a traditional style, high performance family of wall packs that replaces existing traditional style wall packs with same size and look. The HARRIS LSWS2 delivers energy savings and reduced maintenance costs while effortlessly integrating in any exterior application. It is the ultimate flexible wall pack fixture with lumen output and color temperature selection at the point of installation.
Construction
• Die-cast aluminum housing with UV stabilized powder coat finish for harsh outdoor environments. Bronze fixture housing color is standard
• Heat and impact resistant borosilicate glass lens
Electrical
• Available in 120v-277v
• Standard 0-10v Dimming Drivers
• Power Factor >0.90*
• 10kV/5kA Surge Protection Standard
• Total Harmonic Distortion < 20%*
*Note: Varies based on option
Control and Sensor Options

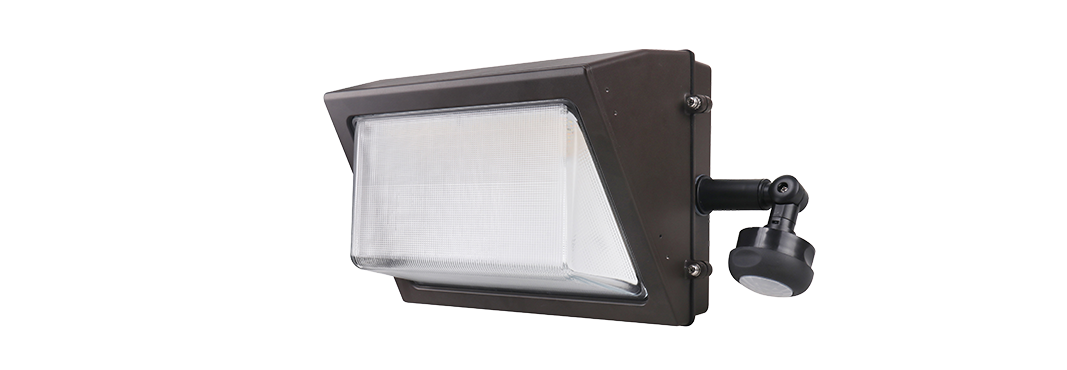

• Integrated photocell standard
• Field installed control and sensor options
Additional Options

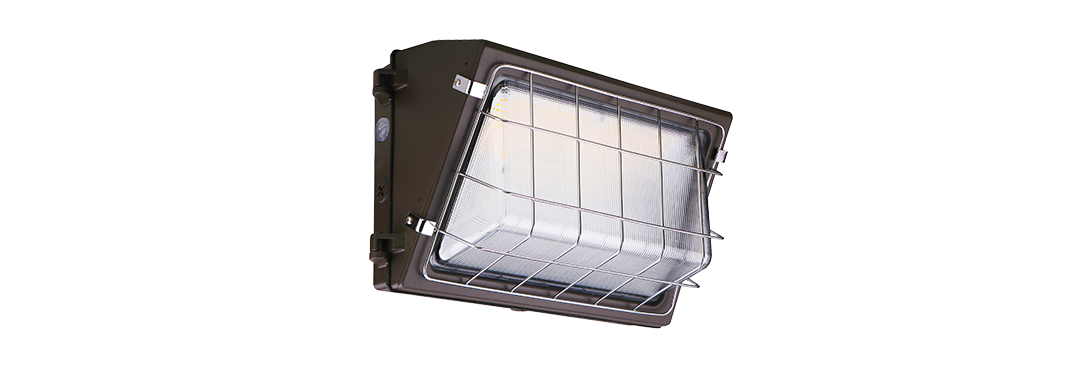

• Wireguard field installed kit available
• Light shield field installed kit available
• Factory or field installed battery backup available in 8w. Certified in CA Title 20
Installation
• Back plated design with template to mount directly over a standard recessed junction box or for surface mounting
• Accessible dip switches from the outside allow the user to select CCT and lumen output in the field providing flexibility to adapt to different environment dynamics
• Three different options deliver between 3,000 and 19,000 lumen outputs. Efficacy up to 162 LPW
• Field adjustable CCT between 3000K, 4000K, and 5000K
• Latest generation of LED technology enables fixture to run at lower wattages resulting in additional energy savings
• 80 CRI minimum
Fixture Certifications & Listings
• cUL/cULus Listed
• UL Wet Listed
• IP65 Rated
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models
