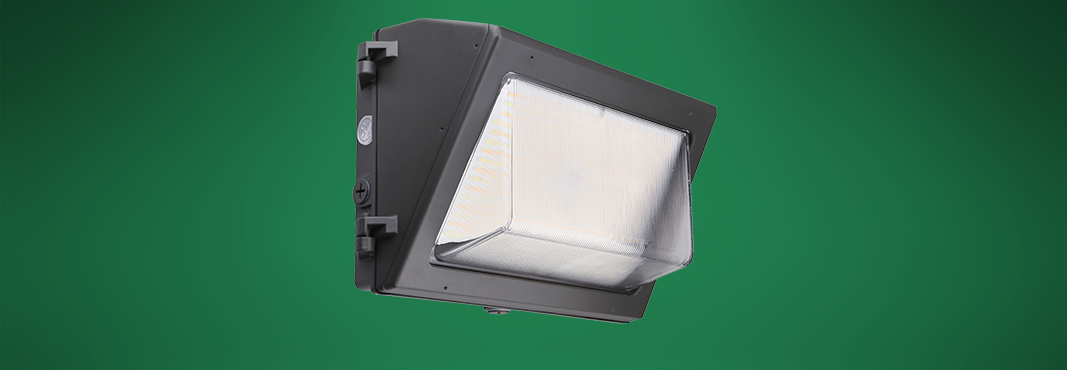

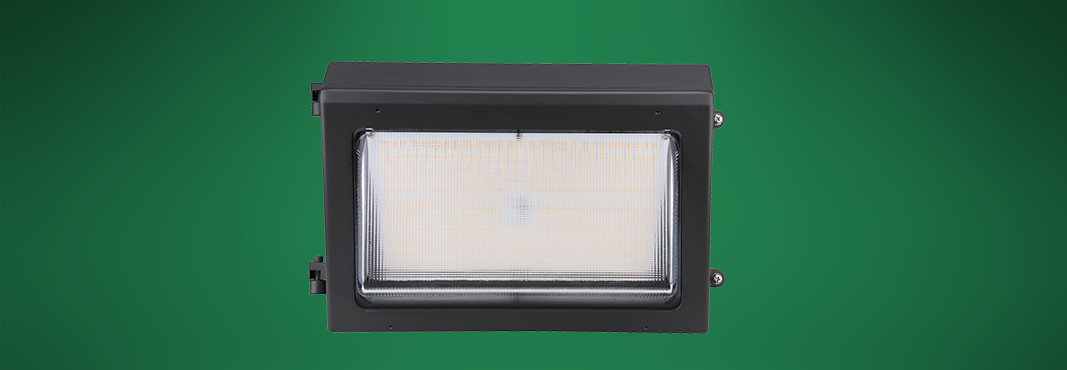

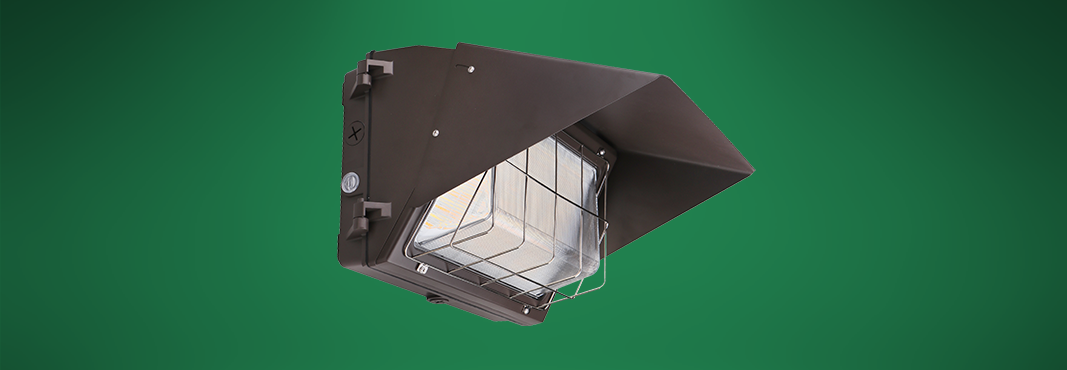

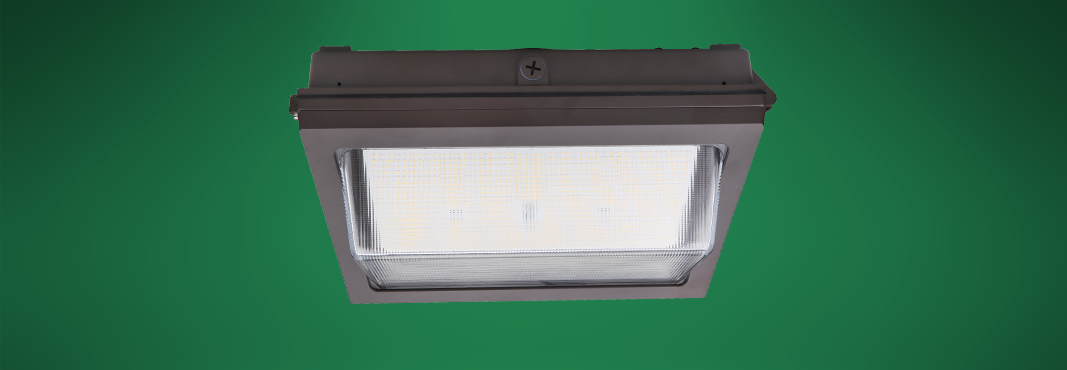

HARRIS Lumen Select Wall Pack Semi-Cutoff | LSWS1

  • DLC Premium
  • UL Listed
  • UL Wet Location

Overview

The ultimate flexible wall pack fixture with lumen output and color temperature selection at the point of installation. The HARRIS LSWS1 is a traditional style, high performance family of wall packs that ideally replaces existing traditional style wall packs with same size and look. The family includes 11 different lumen outputs to meet various exterior security requirements. Ideal to replace any existing HID wall packs and deliver exceptional energy savings.

Specifications

Features

• Die-cast aluminum housing with powder coat finish for harsh outdoor environments. Bronze fixture housing color is  standard. White and black housing colors available
• Heat and impact resistant borosilicate glass lens
• Three fixture sizes with selectable power/lumens between 3,000-18,000 lumen outputs provide flexibility to adjust in the field
• 80 CRI minimum; CCT selectable between 3000K, 4000K or 5000K

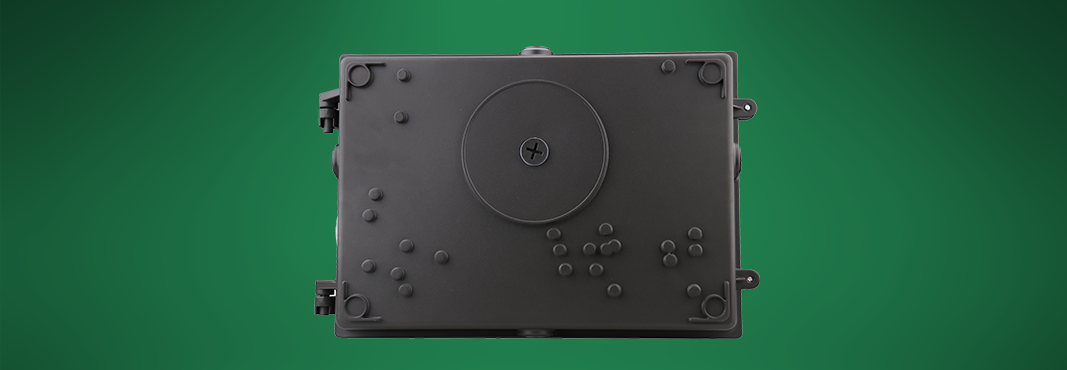

• Back plated design with template to mount directly over a standard recessed junction box or for surface mounting
• Integrated photocell standard
• PIR and microwave sensor options

Electrical

• Available in 120v-277v
• 0-10v continuous dimming
• Power factor >0.90
• Total harmonic distortion < 20%
• 10kV/5kA surge protection standard

Operating Range

•  -40ºC to 50ºC (-40ºF to 122ºF)

Certifications & Listings

• cUL/cULus listed
• UL wet listed
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies based on type. See data sheet for more information.
