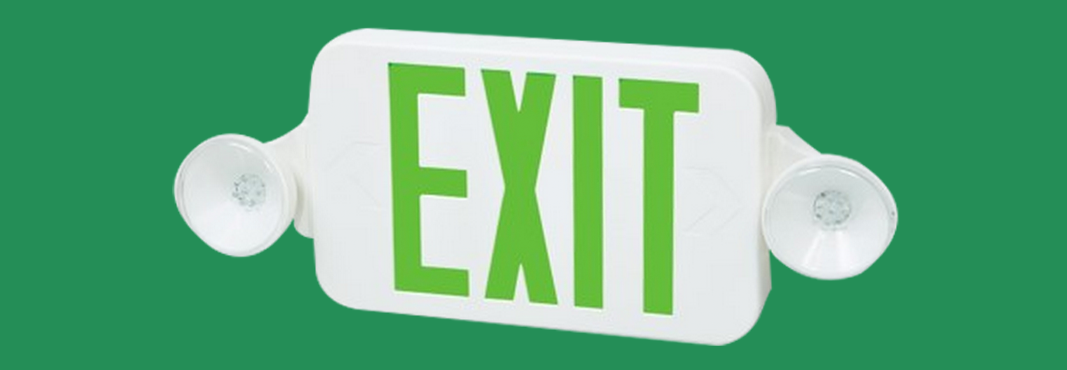

HARRIS LED Exit Sign & Emergency Combination | ECRUB

  • UL Listed

Overview

For locations where exit sign and emergency lighting are needed in the same area. Injection-molded, high impact, UV-stabilized, UL 94-o thermoplastic housing. 6” high red or green letters with 3/4” stroke chevron indicators. Single or dual sided. Compact low-profile design.

Specifications

Features

• Energy efficient LED technology exit sign
• Fully adjustable glare free LED lighting heads
• Includes maintenance-free NiCad battery
• Universal chevrons are easily snapped out for directional indication
• Housing includes extra faceplate for single or dual face application
• Push-to-test switch and LED charge indicator
• Wire guard available

Electrical

• 120v or 277v VAC operation. Normal power consumption of 5 or less watts. 90 minutes of emergency lighting with battery back-up option.

Operating Range

• 20ºC to 30ºC (68ºF to 86ºF)

Certifications & Listings

• UL Damp location listed
• NEC

Rated Life

• 50,000 hours
