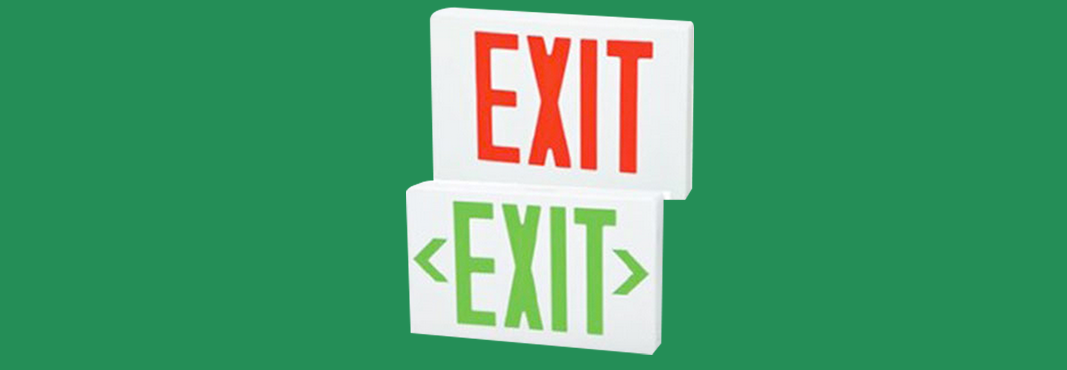

HARRIS LED Exit Signs | EXLUB
Overview
Locations where exit signs are needed
Specifications
Features
• Sleek modern design with energy efficient LED technology
• Ni-Cad Premium 3.6v battery
• Universal chevrons are easily swapped out for directional indication
• Housing includes extra faceplate for single or double sided application
• Push-to-test switch and LED charge indicator
• Self–diagnostic option runs a 15-minute test every 30 days as well as every 12 months
• Remote capable option provides 1w extra capacity per head
• Wire guard option available
• Universal mounting pattern knockout in backplate for J-box mounting. Top mounting available
Certification & Listings
• UL 924
• UL Damp Location Rated
• CEC Title 20 compliant
Construction
Injection-molded, high impact, UV-stabilized, UL 94 V-0 thermoplastic housing. 6 inch high red or green letters with ¾” stroke chevron indicators. Single or dual sided.
Electrical
120v or 277v VAC operation. Normal power consumption less than 3.2w (red) and 3.8w (green). Compact low profile design in neutral finish. 90 minutes of emergency lighting with battery backup option.
Documents
Related Products

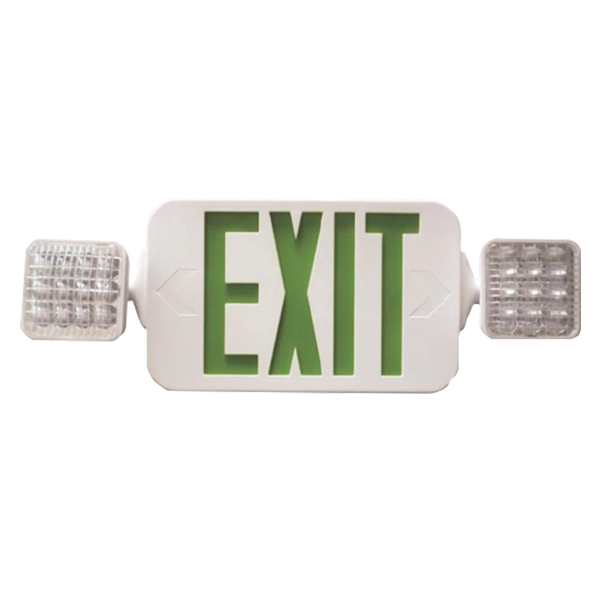

HARRIS LED Exit Signs & Emergency Combination | ECSUB
