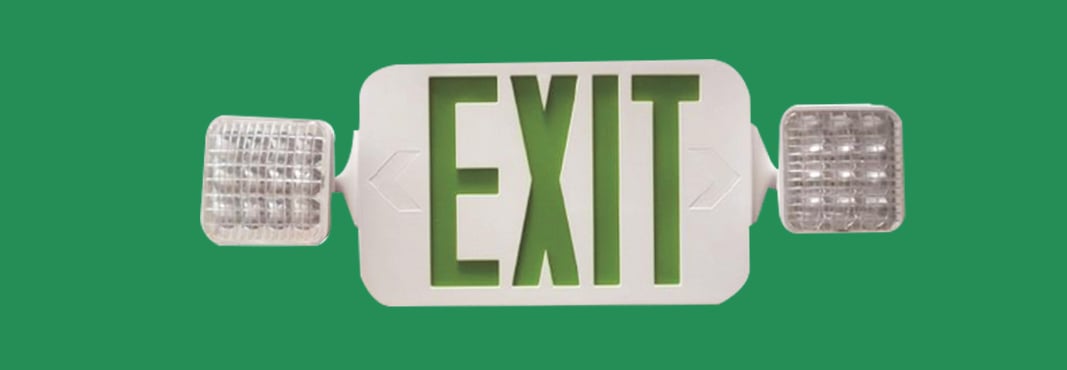

HARRIS LED Exit Signs & Emergency Combination | ECSUB
Overview
Locations where exit signs and emergency lighting are needed
Specifications
Features
• Fully adjustable, glare free LED lamp heads
• Ni-Cad Premium 3.6v battery
• Universal chevrons are easily snapped out for direction indication
• Housing includes extra faceplate for single or double sided face application
• Push-to-test switch and LED charge indicator
• Self-diagnostic option runs a 1-minute test every 30 days as well as a 30-minute test every 6 months
• Wire guard option available
• Remote capable option provides 1w extra capacity per head
• Universal mounting pattern knockout in backplate for J-box mounting. Top mounting available
Certifications & Listings
• UL 924
• UL Damp Location Rated
Construction
Injection-molded, high impact, UV-stabilized, UL 924 V-0 thermoplastic housing. 6” high red or green letters with 3/4” stroke chevron indicators. Single or dual sided. Compact low profile design in neutral finish.
Electrical
120v or 277v VAC operation. Normal power consumption less than 5w. 90 minutes of emergency lighting with battery backup option.
