HARRIS LED Architectural Flood Light, Gen 4 | FLGA4
Overview
The Harris FLGA4 is a cost effective and high-performance
family of flood luminaires. The family includes nine different
lumen outputs to meet most exterior requirements for parking
lots, driveways, walkways, and building exteriors. Ideal to replace
any existing HID floods and deliver exceptional energy savings.
family of flood luminaires. The family includes nine different
lumen outputs to meet most exterior requirements for parking
lots, driveways, walkways, and building exteriors. Ideal to replace
any existing HID floods and deliver exceptional energy savings.
Specifications
Construction

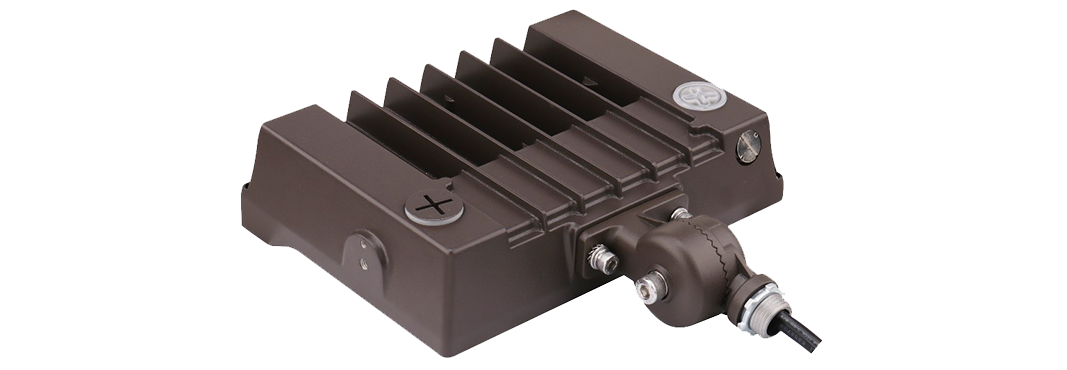

• Die-cast aluminum powder coated construction to withstand outdoor environments
• Anti-corrosion stainless steel hardware
• Clear Tempered Glass Lens
• NEMA Type 7Hx7V optics
• Field selectable lumens provide a late point adjustment at the installation site
• Field selectable CCT between 3000K, 4000K or 5000K
• Minimum 80 CRI
Electrical
• 120-277V Input
• Standard ON/OFF Photocell
• 0-10V diming
• 2kV Surge Protection for A1 (35w)
• 4kV Surge Protection for B1 (80w)
• 10kV Surge Protection for C1 (150w)
Ambient Operating Range
• -30ºC to 50ºC (-22ºF to 122ºF)
Installation

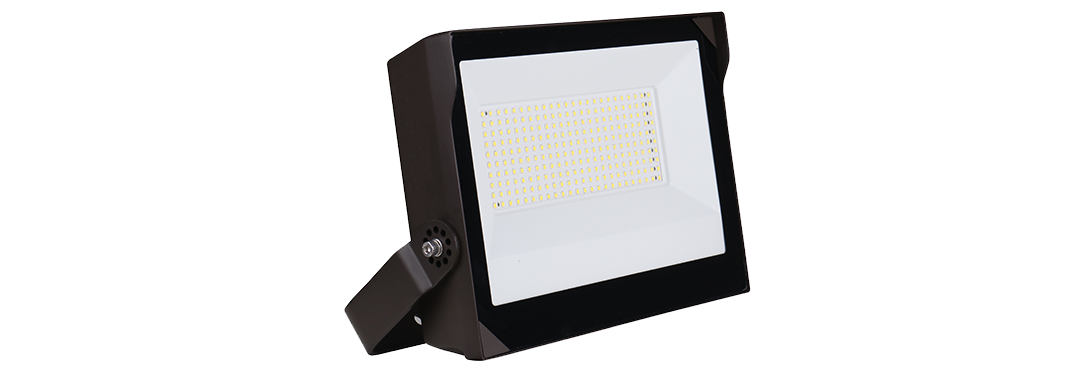

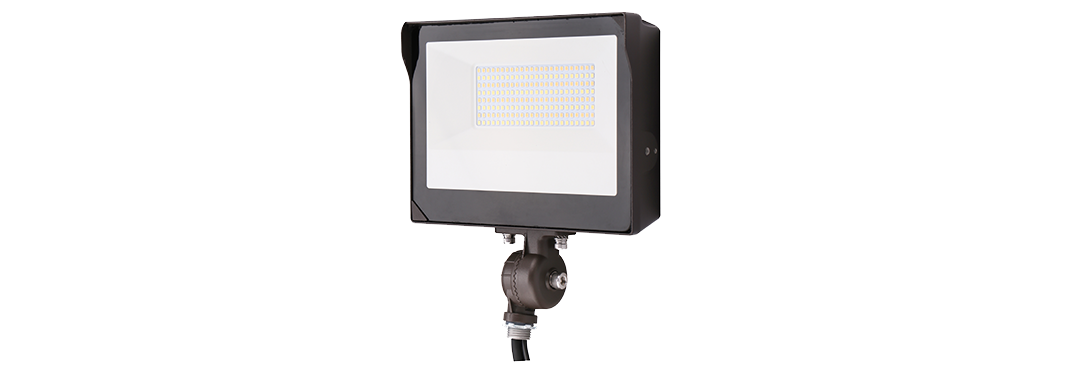

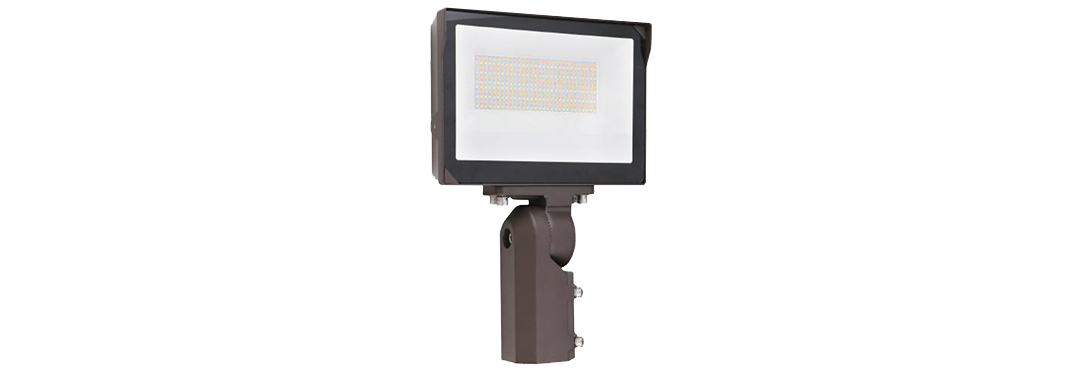

• Design to be mounted by Knuckle,
Slipfitter or Yoke.
Fixture Certifications & Listings
• UL/cUL Listed
• UL Listed for Wet Locations
• IP65 Rated
