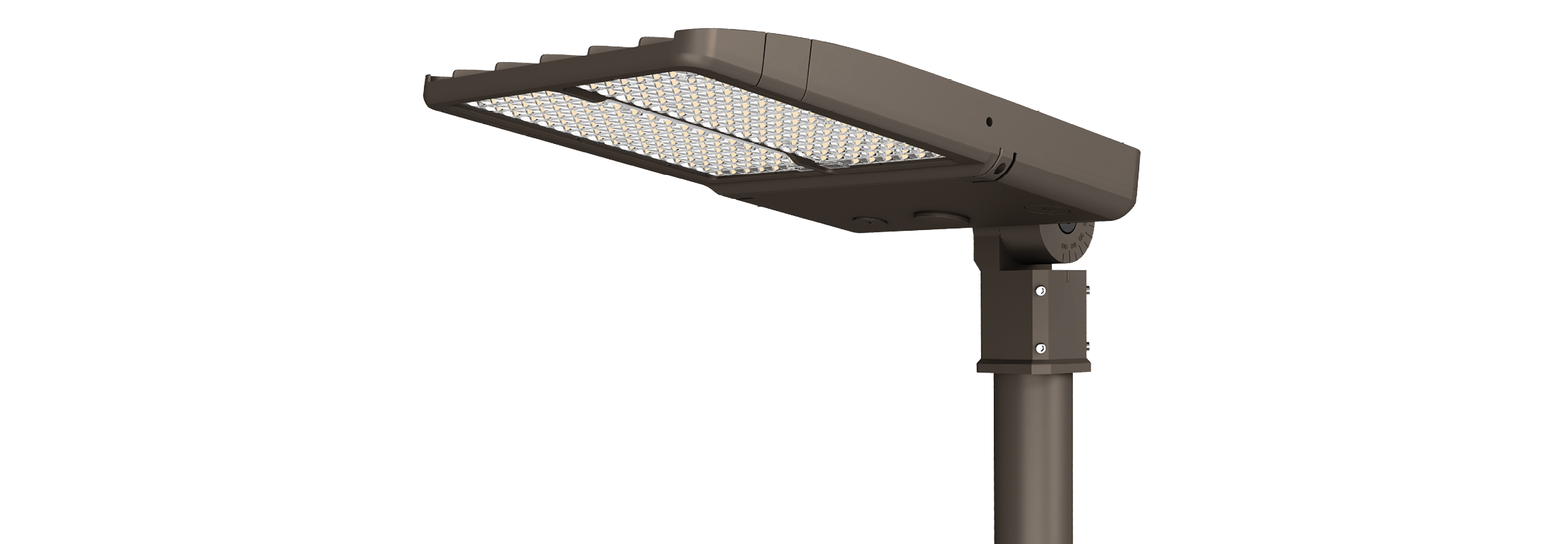

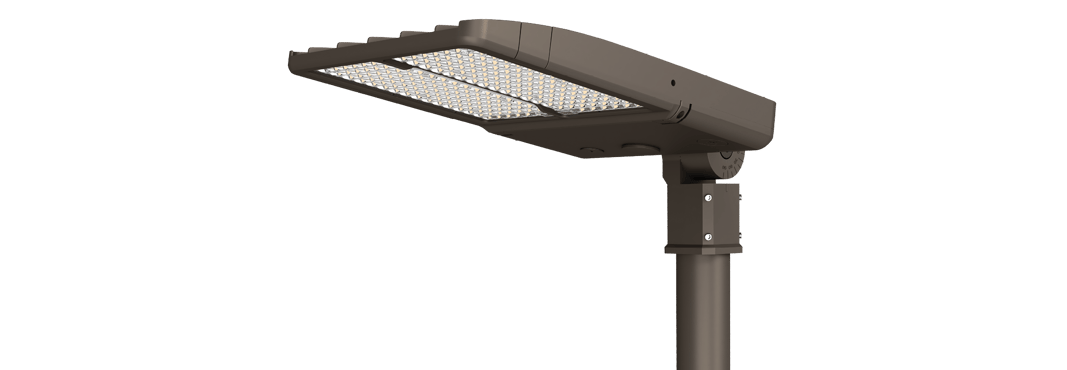

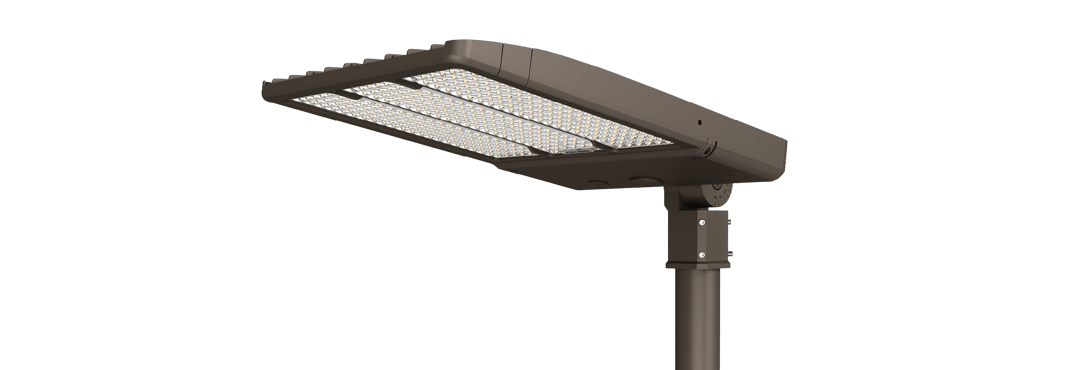

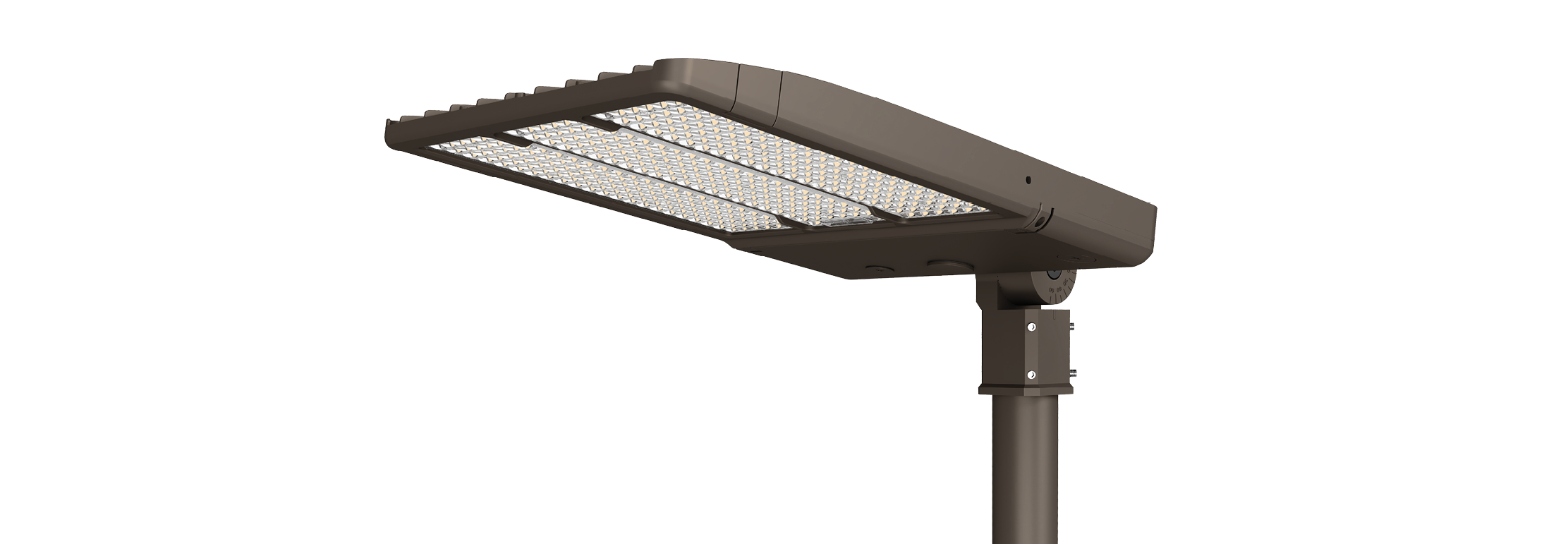

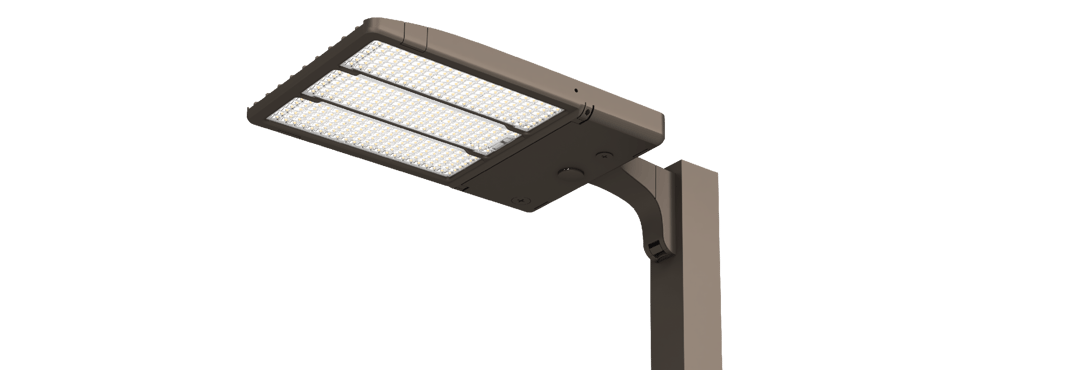

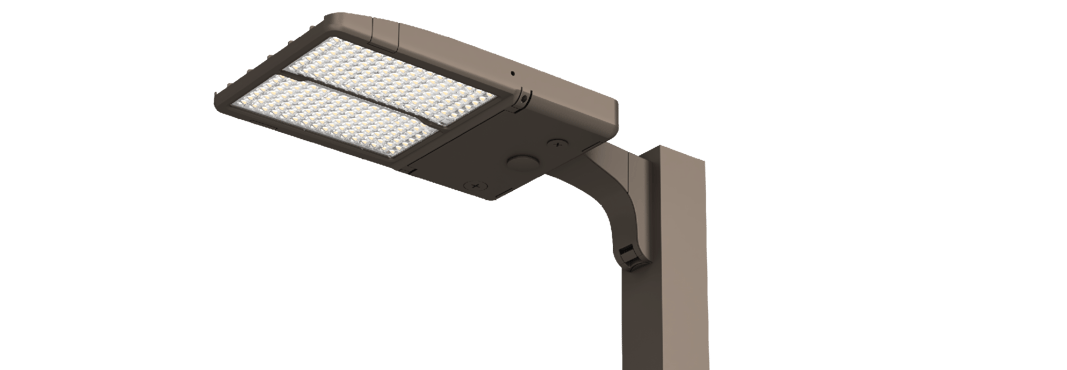

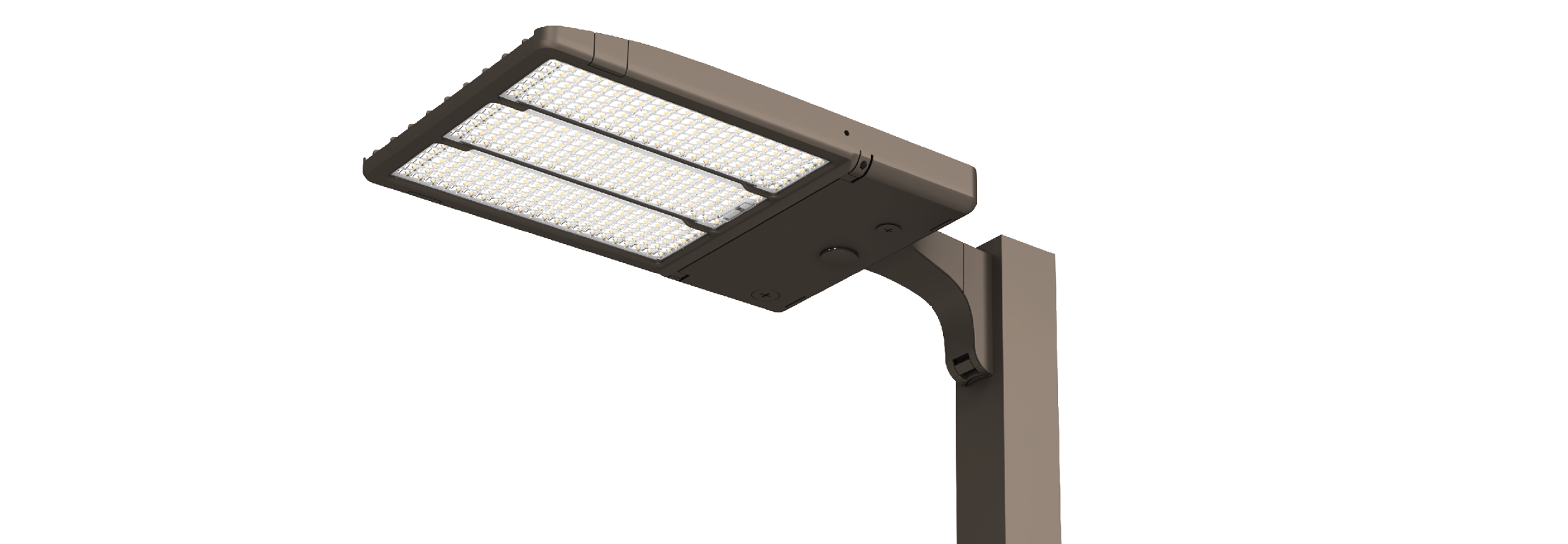

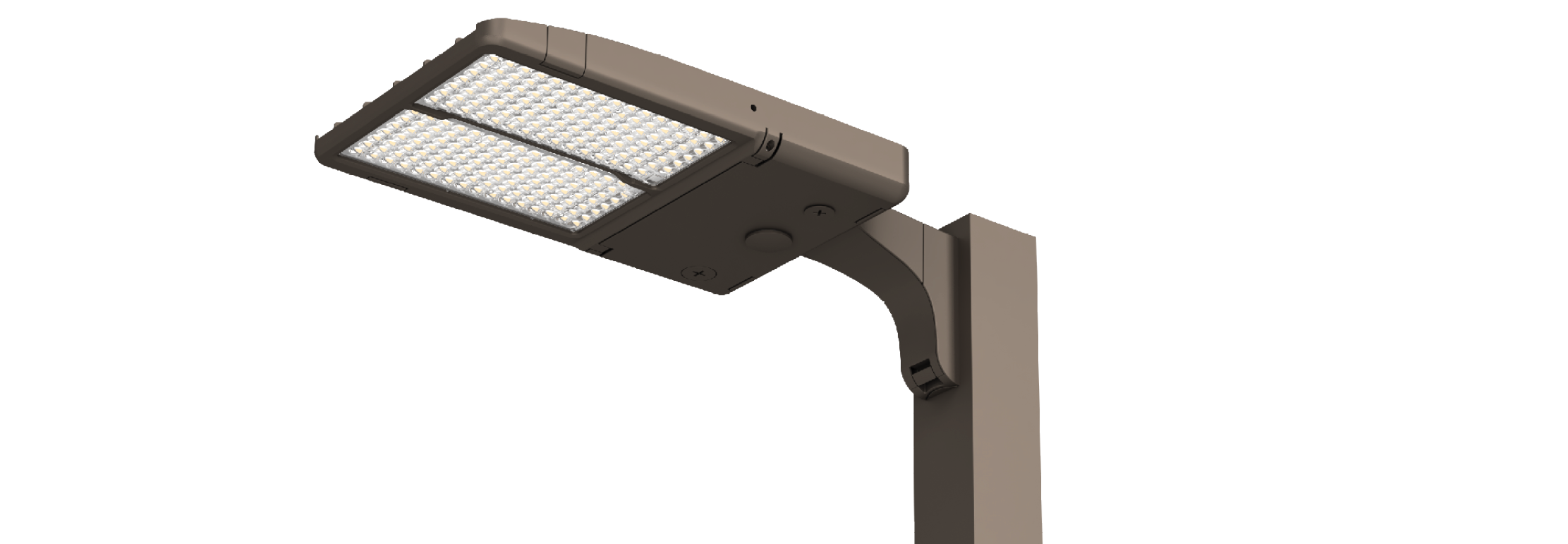

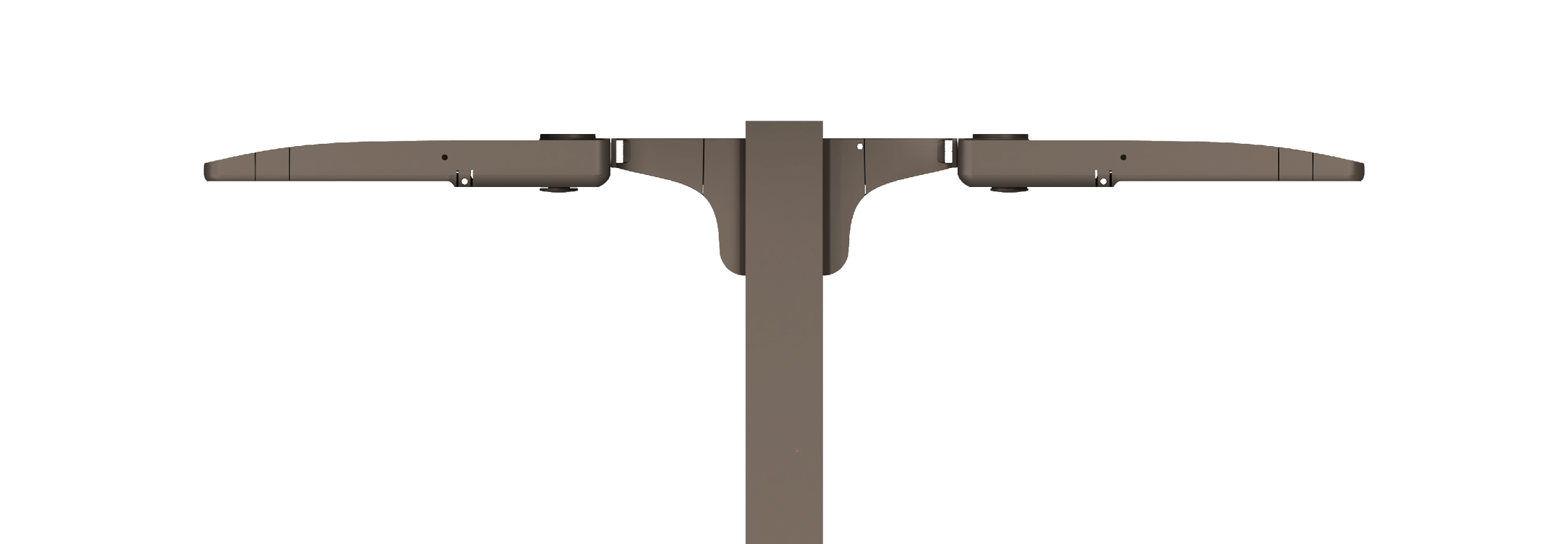

ISON® Area Light High Performance, Gen 2 | IAHP2
Overview
The IAHP2 industry leading lumen per watt performance maximizes energy savings and leads to the lowest total cost of ownership for exterior lighting.

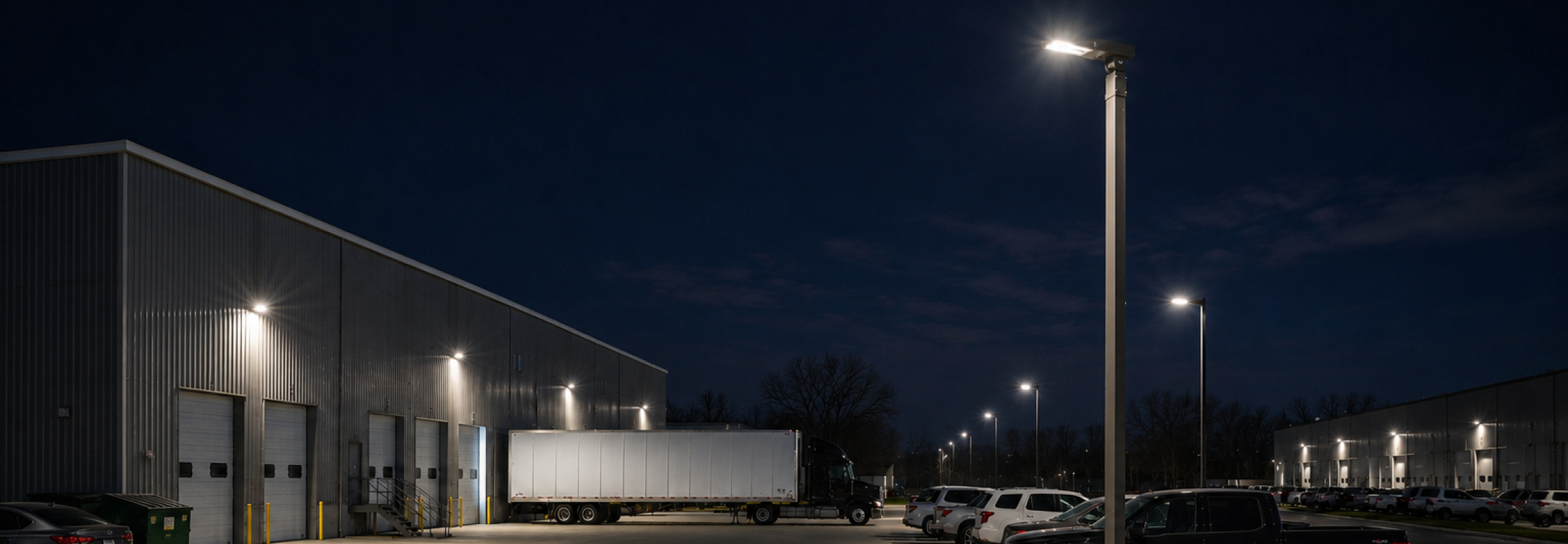

This fixture provides uniform distribution for area and site lighting in retail, commercial, and residential applications including driveways and parking areas. The IAHP2 provides multiple options to maximize versatility, allowing lumen output, optical beams, and smart integration to be selected for optimal lighting requirements.
Specifications
Construction
• Type III, IV, and Type V light distributions

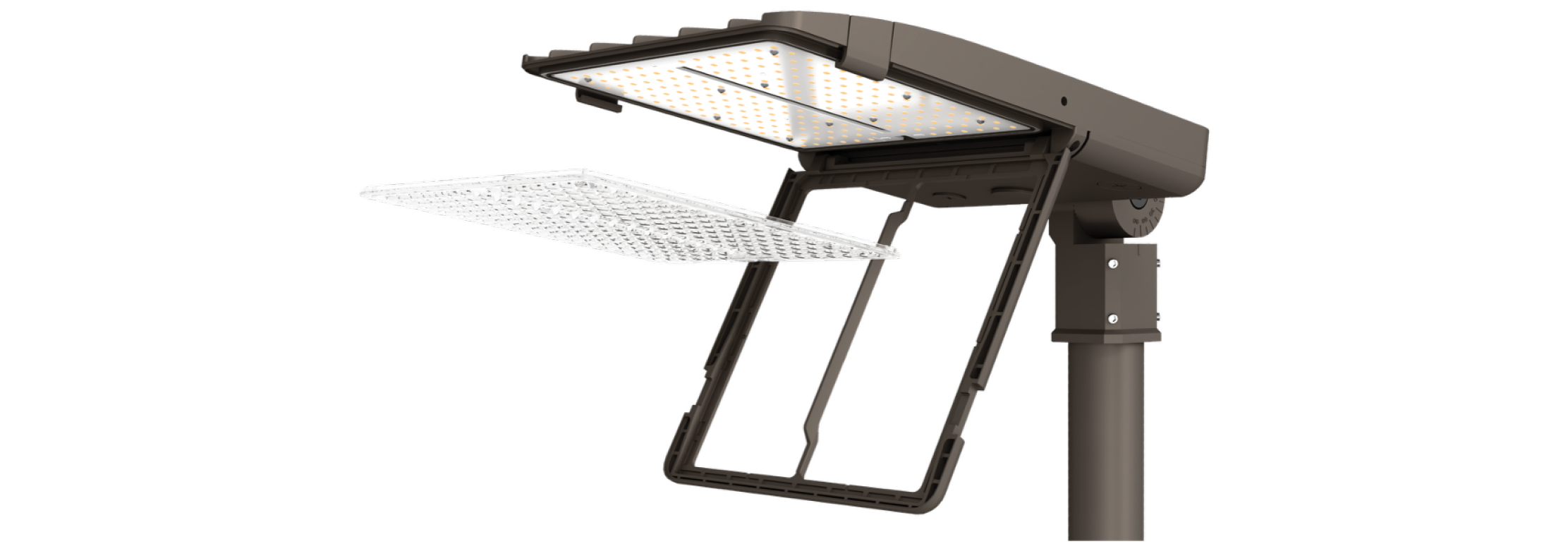

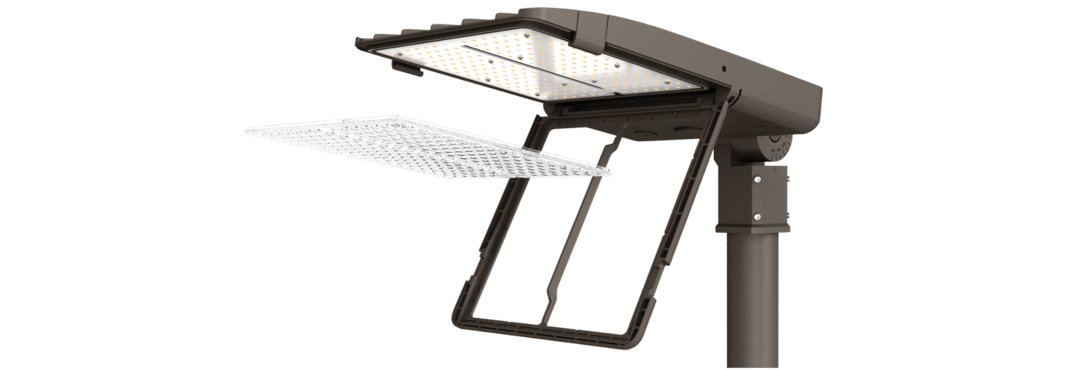

• Tool-less lens change capability for quick field replacement
• Tool-less access to electrical components for field maintenance and installation
• Field selectable lumens provide a late point adjustment at the installation site
• 9,000 to 52,000 lumens
• Nine lumen packages
• Anti-corrosion stainless steel hardware
• Heavy duty die-cast aluminum housing with external heat-sink for optimal thermal management
• Precision engineered lens made of optical grade polycarbonate for maximum light intensity
• Minimum 80 CRI
• Efficacy up to 195 LPW
Electrical
• Available in 120v-277v and 200v-480v
• 10kV/5kA surge protection standard
• 20kV/10kA surge protection available
• Optional 12v DC auxiliary power provided with 7-pin NEMA receptacle
• Power factor > .90
• Total harmonic distortion < 20%
• Includes pre-installed 3ft power cord
Controls & Sensor Options
• Optional factory installed NEMA 3/5/7-pin universal photocell receptacle
• Optional factory installed 12v DC auxiliary NEMA 7-pin photocell receptacle
• Photo control and occupancy sensor options available
• Fixture comes sensor ready for field installed motion sensors and wireless network controls
Additional Options
• Lens field install kits for each light distribution type (Type III, IV, V)
• Multiple mounting options
• Light shield kit options
Installation

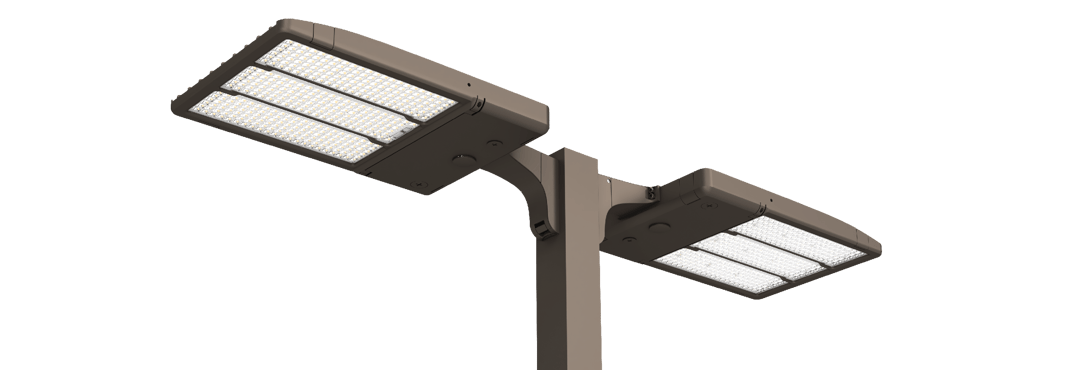

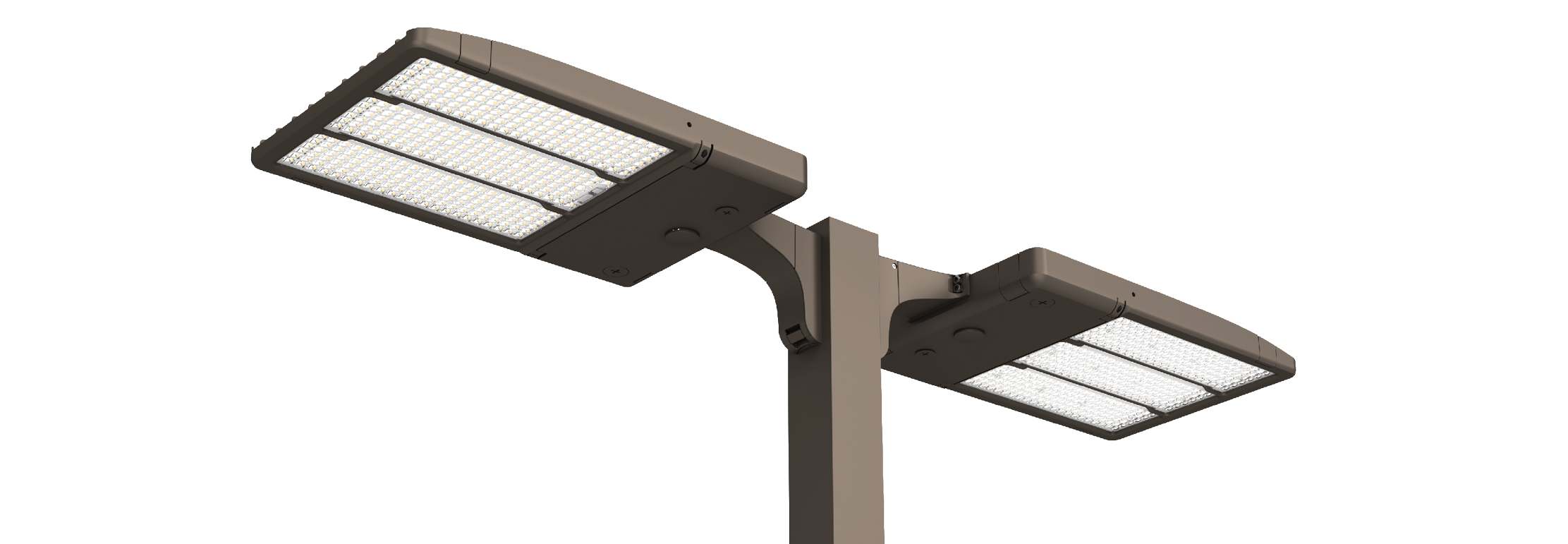

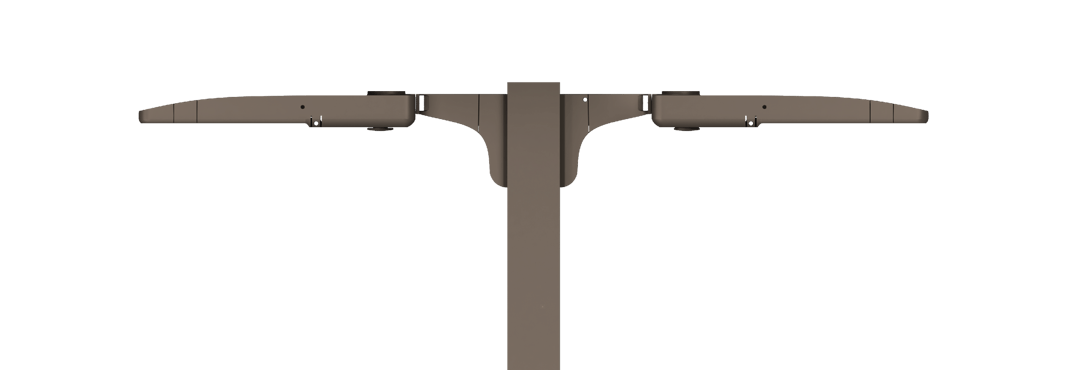

• Multiple mounting options available for round and square poles
• Die cast slipfitter for common 2-3/8” tenons

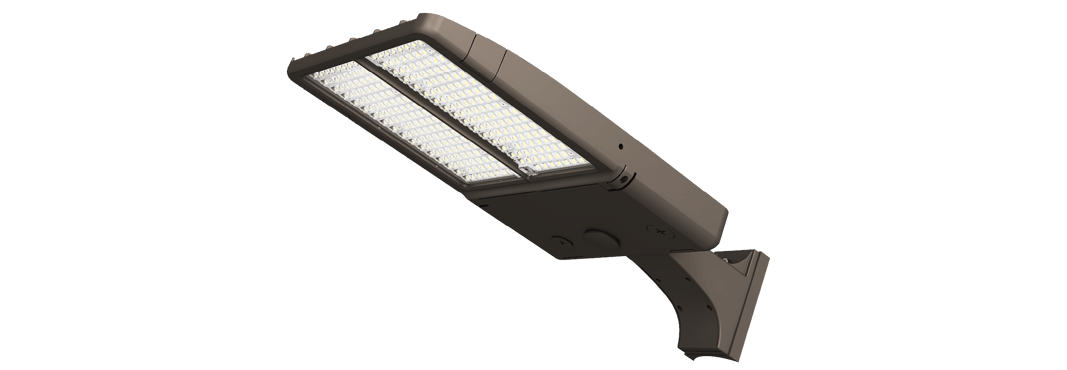

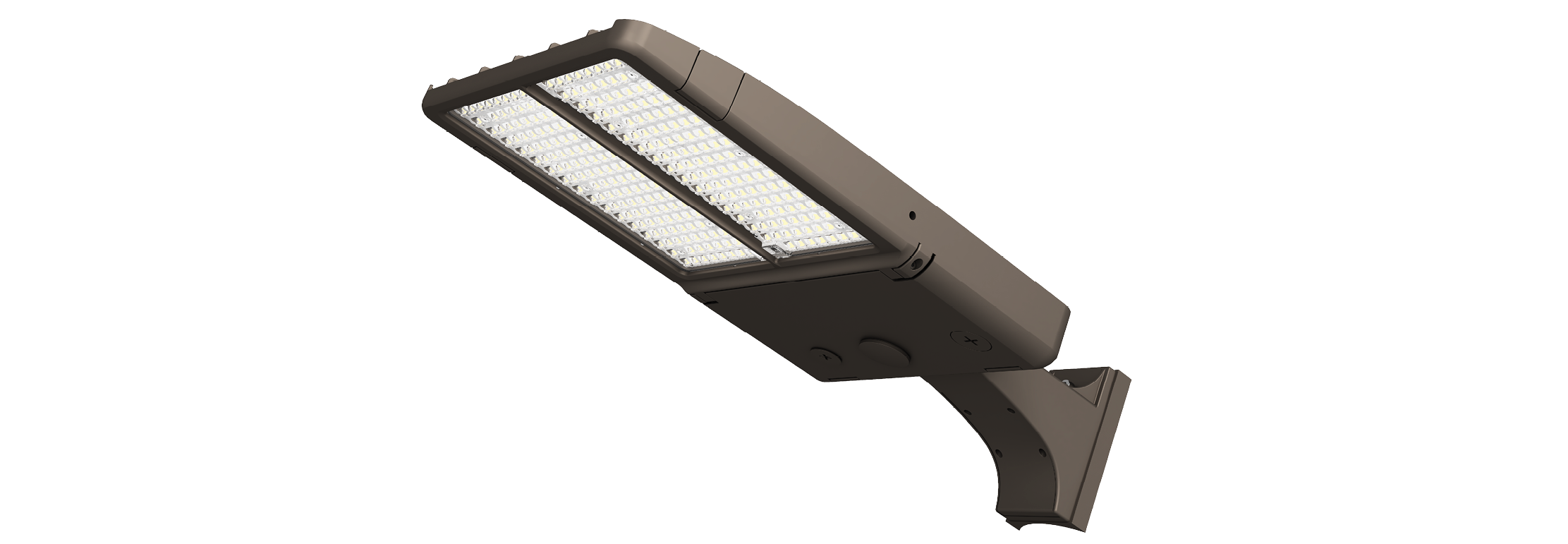

• Fully adjustable wall mount arm
• Trunnion mount for mounting to various surfaces
• Each kit is provided with stainless steel hardware
Fixture Certifications & Listings
• UL/cUL listed for wet locations
• RoHS compliant components
• IK09 impact rating
• IP65 rated
• 3.0 G vibration load rating per ANSI C136.31
• Title 24 Compliancy when using optional sensor
