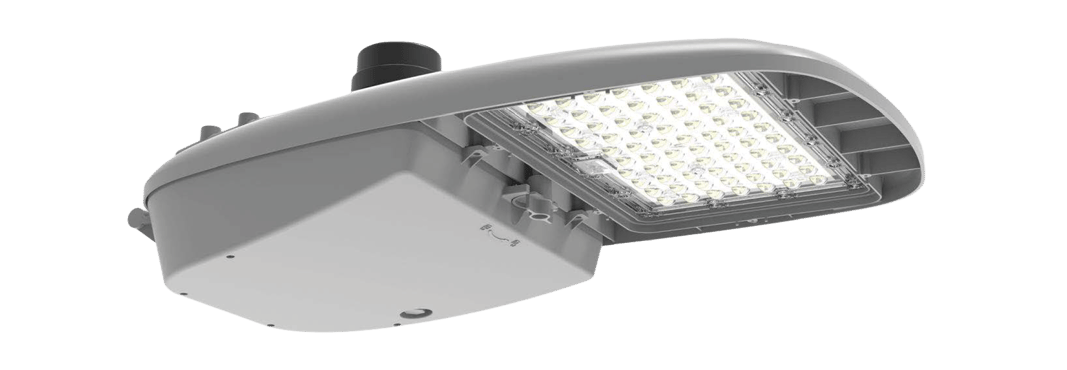

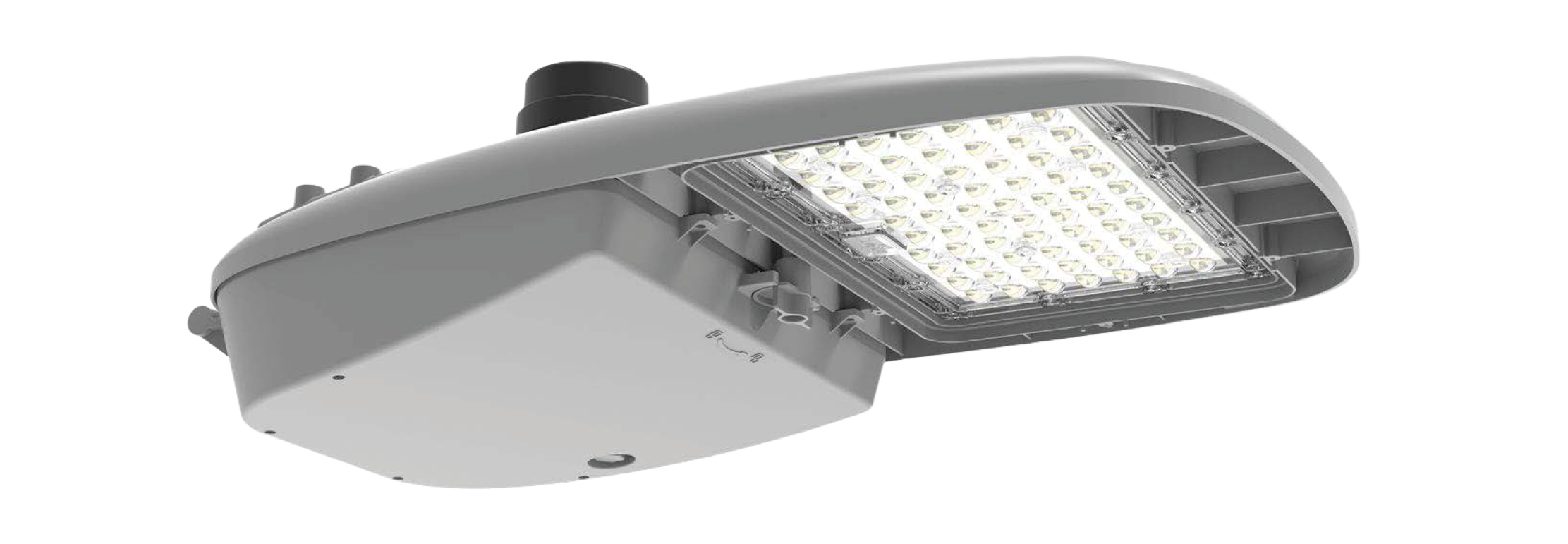

Harris LED Roadway Lighter, Gen 1 | RDWL1
Overview
The RDWL1 is ideal for roadway and municipal lighting projects, providing the reliability, efficiency, and performance required for public infrastructure while reducing energy costs and maintenance requirements.

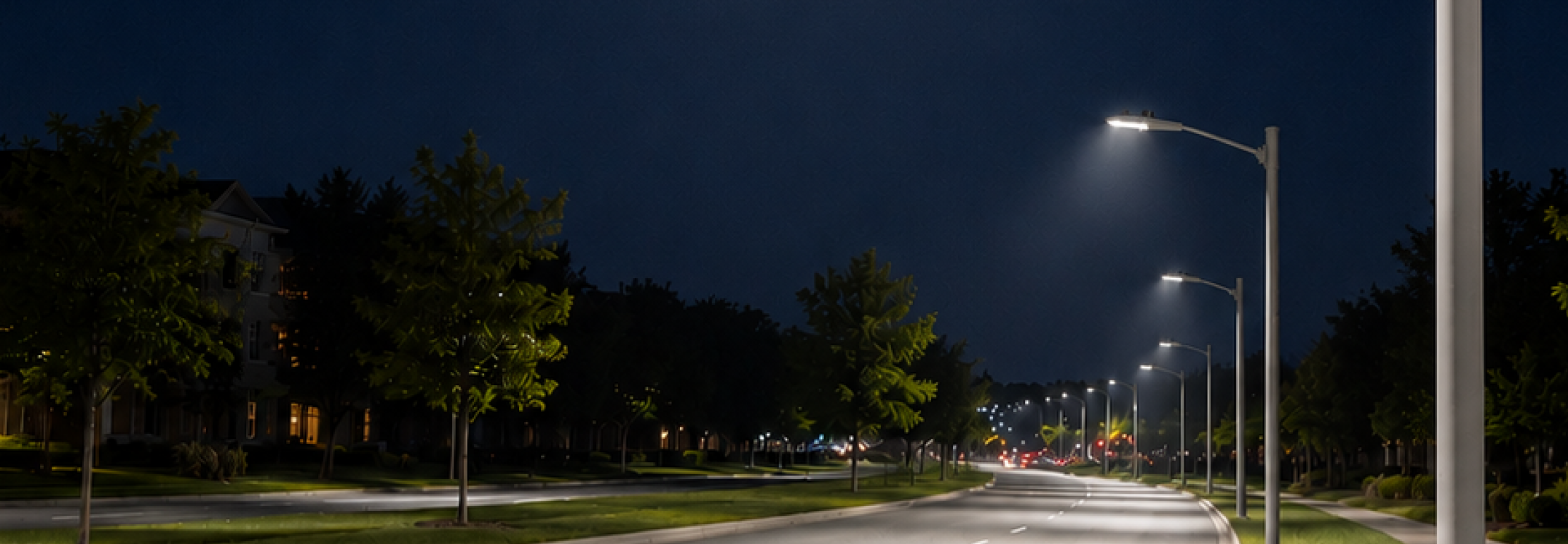

This fixture ensures visibility for both motorists and pedestrians by providing reliable illumination on roadways, intersections, and crossing points.
Specifications
Construction
• Type II, III light distributions
• 9,000 to 24,000 lumens
• Efficacy up to 172 LPW
• Tool-less access to electrical components for field maintenance and installation
• Anti-corrosion stainless steel hardware
• Heavy duty die-cast aluminum housing for optimal thermal management

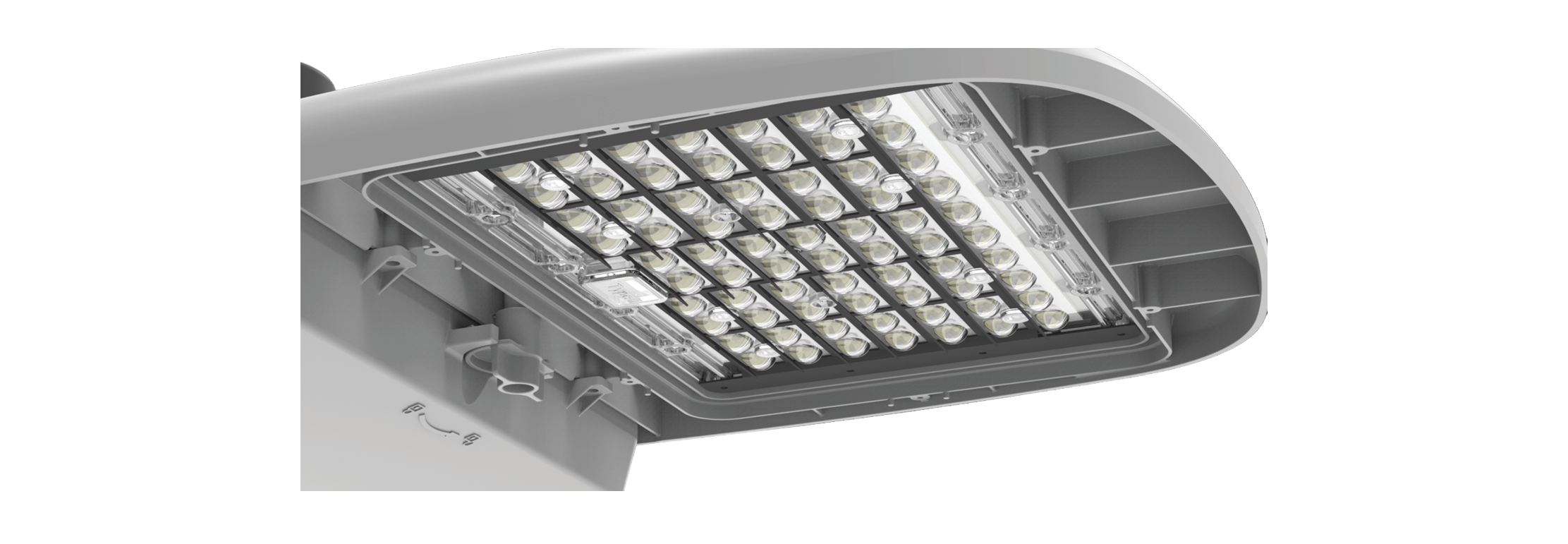

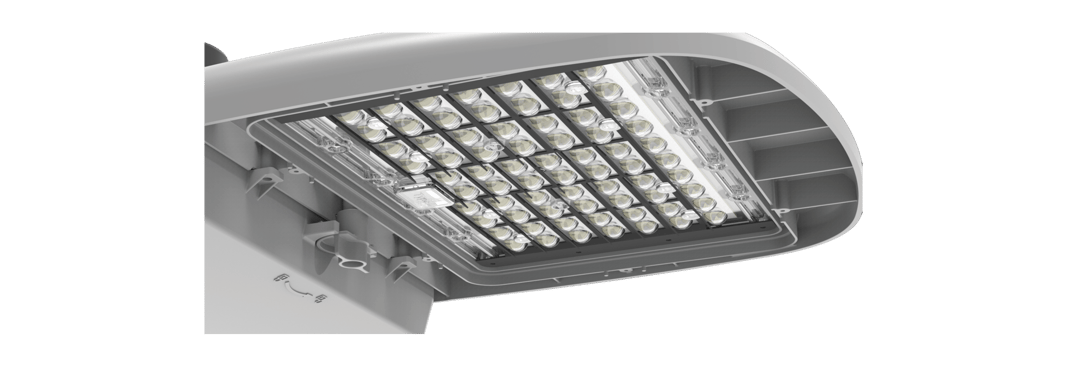

• Precision engineered lens made of optical grade polycarbonate for maximum light intensity
• Rated for ambient operating temperature -40°F to 104°F (-40°C to 40°C)
• Breather valve prevents condensation
Electrical
• Available in 120v-277v and 480v
• 10kV/5kA surge protection standard
• 20kV/10kA surge protection available
• Power Factor > .90
• Total harmonic distortion < 20%
• Terminal block accommodates #6 to 16 gauge wire
• Lumen output can be adjusted in the field (120-277v only). Factory set to specified lumen code
• Utility wattage label available
Controls & Sensor Options

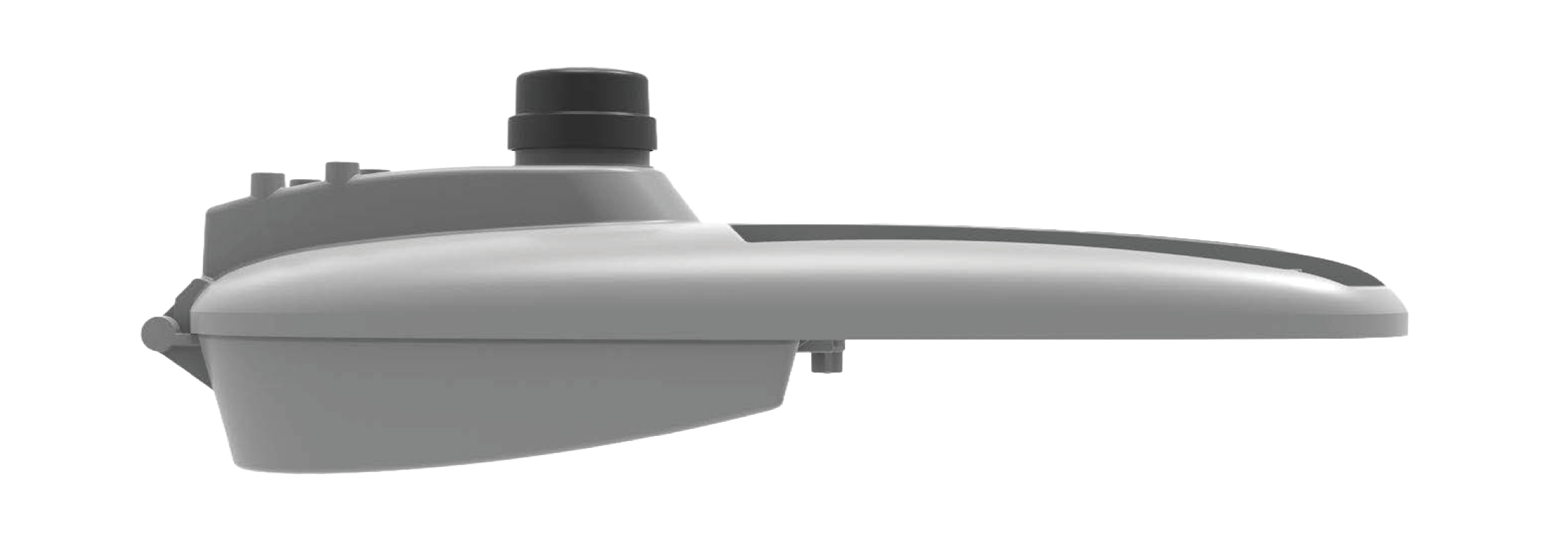

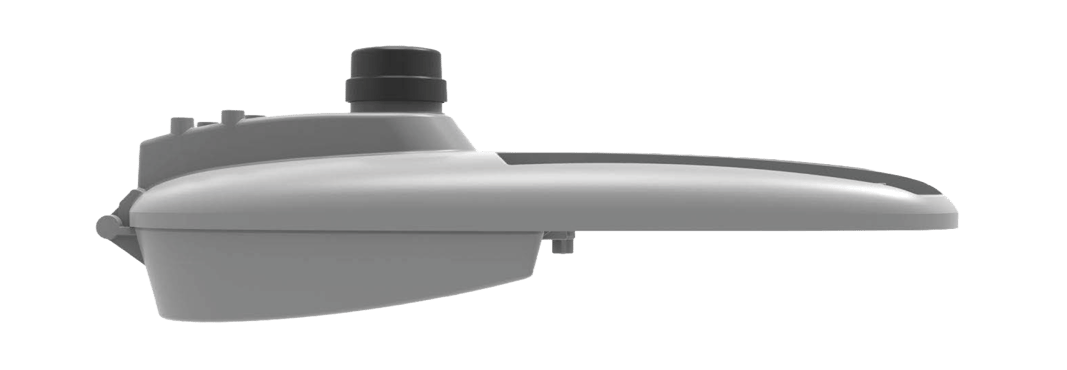

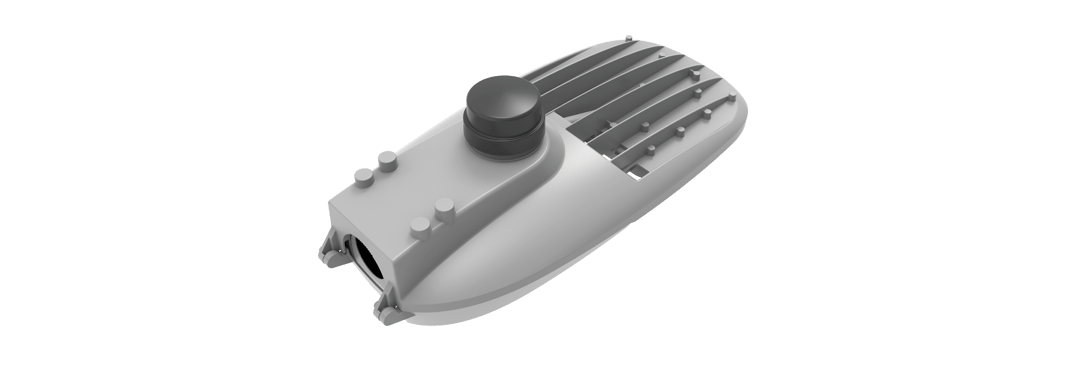

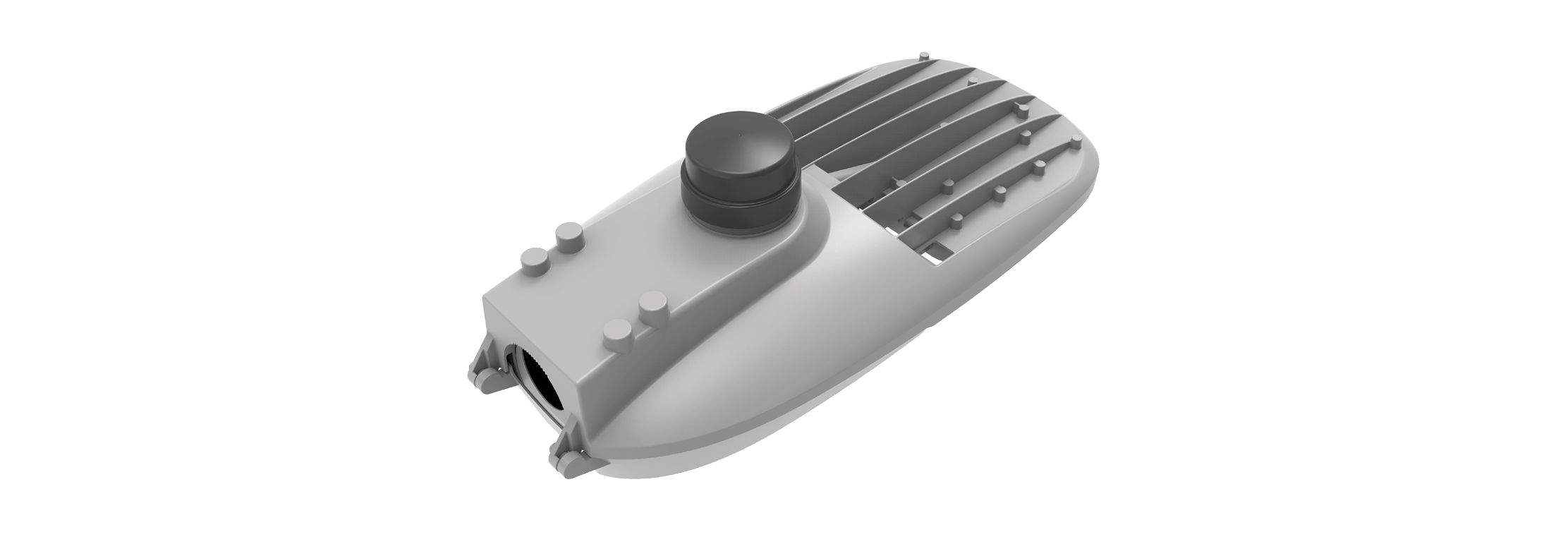

• Standard factory installed NEMA 7-pin photocell receptacle
• Shorting cap included
Additional Options
• Bird spike kit options
• Photocontrol options
• House side shield options
Installation
• Universal four-bolt slip fitter mounts to 1-1/4” to 2” (1-5/8” to 2-3/8” O.D.) diameter mast arm
• Mounting has levelling adjustment for ± 10° in 5° steps includes two axis bubble level
Fixture Certifications & Listings
• RoHS Compliant Components
• IK10 Impact Rating
• IP66 Rated
• UL Wet Rated
• 3.0 G Vibration load rating per ANSI C136.31
• Assembled in the U.S.A.
• Internal labeling per ANSI C136.22
• Optional Utility Wattage Label per ANSI C136.15
Photometric Tool
Related Products

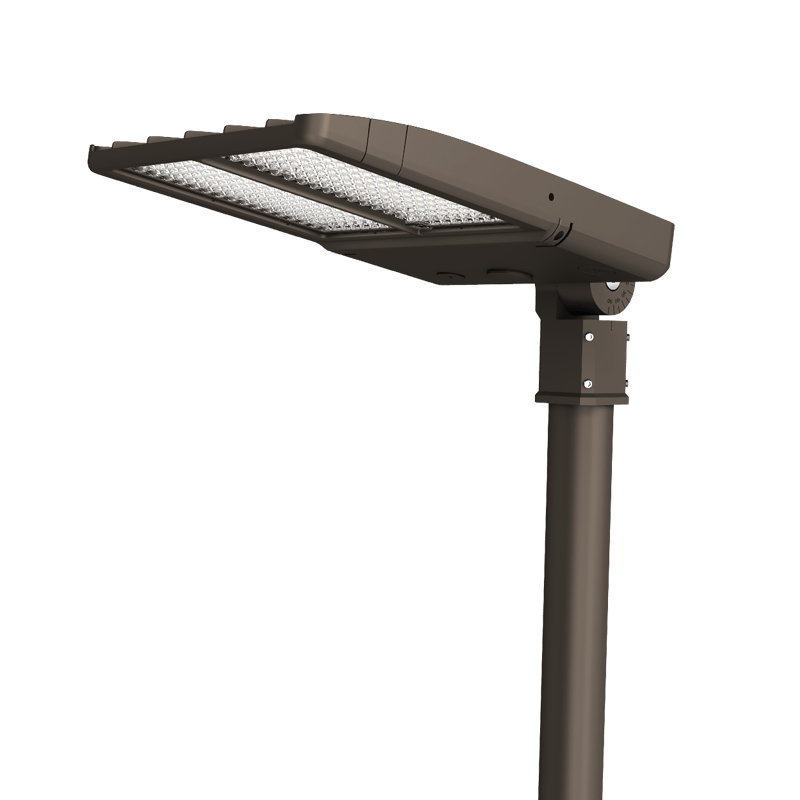

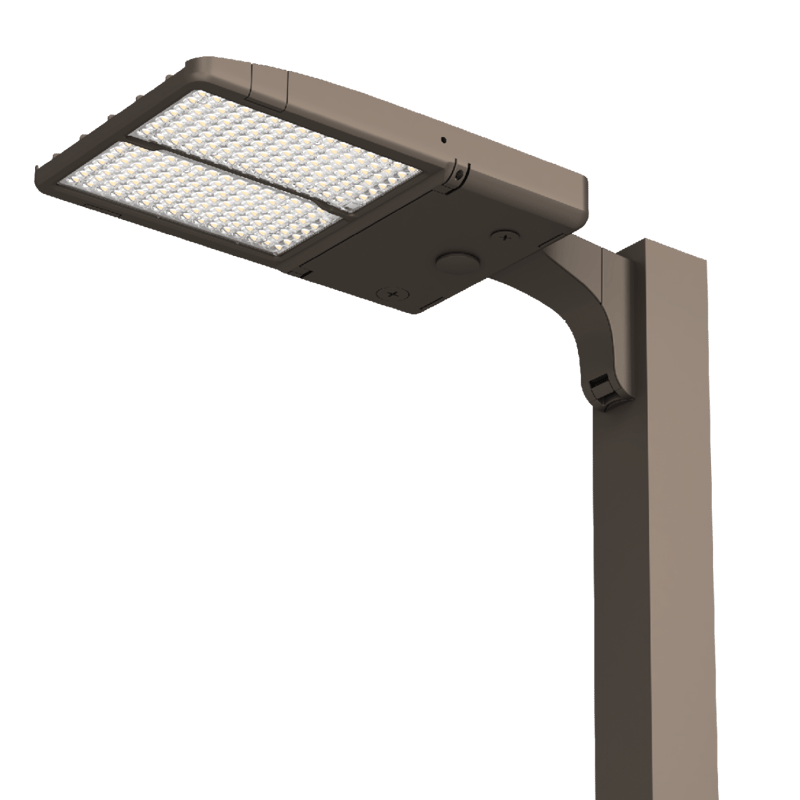

ISON® Area Light High Performance, Gen 2 | IAHP2
