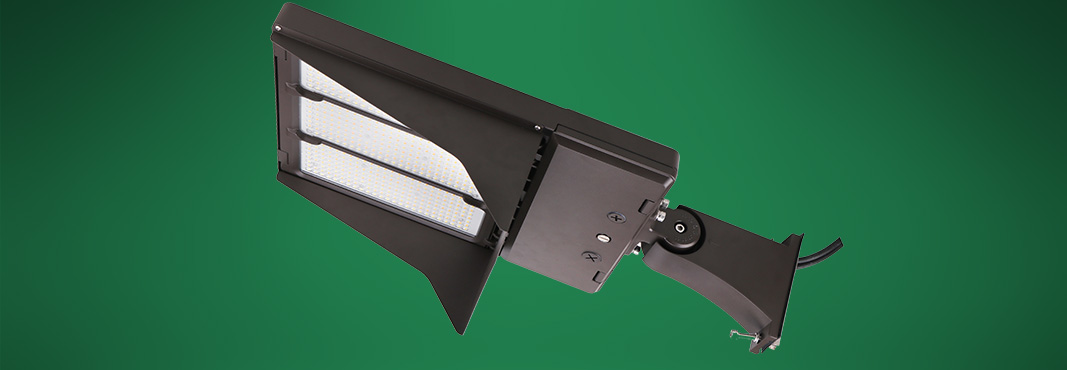

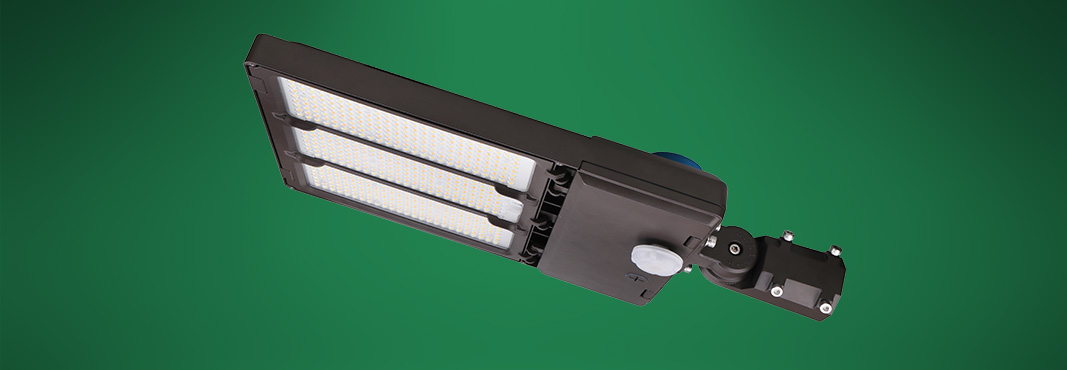

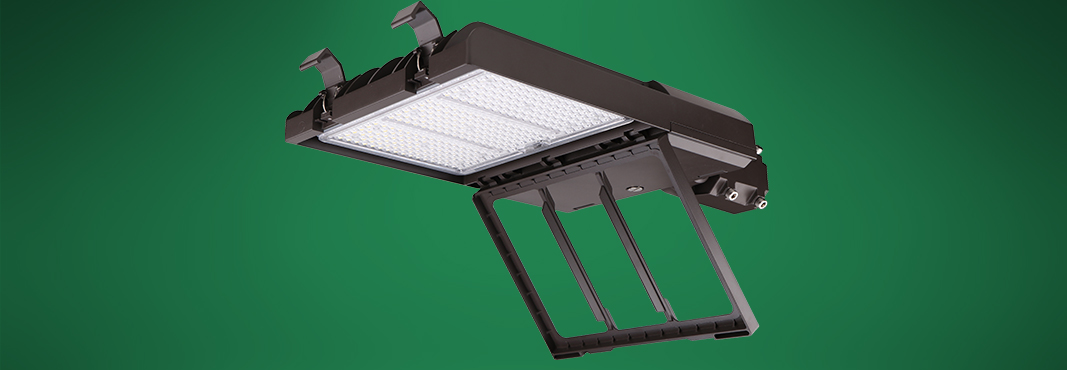

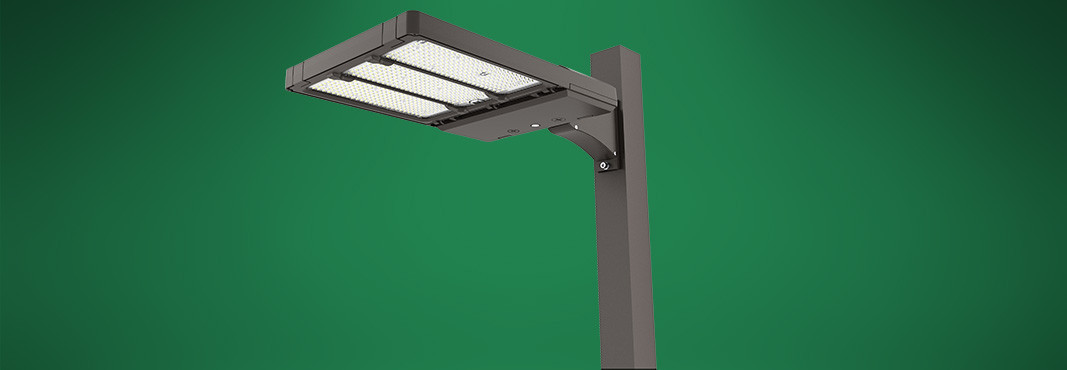

HARRIS Area Light Lumen Select, Gen 1 | ALLP1

  • Dark Sky Approved
  • DLC Premium
  • IP65
  • UL Listed
  • UL Wet Location


The ALLP1 is a cost-effective area light designed to offer optimal flexibility to the customer. The ALLP1 provides multiple combinations of options to maximize labor and energy savings. The ALLP1 Area Light provides uniform distribution for area and site lighting in retail, commercial, and residential applications including driveways and parking areas.



  • Type II, III, IV, and Type V light
  • Field selectable lumens provide
    a late point adjustment at the
    installation site
  • 12,000 to 42,000 lumens
  • Nine lumen packages
  • Tool-less field installable lens kit for Type II, III, IV, and Type V for each upgrade of light distribution in the field
  • Precision engineered lens made
    of optical grade polycarbonate
    for maximum light intensity
  • Anti-corrosion stainless steel

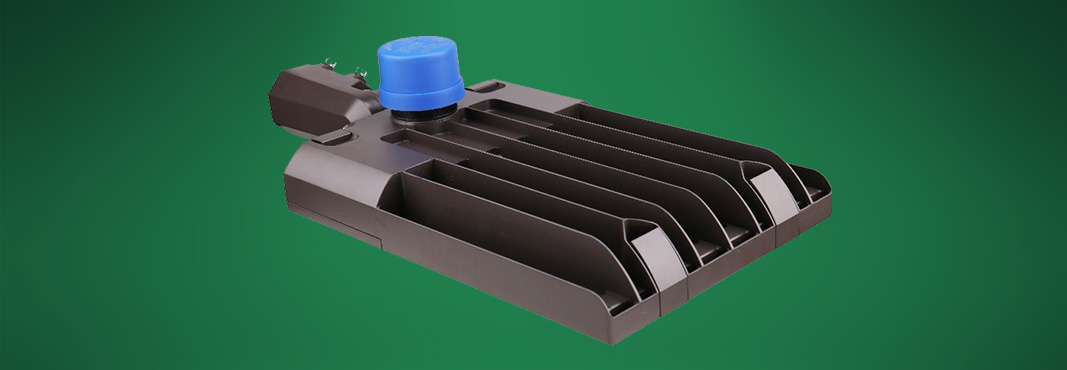

  • Heavy duty die-cast aluminum
    housing with external heat-sink
    for optimal thermal management
  • Fixture comes standard in bronze
  • Field selectable CCT between
    3000K, 4000K or 5000K
  •  Minimum 80 CRI
  • Efficacy up to 158 LPW


• Available in 120v-277v and 277v-480v
• 10kV/5kA Surge Protection Standard
• Power factor >0.90
• Total Harmonic Distortion < 20%

Operating Range

-40ºC to 50ºC (-40ºF to 122ºF)

Certification & Listings

• UL/cULus listed for wet locations
• IK08 Impact Rating
• IP65 Rated
• 3.0G Vibration load rating per ANSI C136.31
• Dark Sky Compliant. 3000K must be selected with direct pole mount to meet International Dark-Sky Association approval criteria

Rated Life

• Varies based on type. See data sheet for more information.
