HARRIS LED High Bay Harsh Applications, Gen 1 | AHHA1

  • DLC Standard
  • IP65
  • UL Listed
  • UL Wet Location

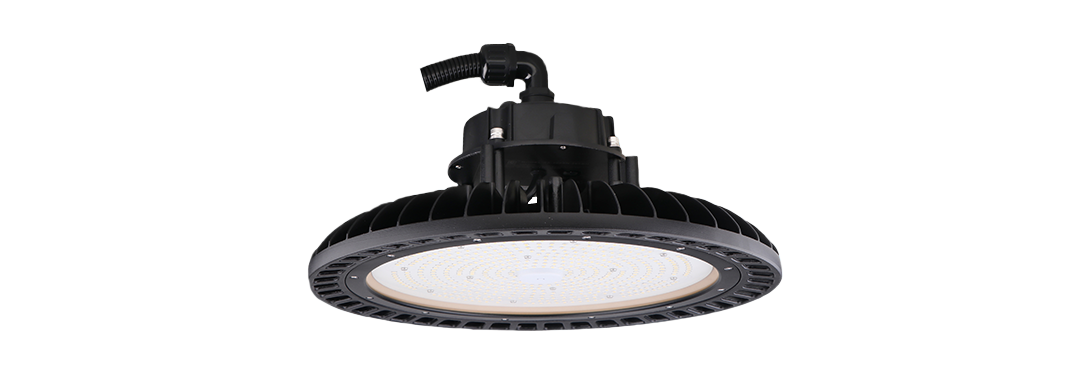

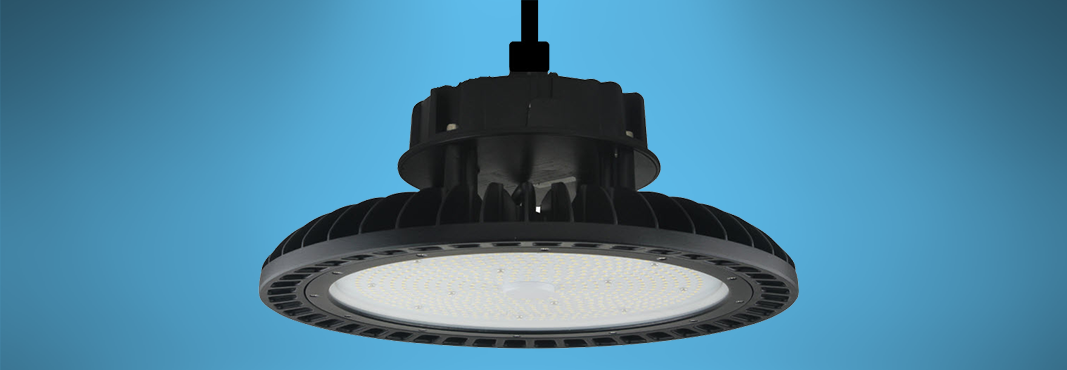

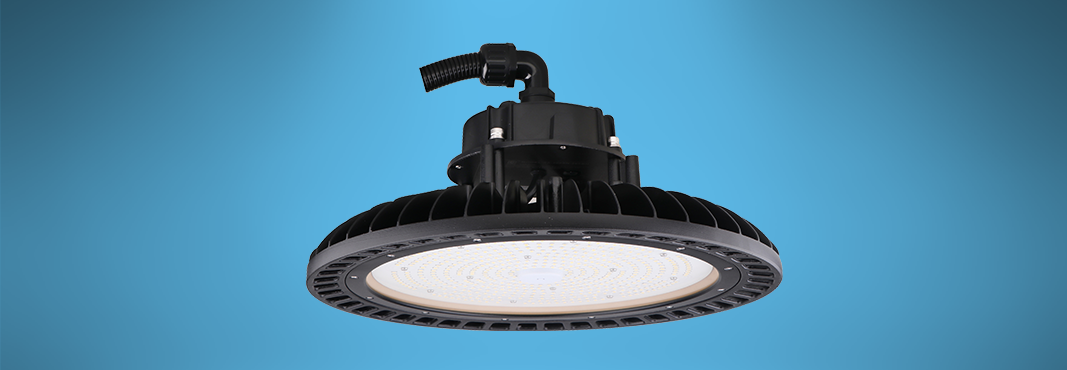

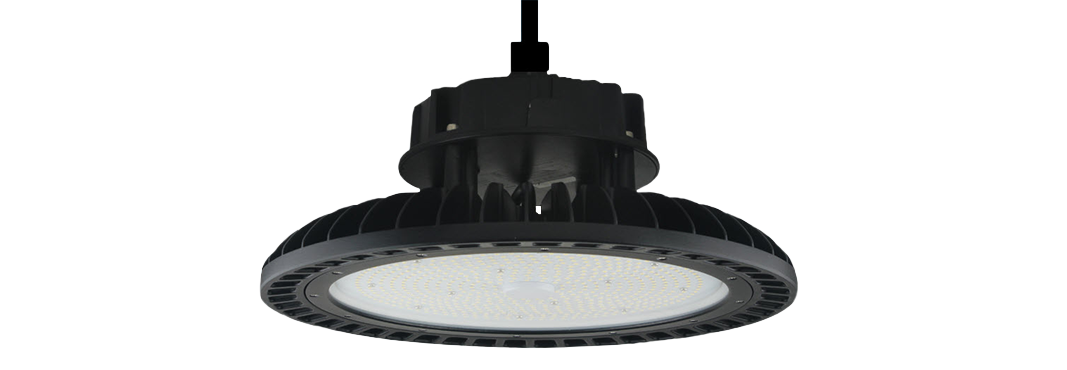

The AHHA1 is a round high bay designed for harsh industrial applications in agricultural, warehousing and manufacturing facilities. Low profile robust design makes this fixture ideal for application where chemicals, oils and solvents are used. This LED high bay delivers energy and maintenance savings over traditional HID and fluorescent fixtures.



• Highly resilient lens gasket made from Fluro-Elastomer FKM material. Best choice when dealing with aggressive chemicals, petroleum lubricants, and solvents in high temperature environment
• Die cast aluminum housing provides maximum heat dissipation for applications up to 50ºC • Tempered glass lens for maximum protection

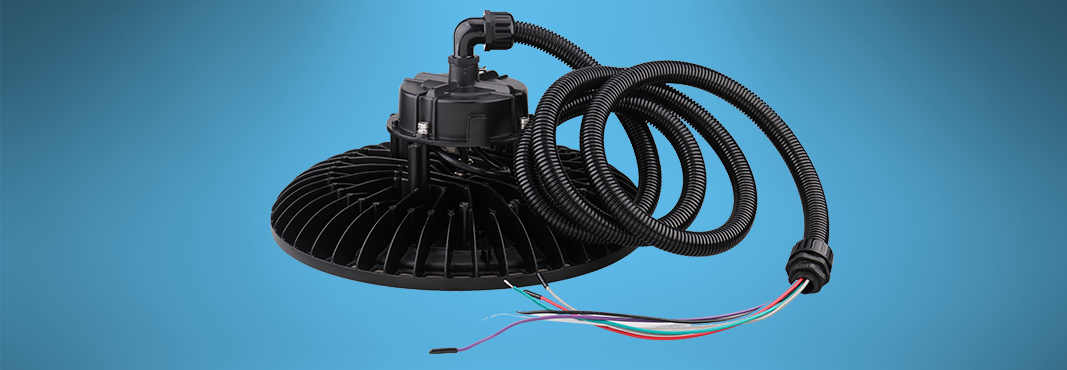

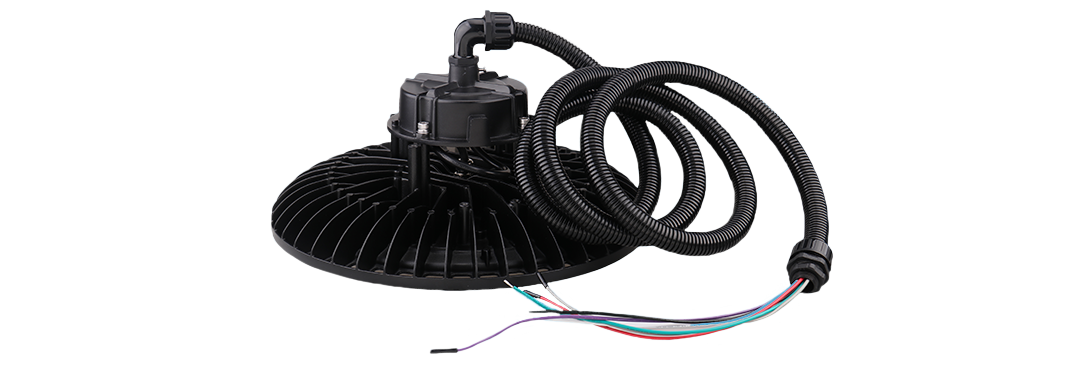

• 6' power supply wires comes standard on this fixture
• Mounting Installation: 1/2" NPT conduit pendent mount or flexible 1/2" non-metallic Conduit with nylon (PA6) that is highly resistant to solvents and oils

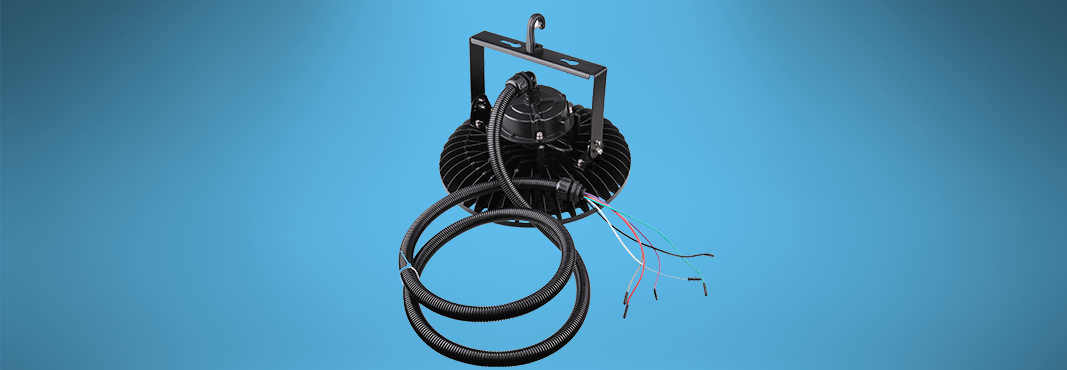

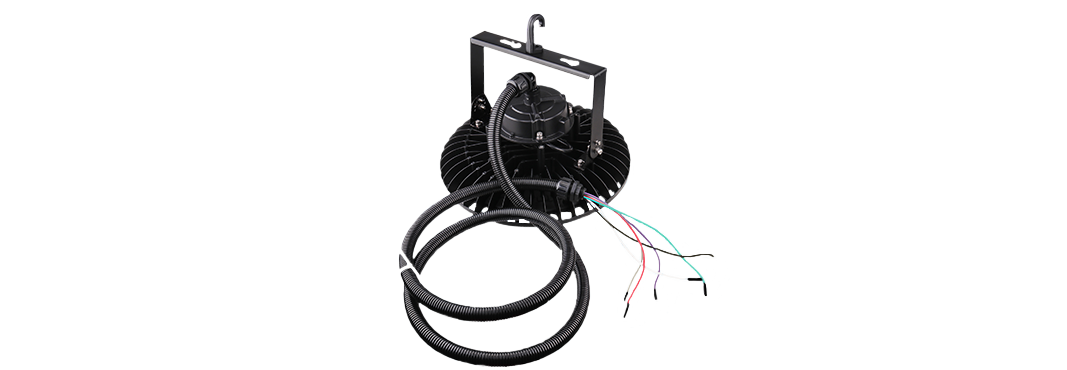

• Field-installed U-bracket for surface of pendent installation. • 6kV/3kA surge protection standard per ANSI C82.77-5 for industrial environments
• Black color is standard


• Available in 120v-347v
• Power factor > .90
• THD < 20%
• 0-10V dimming capability to 10%

Operating Range

• -25ºC to 50ºC (-13ºF to 122ºF)

Certifications & Listings

• cULus Listed
• UL wet rated
• IP65 rated
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
