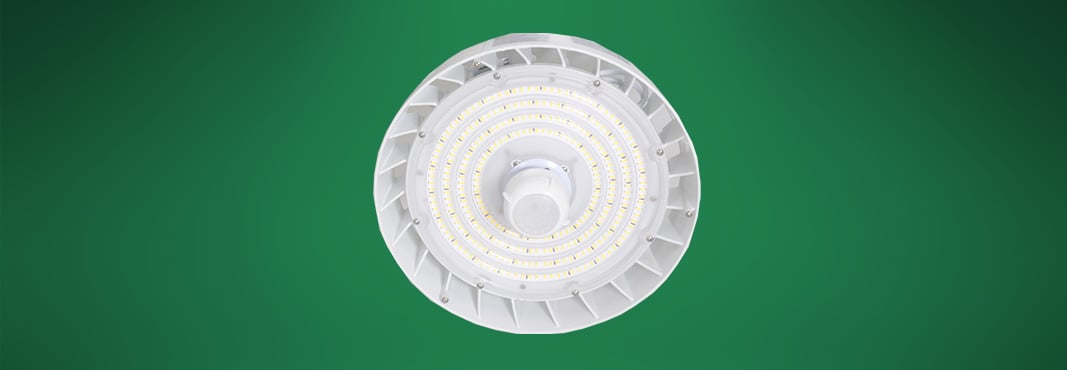

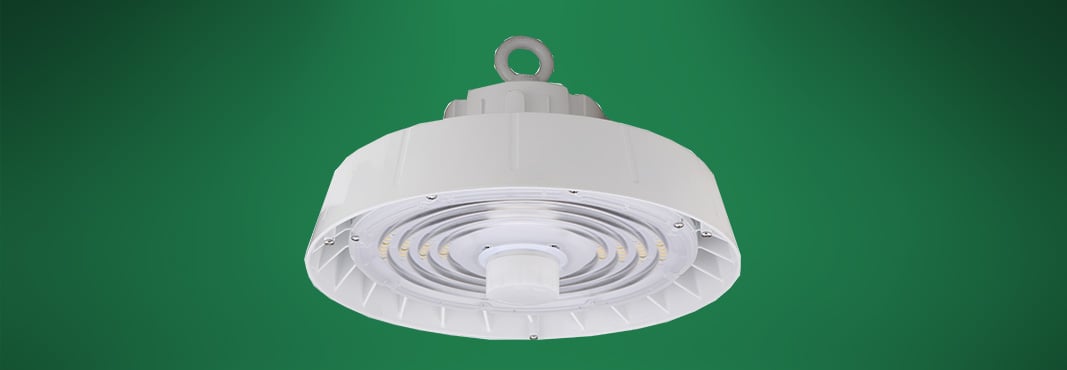

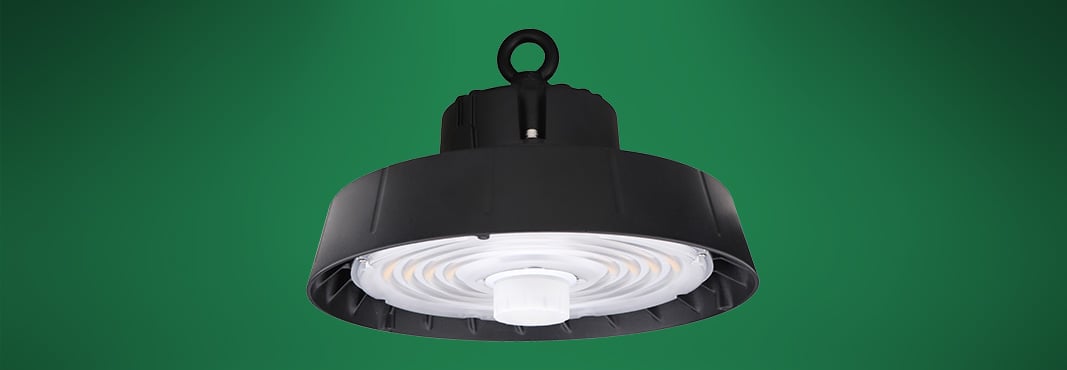

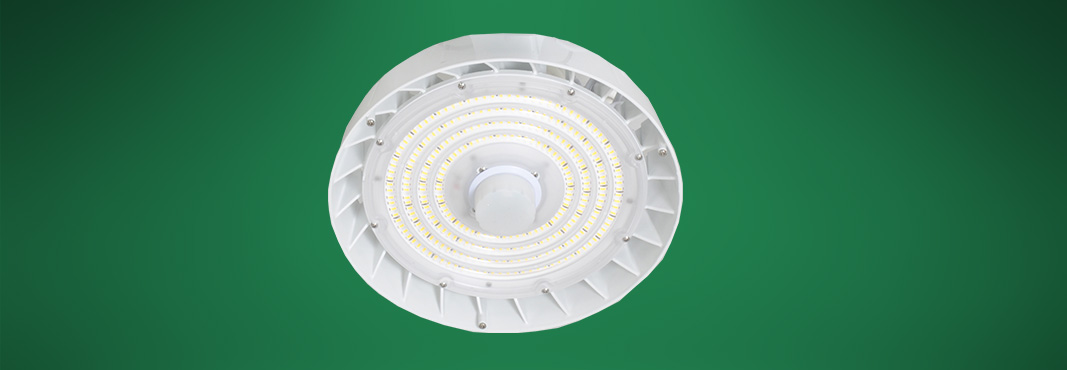

HARRIS LED High Bay UFO, Gen 4 | HHUF4

  • DLC Premium
  • IK10 Rated
  • IP65
  • NSF
  • UL Listed

Overview

An NSF/ANSI Standard 2 product, the Harris HHUF4 is ideal for a wide array of applications including harsh environments in agricultural, industrial and manufacturing. When used with the refractor lens option it provides great up lighting for retail applications. The HHUF4 delivers energy and maintenance savings over traditional HID and fluorescent fixtures.

Specifications

Features

• Standard 90º Beam angle lens to minimize glare while meeting DLC Premium - UGR limits
• Polycarbonate lens provides ideal distribution
• Die cast aluminum housing provides maximum heat dissipation
• 6' whip power supply comes standard
• Eye bolt comes standard
• Tandem Mount Bracket option to meet higher lumen applications, up to 70,000 lumens
• White fixture color is standard, other colors available
• Multiple mounting methods available

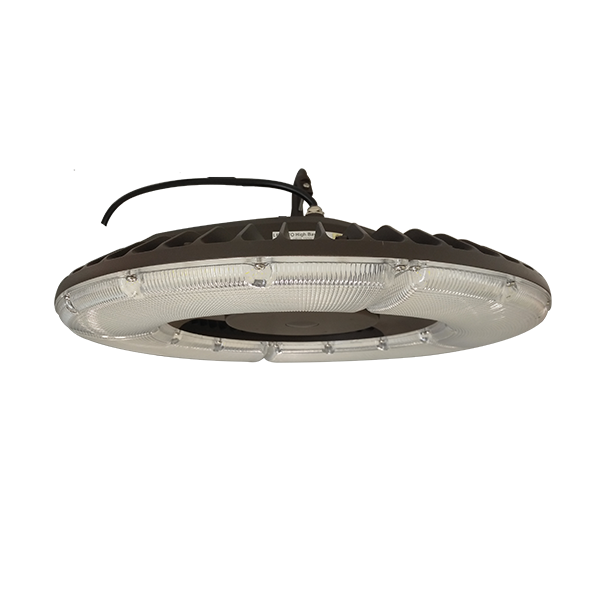

• Reflector or refractor available
• Field installed Battery Back Up available

Electrical

• Available in 120v-277v and 277v-480v
• 6kV/3kA surge protection standard per ANSI C82.77-5. 20kV/10kA additional surge protection available
• Power Factor >0.9
• Total Harmonic Distortion < 20%*
*Note: Varies based on option

Operating Range

• Varies depending on type. See data sheet for more information.

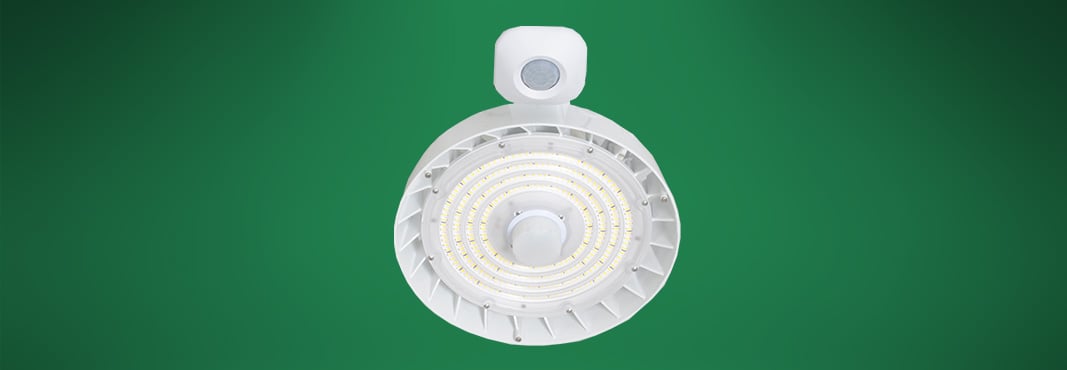

Control & Sensor Options

• Control and sensor options are available to be installed in the field
• Remote programming sensors
•Remote programming sensors with zoning
• On site network programming
• Internet/Cloud based network programming

Certifications & Listings

• NSF/ANSI Standard 2
• cULus listed
• UL wet location listed
• IP65 rated
• IK10 impact rating (fixture only)
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
