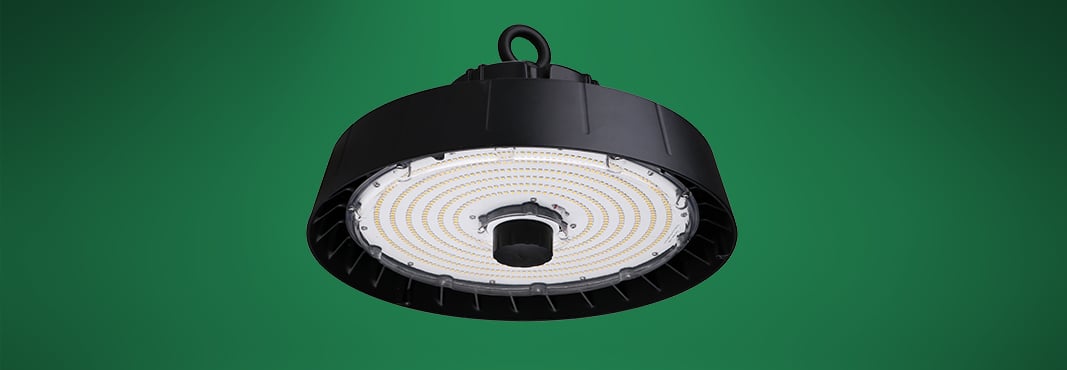

HARRIS LED High Bay UFO, Gen 3 | HHUF3
Overview
Specifications
Features
• Tandem Mount Bracket option to meet higher lumen applications, up to 70,000 lumens
• Die cast aluminum housing provides maximum heat dissipation

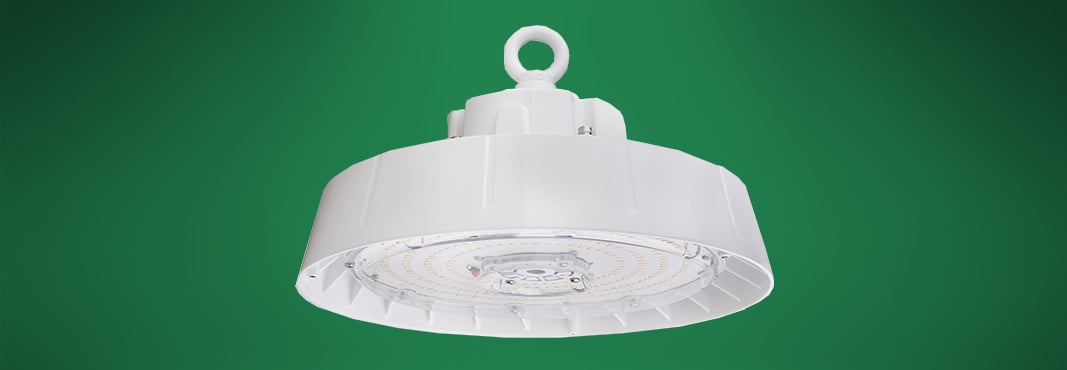

• White color is standard
• Polycarbonate lens provides ideal distribution and minimizes glare
• 6kV/3kA surge protection standard per ANSI C82.77-5. 20kV/10kA additional surge protection available
• 6' whip power supply comes standard • Multiple mounting methods available. Eye bolt comes standard
• Multiple fixture control options
Electrical
• Available in 120v-277v and 277v-480v
Operating Range
• -40ºC to 50ºC (-40ºF to 122ºF)
Certifications & Listings
• NSF/ANSI Standard 2
• cULus listed
• UL wet location listed
• IP65 rated
• IK10 impact rating (fixture only)
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models
Rated Life
• Varies depending on type. See data sheet for more information.
