TritonPro™ LED Troffer Retrofit Selectable, Gen 3 | LDRES3
Overview

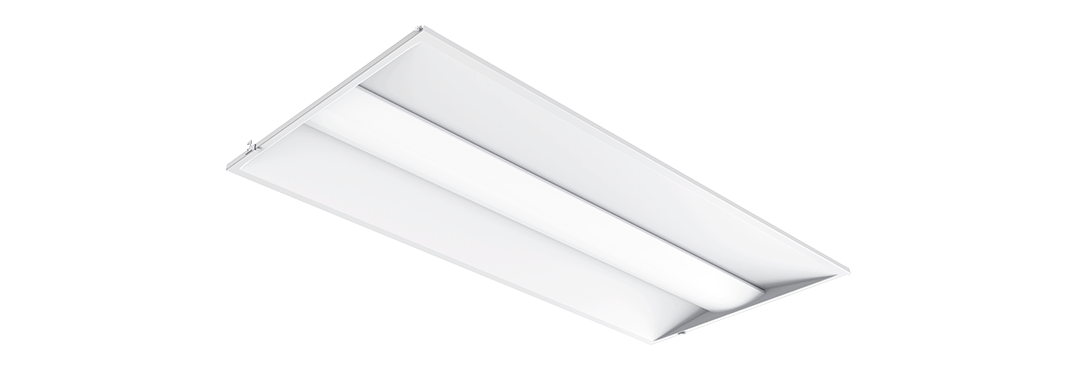

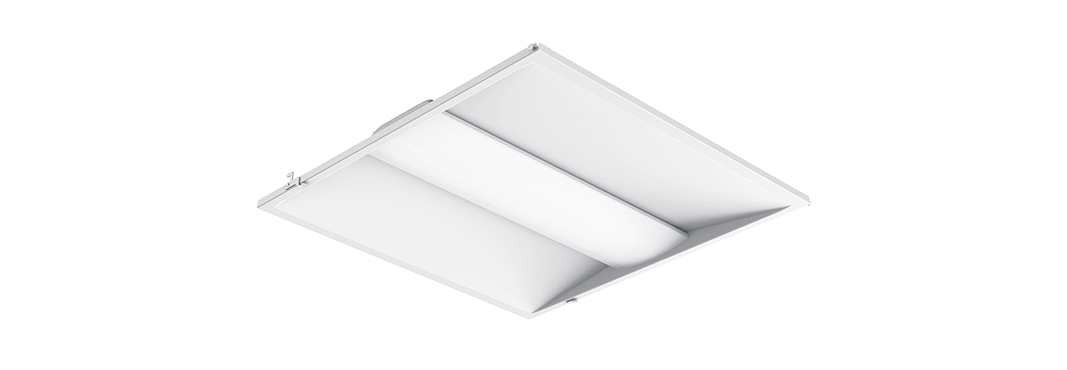

The TritonPro™ LED Troffer Retrofit Selectable, Gen 3 is designed for swift and seamless installation - taking only a few minutes - causing minimal disruption to the workplace. This innovative fixture effortlessly fits into existing 2’ x 2’ and 2’ x 4’ fluorescent troffer housings, transforming your lighting system with ease. Enjoy the benefits of enhanced energy efficiency, longer lifespan, and improved lighting quality with this ideal retrofit solution.
Specifications
Features
• Easily accessible dip switches allow the user to select CCT and lumen output providing flexibility to adapt to different work environment dynamics
• Field adjustable CCT (3500K/4000K/5000K); 80 CRI standard; three adjustable lumen outputs
• Fits most existing fluorescent troffer fixtures with either prismatic lens or parabolic louvers
• 2' x 2' or 2' x 4' white painted steel body

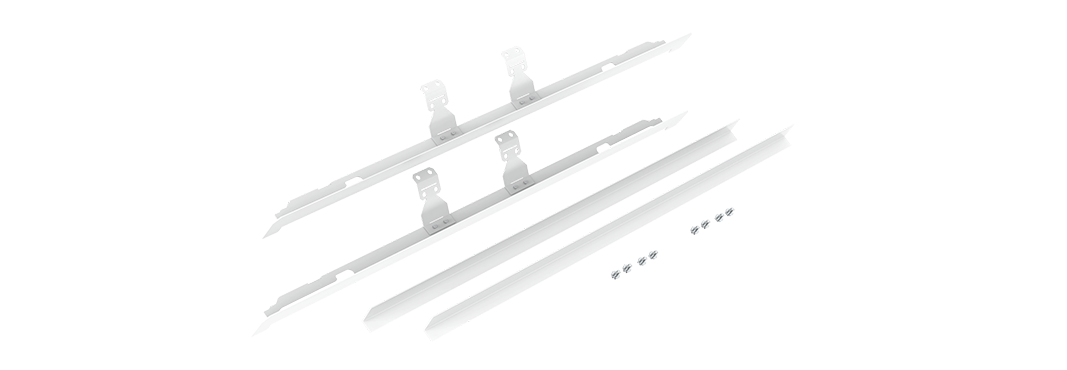

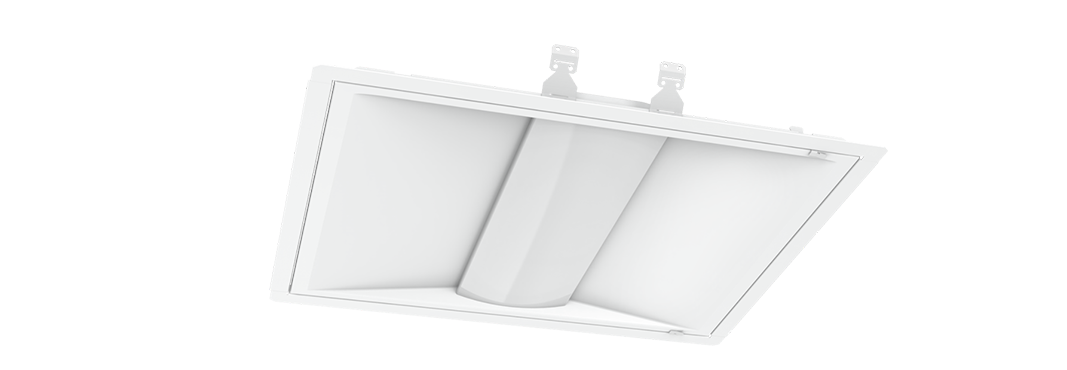

• Bracket system allows for quick installation in the field
• Mounting brackets ship standard with fixture from the factory
• Uniform light distribution across the lens provides better visual comfort for users
• Ships 2 per pack
• Minimum 80 CRI
Electrical
• Available in 120v-277v
• Standard 0-10v dimming driver, with 12v auxiliary output
• Power factor > .90
• THD < 20%
Operating Range
• -20°C to 40°C (-4°F to 104°F)
Certifications & Listings
• UL Classified
• Suitable for Damp Locations
• DesignLights Consortium™ premium qualified luminaire
• DesignLights Consortium™ standard qualified luminaire
Rated Life
• Varies based on type. See data sheet for more information.
Photometric Tool
Rebate Finder and Payback Calculator
