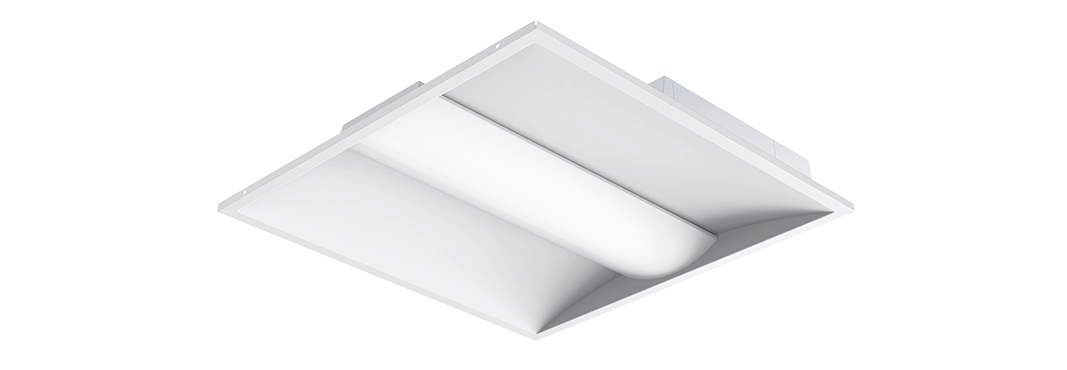

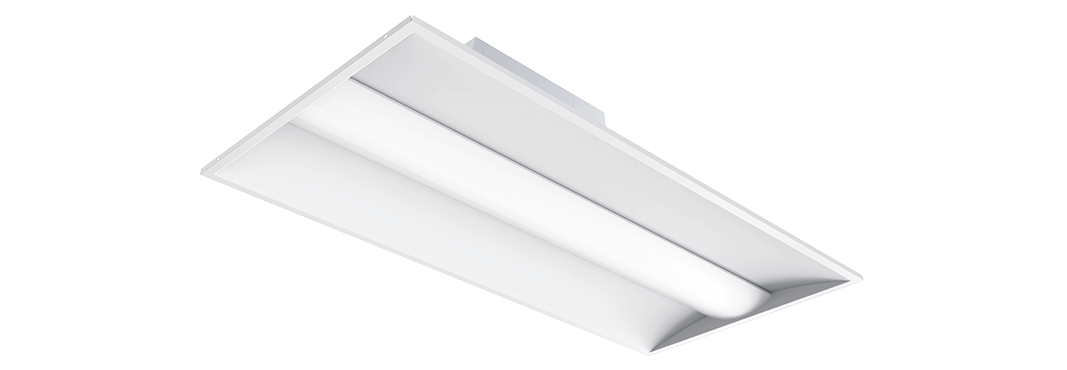

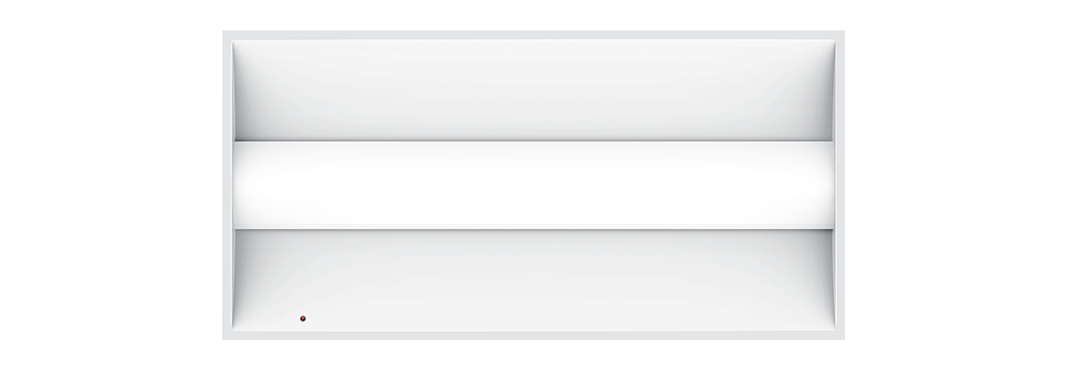

TritonPro™ LED Troffer Lumen Selectable, Gen 3 | LTHES3
Overview
The TritonPro™ LED Troffer Selectable, Gen 3 is the ideal recessed lay-in troffer lighting solution for commercial spaces, offices, educational institutions, healthcare facilities, and any location with a T-Bar lay-in grid in 2' x 2' and 2' x 4' sizes.
This cost-efficient troffer not only delivers superior, even light distribution but significantly enhances energy savings compared to traditional fluorescent troffers while reducing operating costs, improving visual comfort and increasing sustainability.
Specifications
Features
• Easily accessible dip switches allow the user to select CCT and lumen output providing flexibility to adapt to different work environment dynamics
• Select between three CCT (3500K/4000K/5000K) and three lumen outputs
• Low profile steel construction design with powder coat finish
• 2' x 2' and 2' x 4' fixture sizes
• Fits into standard 9/16" and 15/16" T-bar grid and recessed ceilings
• Ships 2 per pack
• Minimum 80 CRI
Electrical
• Available in 120v-277v
• Standard 0-10v dimming driver, with 12v auxiliary output
• Power factor > .90
• THD < 20%
Operating Range
• -20°C to 40°C (-4°F to 104°F)
Certifications & Listings
• cULus Listed
• UL/cUL Listed for Damp Locations
• Certified for insulated plenums (type IC)
• DesignLights Consortium™ premium qualified luminaire
• DesignLights Consortium™ standard qualified luminaire
Rated Life
• Varies based on type. See data sheet for more information.
