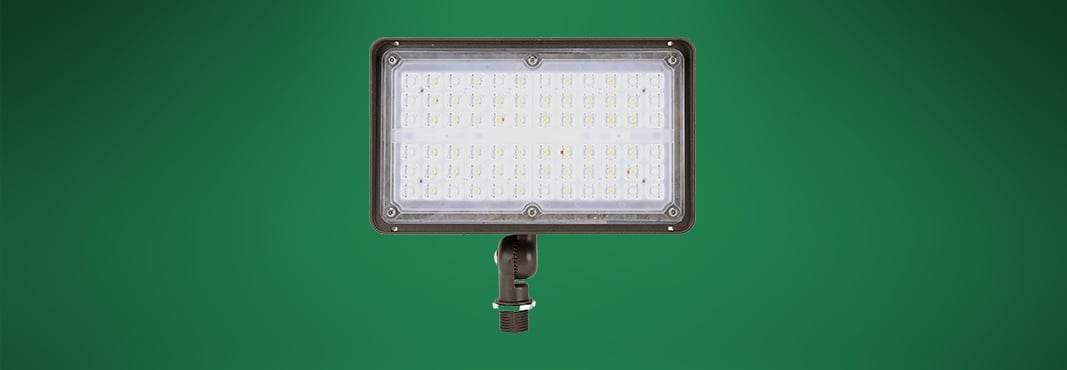

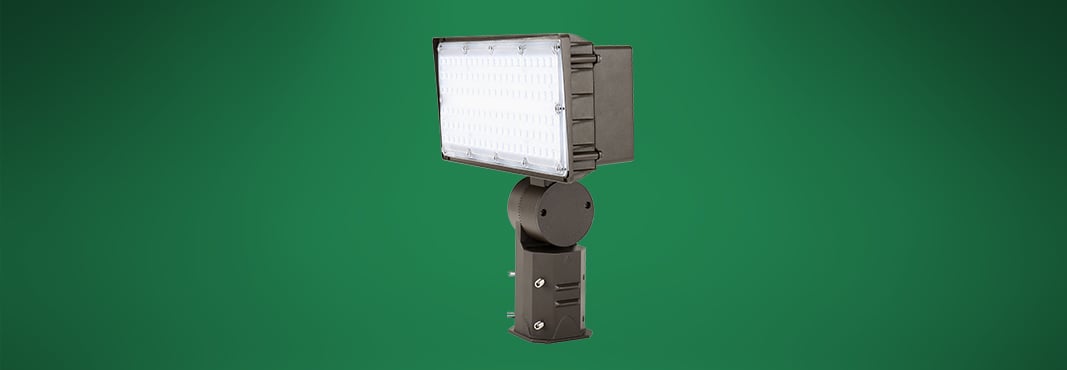

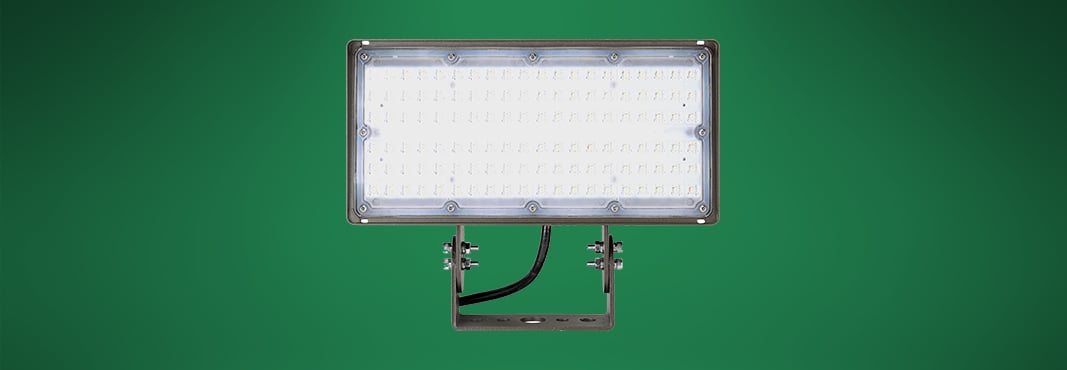

HARRIS LED Architectural Flood Light, Gen 3 | FLGA3
Overview
The Harris FLGA3 is a cost effective and high performance family of flood luminaires. The family includes eight different lumen outputs to meet most exterior requirements for parking lots, driveways, walkways, and building exteriors. Ideal to replace any existing HID floods and deliver exceptional energy savings.
Specifications
Features
• Die-cast aluminum powdered coated construction to withstand outdoor environments• Standard 10kV/5kA Surge Protection
• Housing is designed to isolate LED from driver in order to maximize the life and performance
• Extruded silicone gasket provides sealed housing to meet wet rated standards
• High performance acrylic optics offer NEMA Type Optics 7Hx6V
• Door frame features accessory channel for mounting of optional photocell
Electrical
• Available in 120v-277v, 347v-480v input range
• Non-dimming up to 7,000 lumens
• Continuous full dimming 1-10v for 7,000 lumens and above
• Power factor >0.90
• Total Harmonic Distortion < 20%
Operating Range
-40ºC to 45ºC (-40ºF to 113ºF)
Certification & Listings
• UL/cULus listed for wet locations
Rated Life
• Varies based on type. See data sheet for more information.
Photometric Tool
Related Products

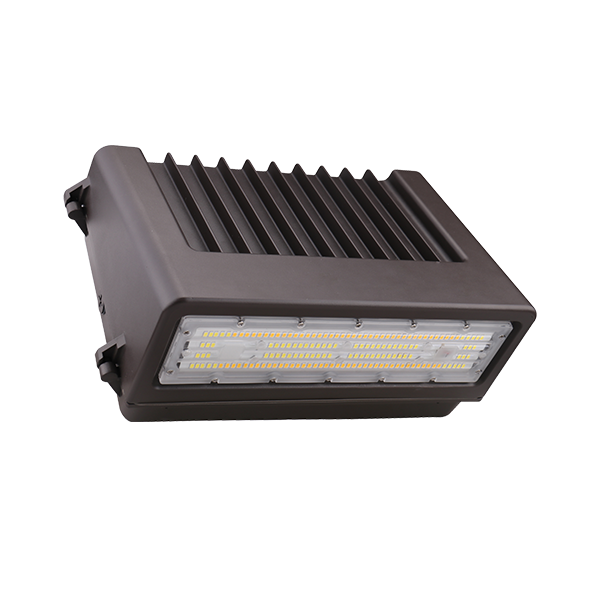

HARRIS Lumen Select Wall Pack Full Cutoff, Gen 1 | LSWF1
