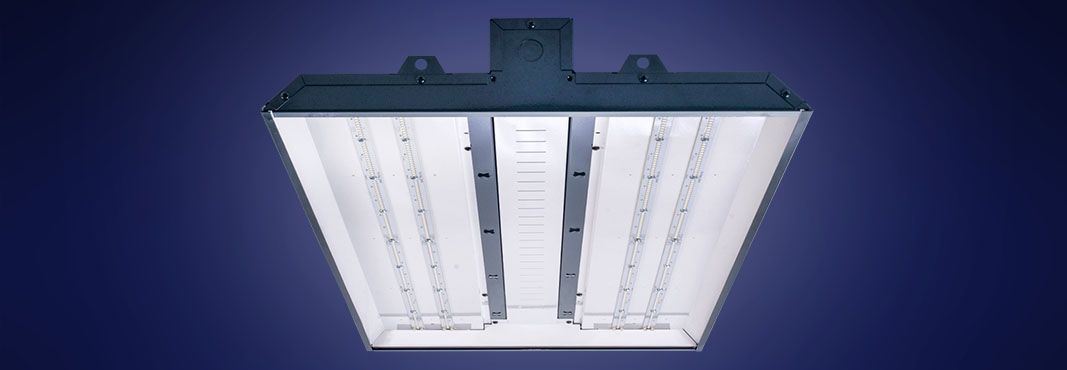

ISON™ LED High Bay, Gen 3 | HBIF3

Overview

The ISON HBIF3 is an industry leader in meeting high bay and low bay illumination requirements for industrial, warehouse, manufacturing, commercial, wholesale, and retail applications. With best in class “Lumen per Watt Performance” one can expect maximized energy savings, which will lead to the lowest total cost of ownership for high bay illumination. Awards: • IES Progress Report Luminaire Category Selection 2017 • Electrical Construction & Maintenance (EC&M) Product of the Year Winner - Luminaire Category 2017 • Consulting-Specifying Engineer (CSE) Product of the Year Finalist Lighting and Luminaire Category 2017 • LED Magazine Sapphire Award Finalist - Industrial SSL Design Category 2017 • Plant Engineering’s Product of the Year Finalist 2016

Specifications

Features

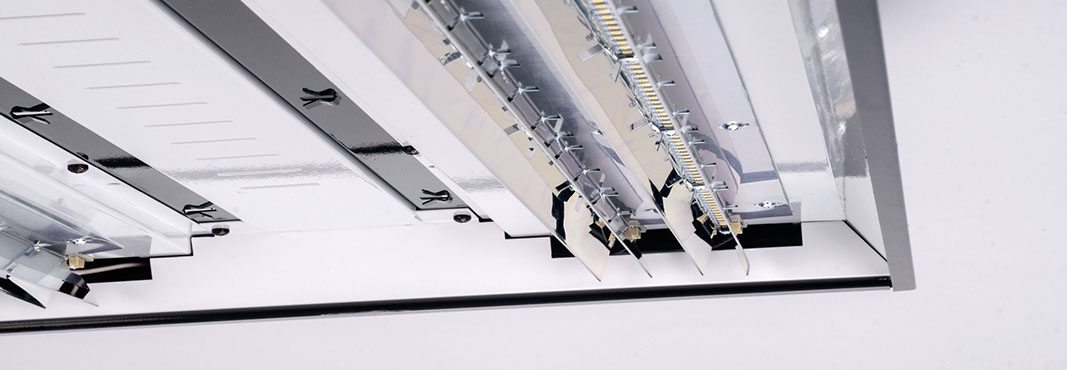

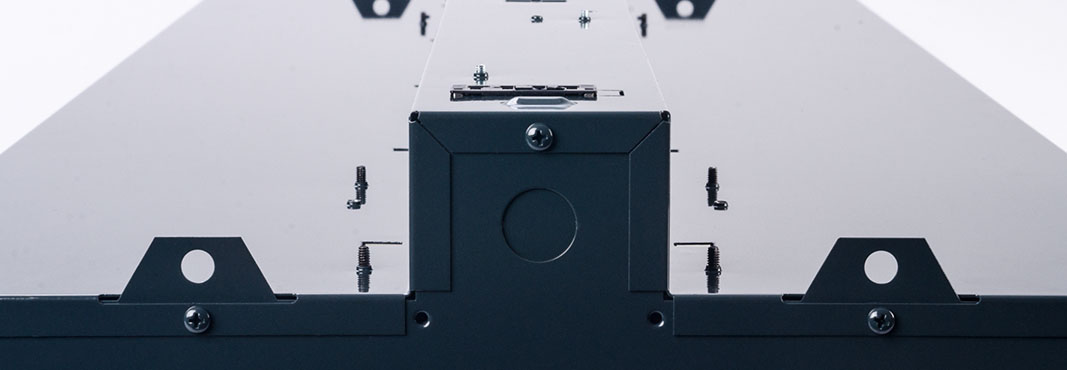

• Future-proof modular design allows for easy access to components and is upgradeable for performance enhancements. LED panel allows interchangeability between open or aisle light distribution
• Superior thermal management leads to longer life and enhanced performance
• Lens options: Acrylic frosted lens that provides glare control to enhance low bay applications. Also available in a polycarbonate clear lens for dusty environments

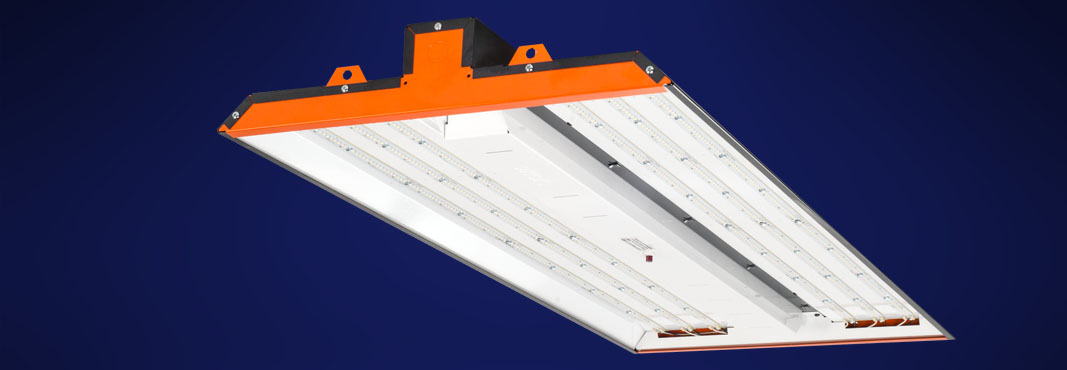

• Emergency fixture identifier option available. End caps painted OSHA orange for easy identification from the floor. Commonly used on fixtures with battery backup and fixtures connected to an emergency circuit
• 10 kA Surge protection available

Electrical

• Available in 120v-277v, 347v and 480v
• Factory wired for full dimming (0-10v) or ON/OFF applications

Operating Range

• Varies depending on type. See data sheet for more information

Certifications & Listings

• Patented modular design
• UL/cUL listed for damp locations
• Buy American Act compliant
