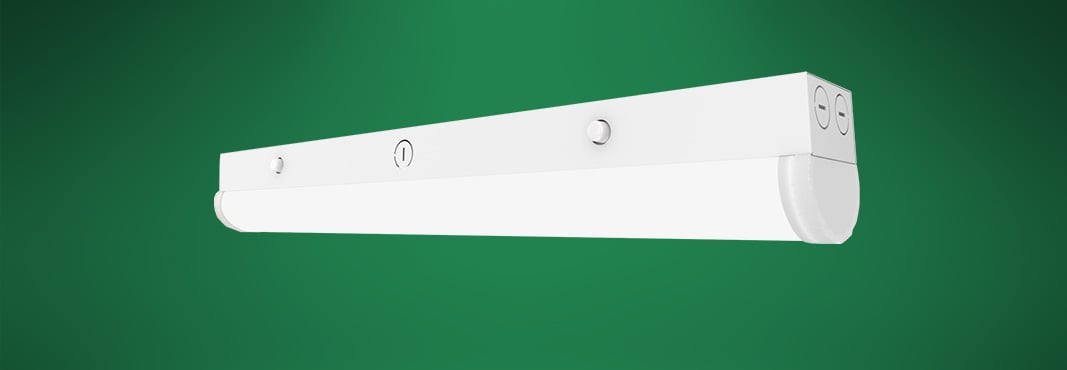

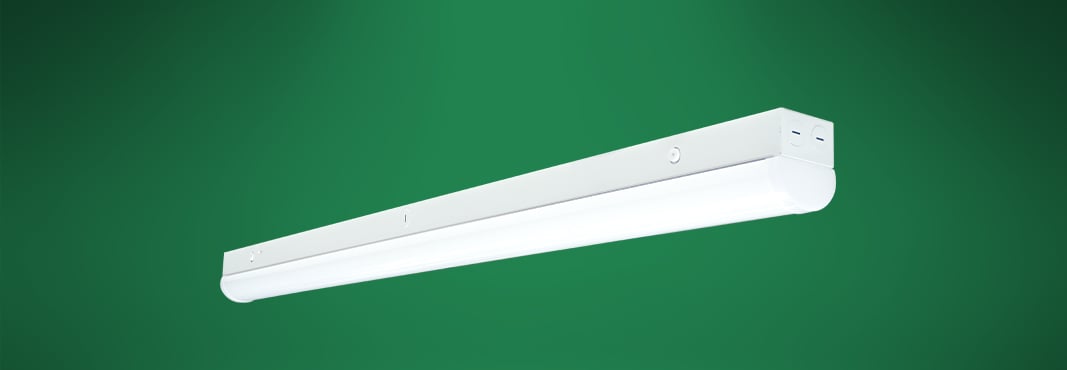

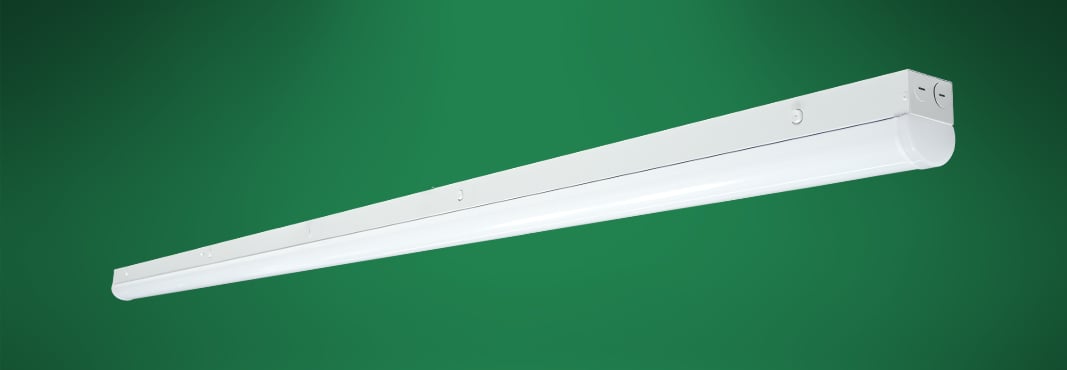

HARRIS LED Quick Access Strip, Gen 1 | HQAS1

Features

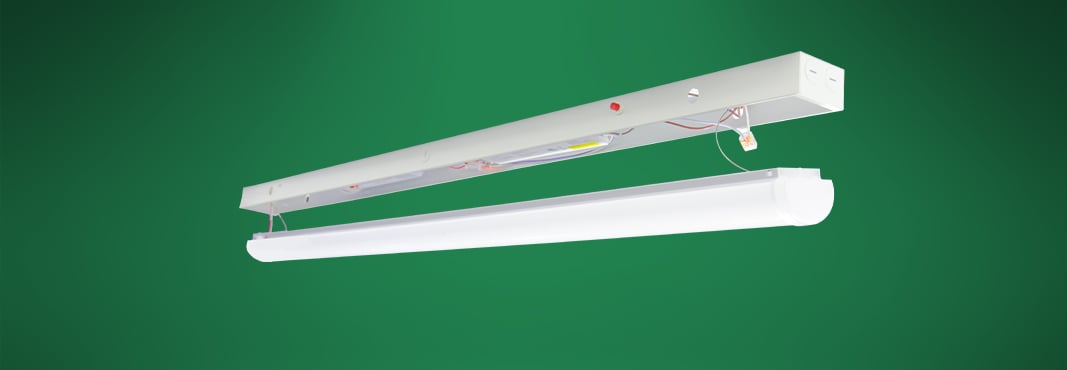

• Quick access to fixtures components with spring loaded buttons for easy maintenance and installation
• Field adjustable CCT from 3500K, 4000K, or 5000K using dip switch
• Hanging cables attach fixture lens to fixture housing for easy one person installation
• Multiple knockout locations on the side and back of fixture for ease of installation, maintenance and wiring
• Offered in both 4' and 8' fixture lengths
• Suspended or surface mounting methods
• Continuous run surface and suspended mounting brackets available
• Translucent end caps option for continuous run for seamless look and feel
• Polycarbonate frosted lens
• Factory installed Battery Back Up available in 8w, Certified in CA Title 20

Electrical

• Available in 120v-277v
• Standard 0-10v dimming drivers
• Power factor >0.9*
• Total harmonic distortion < 20%*
*Note: Varies based on option

Operating Range

• -20°C to 40°C (-4°F to 104°F)

Control & Sensor Options

• Factory installed control and sensor options
• Control and sensor options are available to be installed in the field
• Manual Programming Sensors

Certifications & Listings

• cULus listed
• UL damp listed
• DesignLights Consortium™ Standard qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies depending on type. See data sheet for more information.
