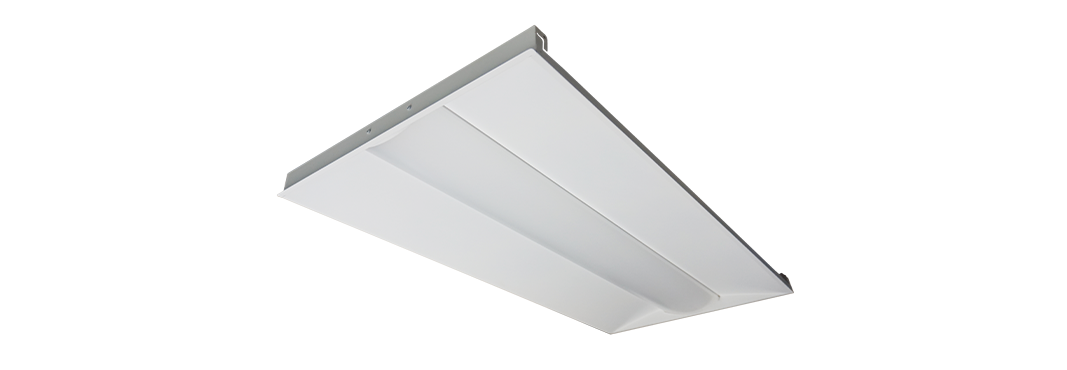

TritonPro™ LED Troffer Lumen Select, Gen 2 | LTHES2

  • DLC Premium
  • UL Listed

Overview

Recessed lay-in troffer that is ideal for commercial, office, retail, education, healthcare or anywhere T-Bar lay-in grid is found. Available in 1' x 4', 2' x 2', and 2' x 4'. Cost-efficient troffer that provides even light distribution and improved energy savings over commonly used fluorescent troffers.

Specifications

Features

• Easily accessible dip switches
allow the user to select CCT and
lumen output in the field providing
flexibility to adapt to different work
environment dynamics
• Select between three CCT
(3500K/4000K/5000K) and three
lumen outputs
• Low profile steel construction
design with powder coat finish
• 1' x 4', 2' x 2' and 2' x 4' fixture
sizes
• Acrylic frosted contour lens
reduces glare in the work
environment. Meets DLC premium
glare requirement
• Fits into standard 9/16" and 15/16"
T-bar grid and recessed ceilings
• Ships 2 per pack and must be
ordered in quantities of 2
• Minimum 80 CRI

Electrical

• Available in 120v-277v
• Standard 0-10v dimming driver
• Power factor > .90
• THD < 20%

Operating Range

• -20°C to 50°C (-4°F to 122°F)

Certifications & Listings

• UL/cUL Listed
• UL Damp Listed
• DesignLights Consortium™ Premium qualified luminaire
• Visit the DLC QPL for listed models

Rated Life

• Varies based on type. See data sheet for more information.
